DESCRIPTION
Warsaw tram opened in 1866 (horse tram) and from that date it has been continuously in service; tram was totally electrified in 1908. The current tram network includes 28 ordinary tram lines, plus a fast LRT line (Warszawska Kolej Dojazdowa/WKD).
WKD is a light rail line opened in 1925, which runs from east (Warszawa Srodmiescie, close to the Central Railway Station) to south/west connecting Warsaw city centre with its western metropolitan agglomerations (Michalowice, Pruszkow, Brwinow, Podkowa Lesna, Milanowek e Grodzisk Mazowiecki). WKD runs partly underground in the city centre (parallel to PKP rail tracks), then it procedees ground level to the western suburbs.
(last modified February 19, 2017 )
HISTORY
datesection nameline
1866initial horse tram opening--
1908electrification completed--
1925Warszawska Kolej Dojazdowa openingWKD
21-01-2013Zajezdnia Zoliborz-Stare Swidry--
24-12-2014Stare Swidry-Tarchomin Koscielny--
14-02-2015Bemowo Ratusz-Radiowa--
2016WKD voltage converted from 3000 V DC to 600 V DCWKD
27-02-2017Mehoffera-Nowodwory--
(last modified June 25, 2018 )
TECHNICAL DATA
Single line length (Km)
tram: 124
WKD: 33
Single line stops
tram:--
WKD:20
Single line avg. distance (km)
tram:--
WKD: 1.65
Total track length (km)
157
Total network stops
--
Avg. stop net distance (km)
--
Type
steel wheels
Current/Voltage
600 V DC overhead
Guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
tram: KONSTAL,PESA
WKD: ENGLISH ELECTRIC
Model
tram: 105Na,HCP 123N,112N,116N/116Na,120N,120Na(Swing),128N(Jazz Duo),134N
WKD: EN95,EN97,EN100
Operator
tram: TRAMWAJE WARSZAWSKIE
WKD: WARSZAWSKA KOLEJ DOJAZDOWA
(last modified February 19, 2017 )

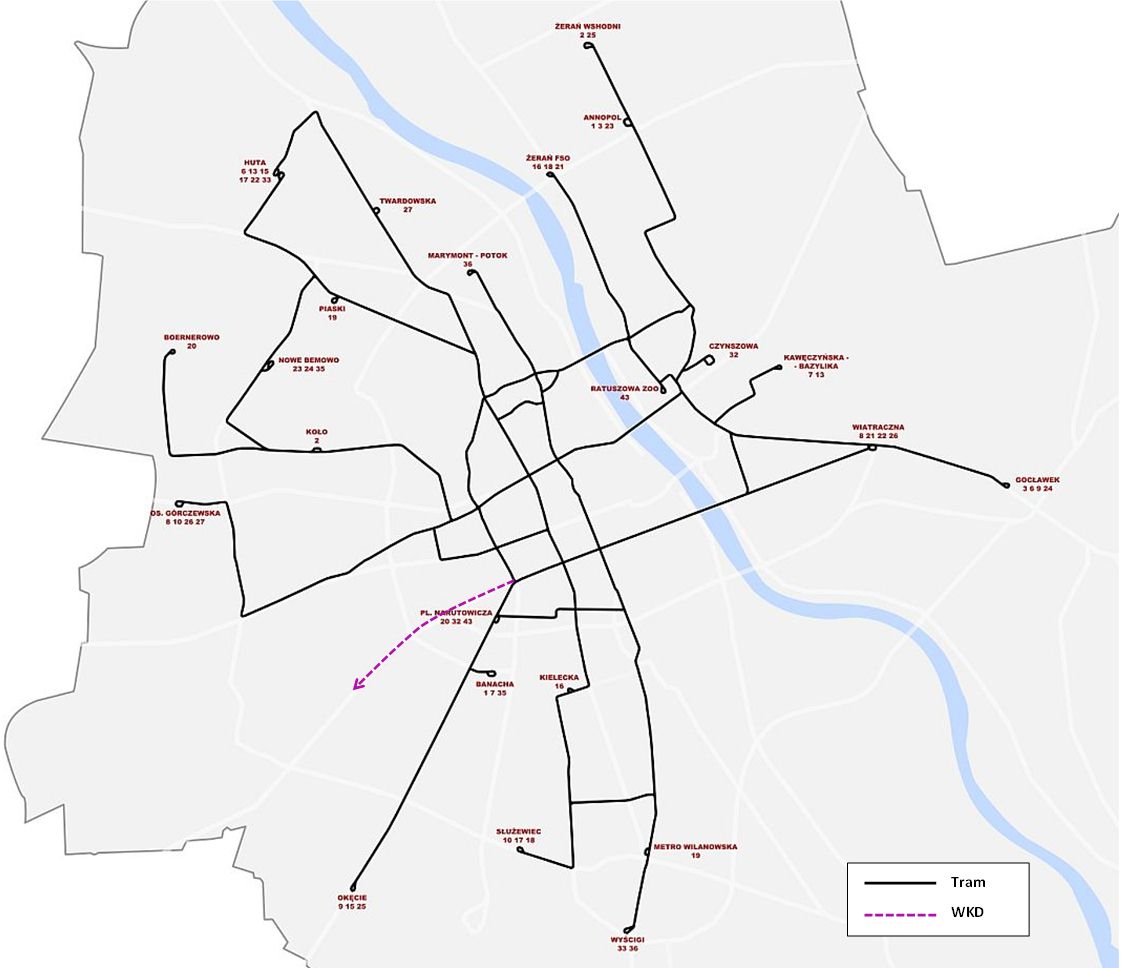

This image is shown smaller (800 x 690 pixels) than its maximum size (1121 x 968 pixels)
Please click on the map to enlarge it to its maximum size


lrt-tram - warsaw; Source: metrotram.it (original image [Warsaw tram network] By Jurij (Own work) [GFDL (http://www.gnu.org/copyleft/fdl.html), CC-BY-SA-3.0 (http://creativecommons.org/licenses/by-sa/3.0/) or CC BY-SA 2.5-2.0-1.0 (http://creativecommons.org/licenses/by-sa/2.5-2.0-1.0)], via Wikimedia Commons)
report an error

search a city

LATEST UPDATES TO THIS SITE
apm19-02-2017
lrt-tram27-06-2018
metro26-06-2018
funicular20-02-2017
news20-02-2017

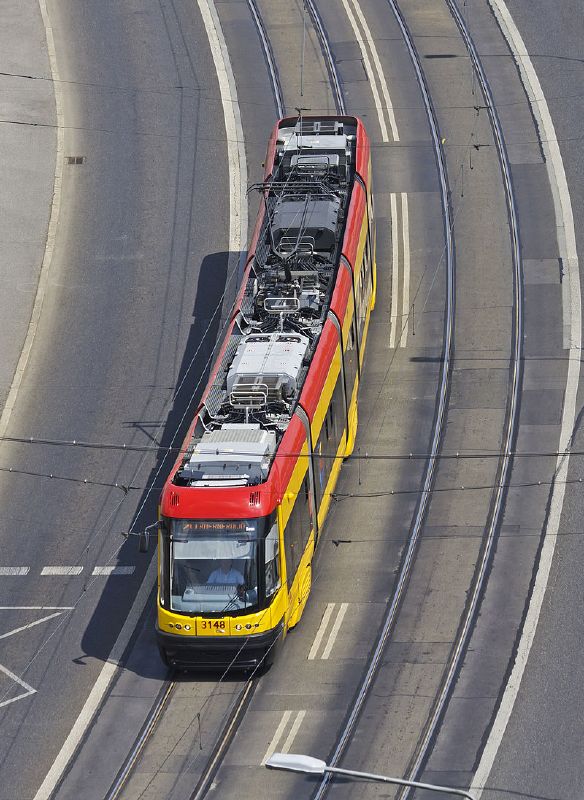

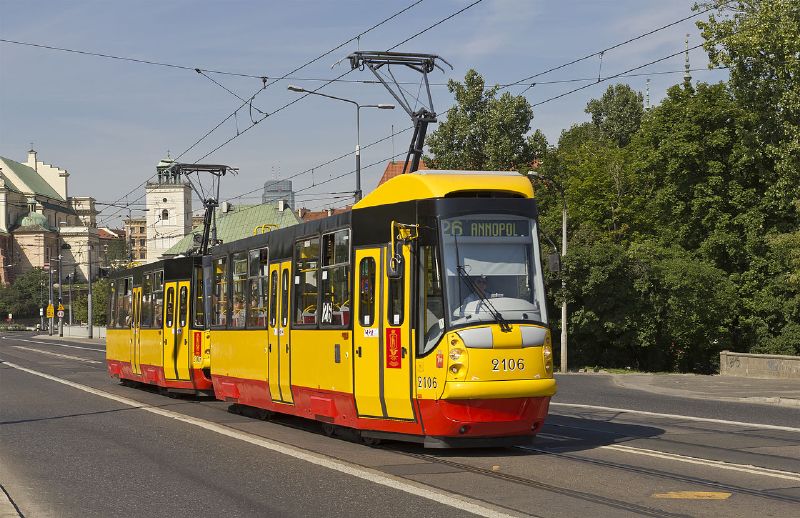

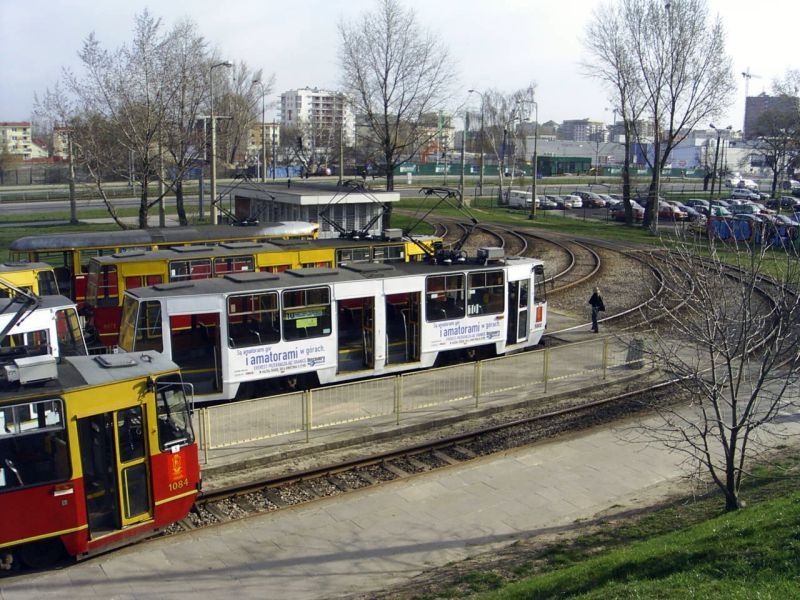

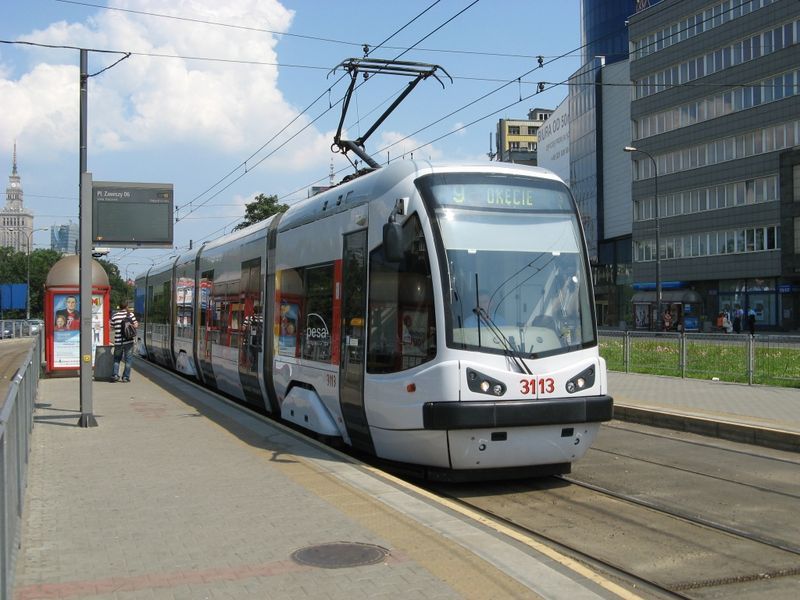

LRT-TRAM Warsaw PHOTO
