DESCRIPTION
Gothenburg tram opened in 1879 (initial horse tram) and from that date it has been continuosly in service; electrification was completed in 1902. The tram system was constantly extended (1944, 1953, 1957, 1959, 1962-1964, 1966, 1968-1970, 1092, 1978-1979, 1982; last extensions opened in 2002 and 2014). During years '60s it was planned to gradually convert the tram system into a LRT/fast tram (similar to premetro/stadtbahn); thus many tram section currently runs segregated from road traffic (in reserved lanes or through limited tunnel segments).
The current tram network consists in 13 ordinary lines, plus an heritage tram line (Lisemberg Line).
(last modified February 19, 2017 )
HISTORY
datesection nameline
1879initial horse tram opening--
1902electrification completed--
26-06-1944Vagmastareplatsen-Wieselgrensplatsen--
13-06-1953Wavrinskys plats-Doktor Sydows gata--
01-08-1955Wieselgrensplatsen-Eketragatan-Londongatan--
20-05-1957Bellevue-Allhelgonakyrkan-Aprilgatan--
15-06-1959Eketragatan-Vaderilsgatan--
09-04-1962Linneplatsen-Marklandsgatan--
12-06-1962Hogsbogatan-Marklandsgatan--
11-11-1963Marklandsgatan-Axel Dahlstroms torg--
16-03-1964Axel Dahlstroms torg-Frolunda torg--
07-12-1964Vaderilsgatan-Varmfrontsgatan--
17-06-1966Frolunda torg-Opaltorget--
04-11-1968Eketragatan-Londongatan closed--
27-12-1969Angered Line: Centralstationen-Alelyckan--
01-12-1969Angered Line: Alelyckan-Hjallbo--
06-04-1970Allhelgonakyrkan-Komettorget--
09-04-1972Angered Line: Hjallbo-Storas--
17-09-1972Angered Line connected to rest of network at Gamlestadstorget--
02-10-1978Angered Line: Storas-Angered centrum--
18-06-1979Angered Line connected to rest of network at Centralstationen--
03-10-1982Munkebackstorget-Ostra Sjukhuset--
10-02-2002Chalmers-Korsvagen--
16-08-2015Jarntorget-Brunsparken--
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
Line 1:15.6
Line 2:12.9
Line 3:12.7
Line 4:19.3
Line 5:13.8
Line 6:24.6
Line 7:21.1
Line 8:21.3
Line9:19.0
Line 10:8.8
Line 11:21.8
Line 13:7.9
Lisemberg Line:3.5
Single line stops
Line 1:33
Line 2:27
Line 3:30
Line 4:21
Line 5:29
Line 6:46
Line 7:35
Line 8:25
Line9:21
Line 10:23
Line 11:38
Line 13:13
Lisemberg Line:8
Single line avg. distance (km)
Line 1:0.5
Line 2:0.5
Line 3:0.45
Line 4:1.0
Line 5:0.5
Line 6:0.55
Line 7:0.6
Line 8:0.9
Line9:0.95
Line 10:0.4
Line 11:0.6
Line 13:0.65
Lisemberg Line:0.5
Total track length (km)
118
Total network stops
132
Avg. stop net distance (km)
0.9
Type
steel wheels
Current/Voltage
600 V DC overhead
Type of guide/gauge
metric gauge rails (1000 mm)
Vehicles builder
ASJL,HAGGLUND,ASEA/MGB,ANSALDO
Model
M28,M29,M31,M32 (Sirio)
Operator
GOTEBORGS SPARVAGAR
(last modified February 19, 2017 )

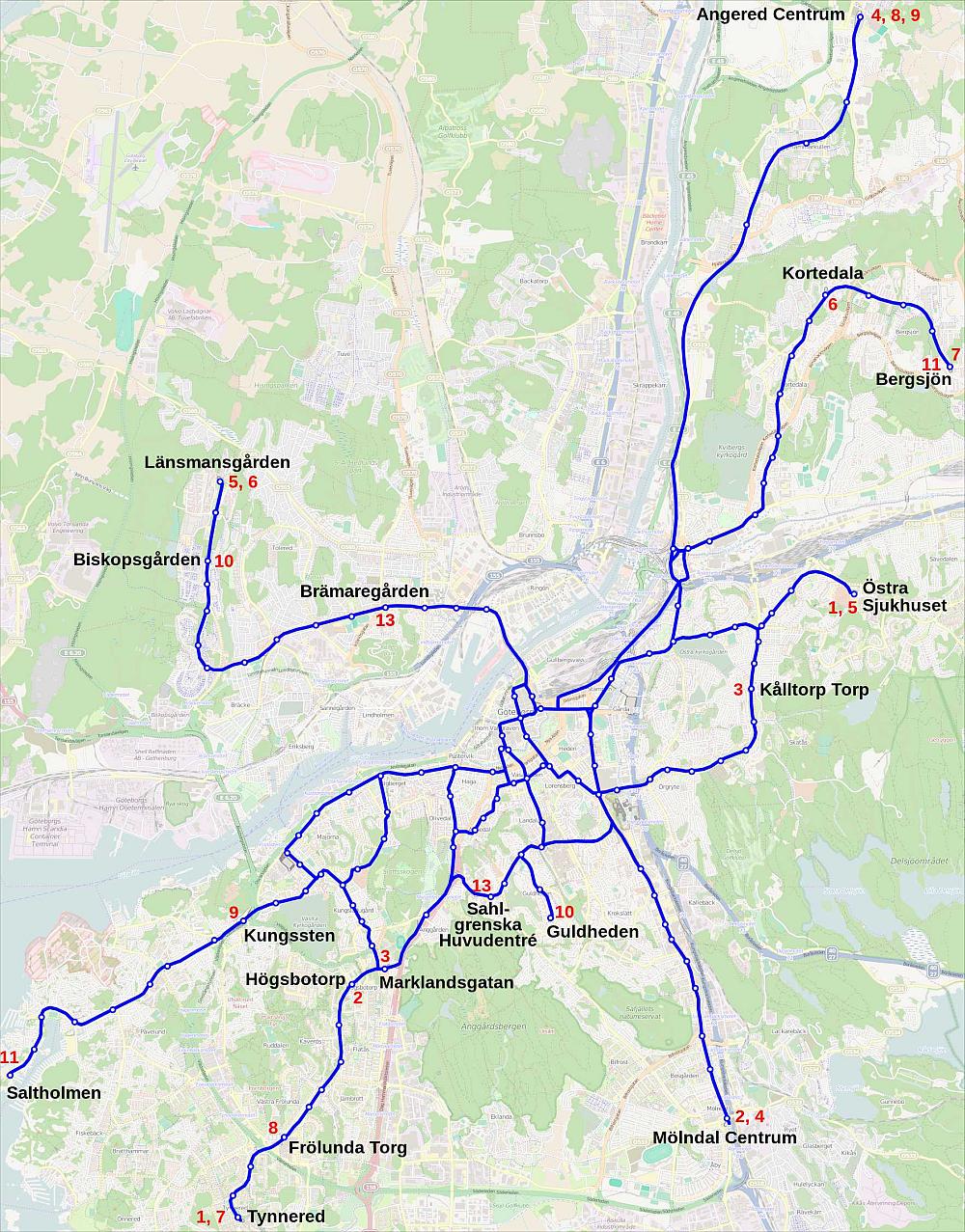

This image is shown smaller (800 x 1.026 pixels) than its maximum size (1000 x 1277 pixels)
Please click on the map to enlarge it to its maximum size


lrt-tram - gothenburg; By Burgerentscheid (openstreetmap.org) [ODbL (http://opendatacommons.org/licenses/odbl/1.0/) or CC BY-SA 2.0 (http://creativecommons.org/licenses/by-sa/2.0)], via Wikimedia Commons
