please, hold the mouse on the logo | Freiburg [lrt-tram] Country: Germany
Line: Line 1, Line 2, Line 3, Line 4, Line 5
Inhabitants: City 220000, District --
|
DESCRIPTION Freiburg electric tram opened in 1901 and from that date it has been continuosly in service. The tram system was constantly extended; last extensions opened in 1983, 1985, 1994, 1997, 2002, 2004, 2006 and 2014.
The current network consists in 5 lines.
(last modified February 19, 2017 )
HISTORYdate | section name | line | | 1901 | initial electric tram section | -- | 1983 | Technisches Rathaus-Paduaallee | -- | 1983 | network voltage converted fro 600 V DC to 750 V DC | -- | 1985 | Paduaallee-Landwasser | -- | 1994 | Bissierstrasse-Haid | -- | 1997 | Am Lindenwaldle-Rieselfeld | -- | 2002 | Am Lindenwaldle-Pressehaus | -- | 2004 | Pressehaus-Johanneskirche | -- | 2006 | Heinrich von Stephan Strasse-Vauban | -- | 15-03-2014 | Reutebachgasse-Zahringen/Gundelfinger Strasse | -- |
(last modified February 19, 2017 )
| TECHNICAL DATA Single line length (Km) Line 1:9.9 Line 2:6.2 Line 3:9.2 Line 4:8.3 Line 5:12.4
Single line stops Line 1:22 Line 2:19 Line 3:21 Line 4:20 Line 5:30
Single line avg. distance (km) Line 1:0.45 Line 2:0.35 Line 3:0.45 Line 4:0.45 Line 5:0.45
Total track length (km) 33.8
Total network stops 73
Avg. stop net distance (km) 0.5
Type steel wheels
Current/Voltage 750 V DC overhead
Type of guide/gauge metric gauge rails (1000 mm)
Vehicles builder DUEWAG,SIEMENS

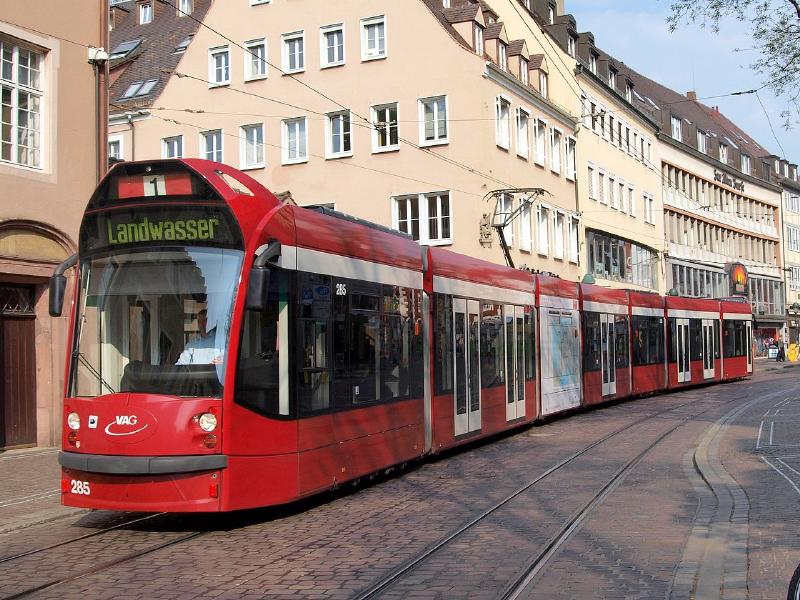

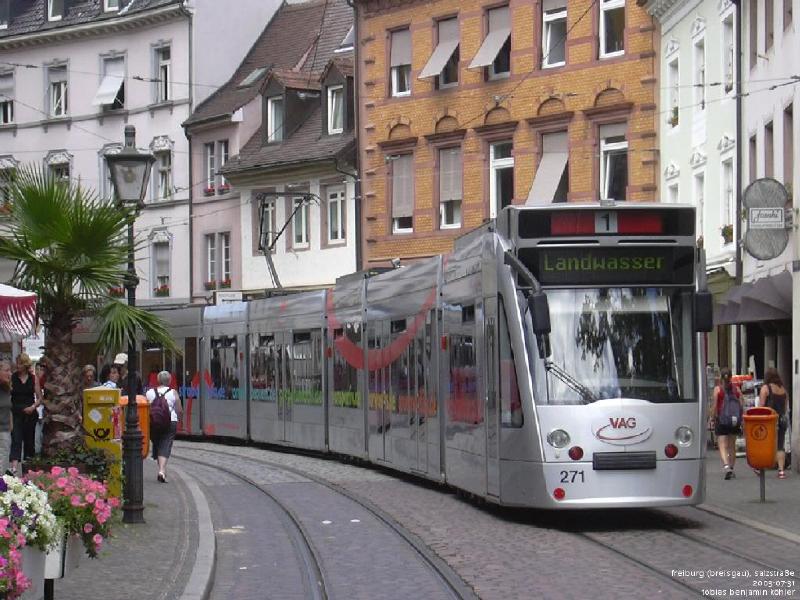

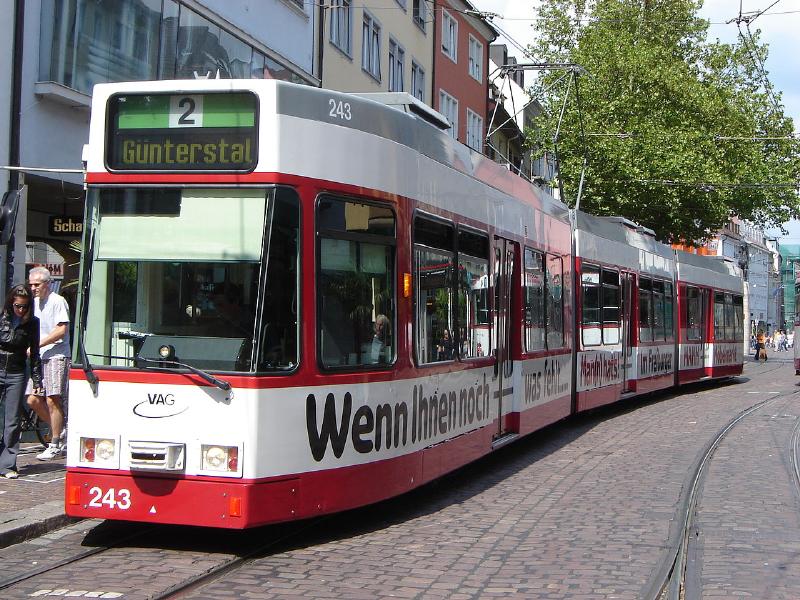

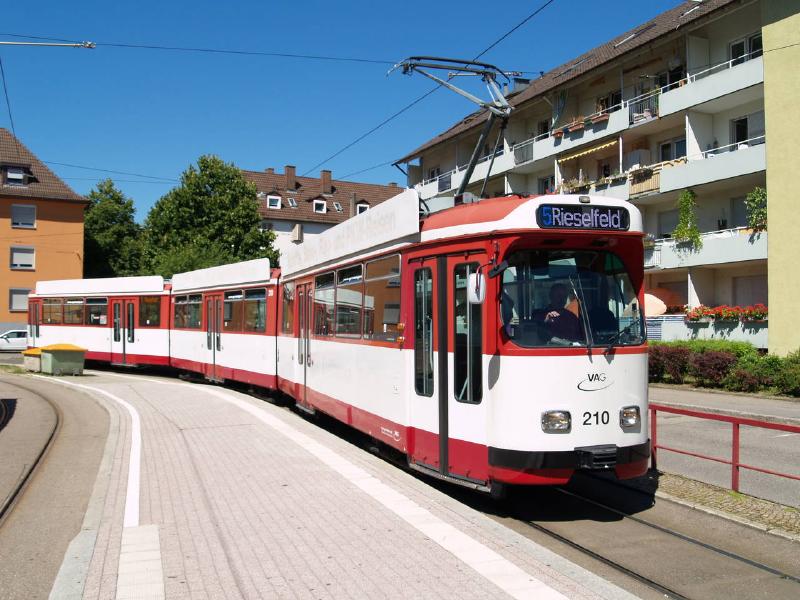

Model GT8K,GT8N,GT8Z,Combino Basic,Combino Advanced
Operator FREIBURGER VERKEHRS AG
| (last modified February 19, 2017 ) |

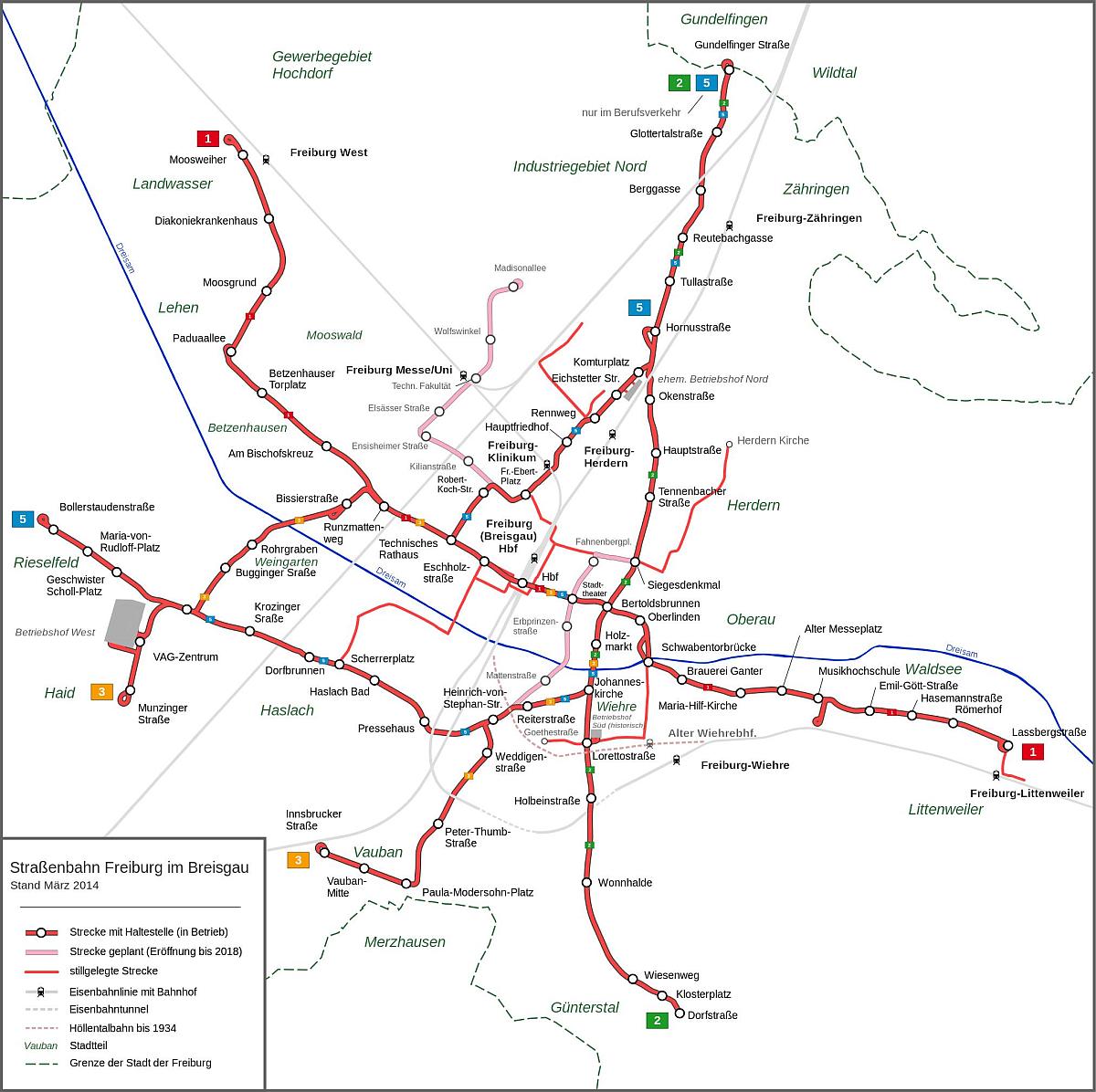

This image is shown smaller (800 x 800 pixels) than its maximum size (1200 x 1196 pixels)
Please click on the map to enlarge it to its maximum size lrt-tram - freiburg; By Strassenbahn Freiburg_Liniennetz_1.png: Grauer Elefant derivative work: Pechristener [CC BY-SA 3.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons
|
|
