DESCRIPTION
Mulhouse first tram opened in 1882 (initial horse tram) and it was electrified in 1894. The original tram network was closed in 1957.
Two modern LRT/tram lines (Tram 1, Tram 2) opened in 2006.
Tram 1 initially ran from Gare Centrale (south) to Rattachement (north); it was extended from Rattachement to Chataignier in 2009. This north-south line serves the stadium, the exhibition area and the railway station (Gare Centrale).
Tram 2 runs from Coteaux (south-west) to Nouveau Bassin (east), serving the sports arena and the university; Tram 1 and Tram 2 interchange in the city centre (Porte Jeune).

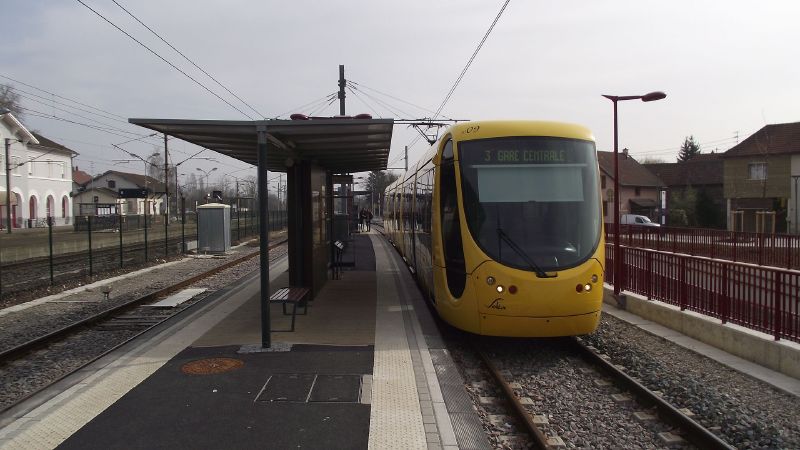

A third line (Tram 3) opened on December 2010, running north-west from Gare Centrale to Lutterbach; it shares part of its track with Tram 1 (Gare Centrale-Porte Jeune Europe) and Tram 2 (Porte Jeune-Rond Point Stricker, located between Palasport and Daguerre stops); from Rond-Point Stricker to Lutterbach Tram 3 runs over an existing railway alignement (this railway segment is electrified at 750 V DC, so Tram 3 is a purely tram service).

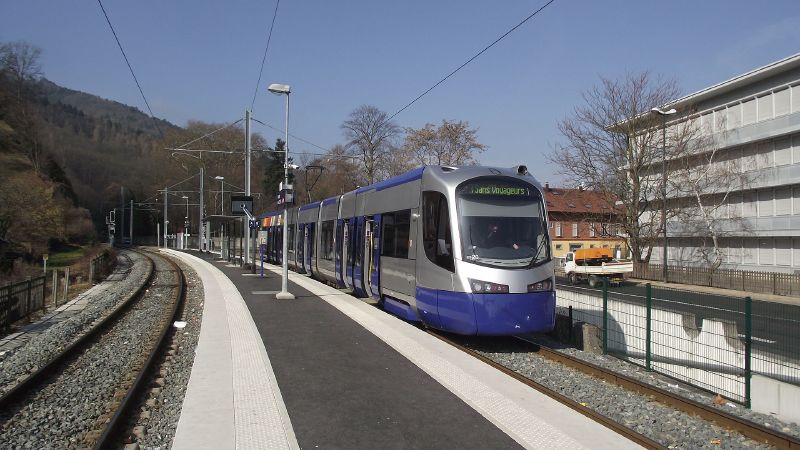

A fourth line (Tram-Train) opened as well on December 2010, connecting Thann with Gare Centrale; Tram-Train line shares part of its track both with SFNC trains (Thann-Lutterbach; this railway segment is electrified at 25 kV AC) and both with tram-cars (Lutterbach-Gare Centrale section, electrified at 750 V DC). This kind of track-sharing operations are possible due to the adoption of a dual voltage rolling stock (running over the train section at 25 kV AC , running over tram tracks at 750 V DC).
(last modified February 19, 2017 )
HISTORY
datesection nameline
1882initial steam tram opening--
1894electrification completed--
1957original tram network closure--
13-05-2006Gare Centrale-RattachementLine 1
04-07-2009Rattachement-ChataignierLine 1
13-05-2006Coteaux-Nouveau BassinLine 2
12-12-2010Gare Centrale-LutterbachLine 3
12-12-2010Gare Centrale-ThannTram-Train
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
Tram 1:5.8
Tram 2:6.2
Tram 3:7
Tram-train:22
Single line stops
Tram 1:12
Tram 2:14
Tram 3:11
Tram-train:18
Single line avg. distance (km)
Tram 1:0.55
Tram 2:0.5
Tram 3:0.7
Tram-train:1.3
Total track length (km)
16.2
Total network stops
19
Avg. stop net distance (km)
0.9
Type
steel wheels
Current/Voltage
Tram 1,Tram 2,Tram 3:750 V DC overhead
Tram-train:750 V DC/25 kV AC overhead
Type of guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
Tram 1,Tram 2:ALSTOM
Tram 3:ALSTOM,SIEMENS
Tram 4:SIEMENS
Model
Tram 1,Tram 2:Citadis 302
Tram 3:Citadis 302,Avanto U25500
Tram 4:Avanto U25500
Operator
SOLEA
(last modified February 19, 2017 )

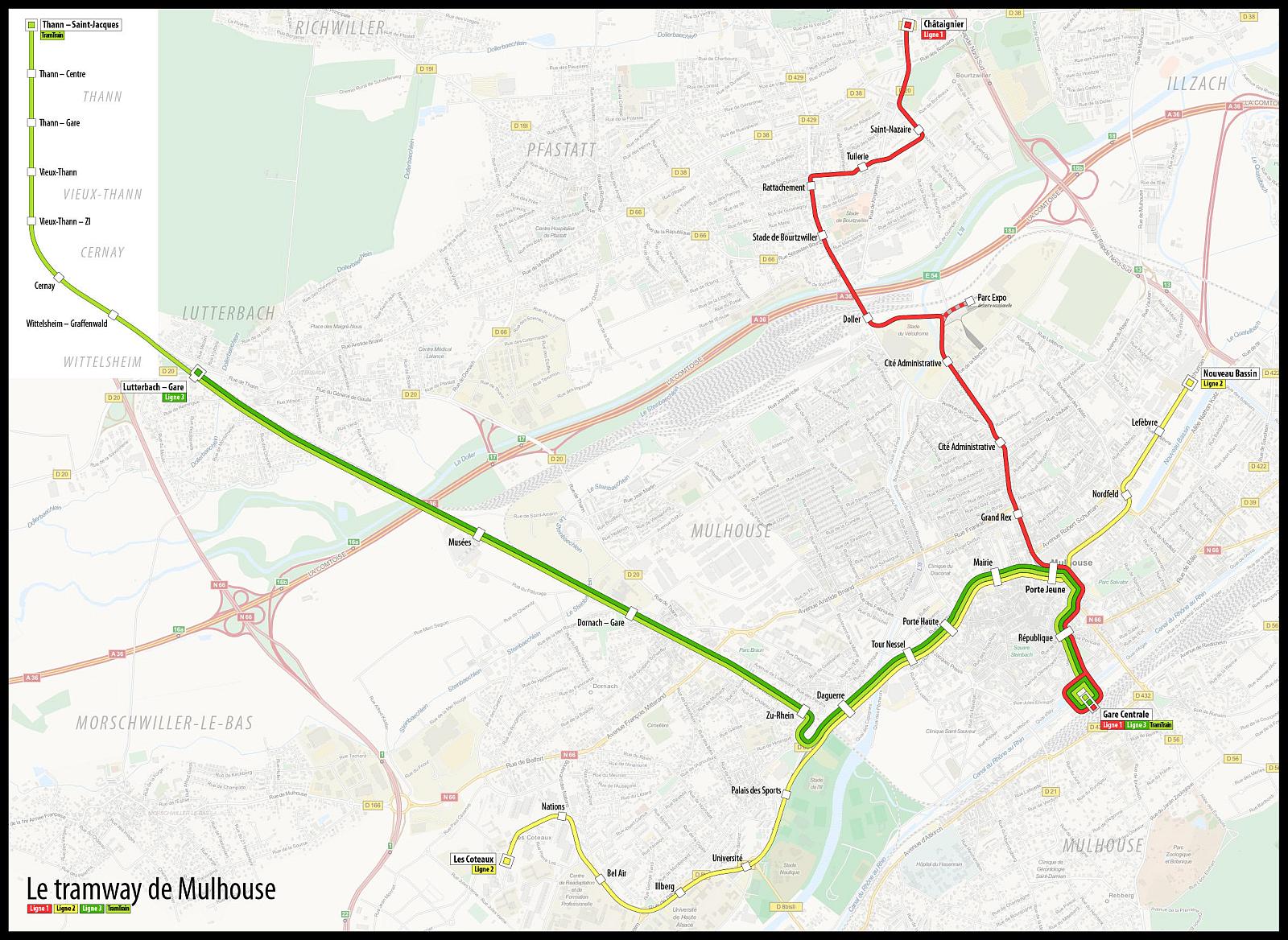

This image is shown smaller (800 x 584 pixels) than its maximum size (1600 x 1168 pixels)
Please click on the map to enlarge it to its maximum size


lrt-tram - mulhouse; By Nuy (Own work using Openstreetmap) [CC0], via Wikimedia Commons
report an error

search a city

LATEST UPDATES TO THIS SITE
apm19-02-2017
lrt-tram27-06-2018
metro26-06-2018
funicular20-02-2017
news20-02-2017

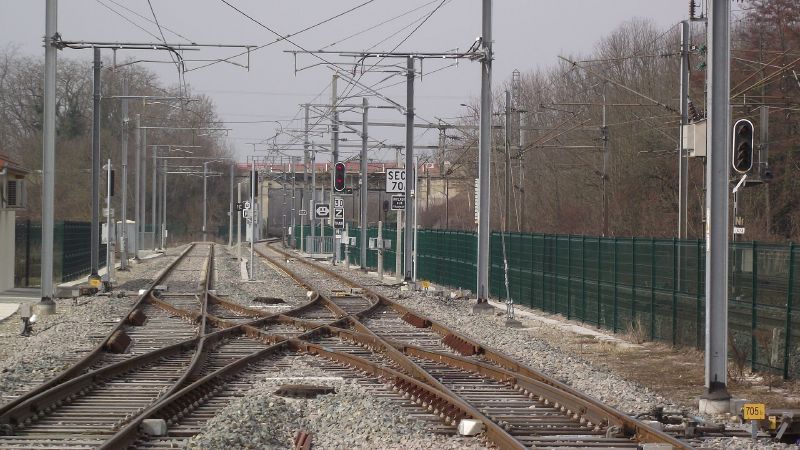

LRT-TRAM Mulhouse PHOTO
