DESCRIPTION
Bursa transit network includes a moder fast tram/LRT system (Bursaray), a modern ordinary tram line (T1) and an heritage tram line (T3).
Bursa modern LRT system (Bursaray) opened in 2002 (Sehrekustu-Kucuk Sanayi; Sehrekustu-Organize Sanayi) and it was extended in 2008, 2010, 2011 and 2014. It's currently articulated in 2 lines (Line 1 and Line 2) which share a common section from Kestler (east) to Acemler; at Acemler the track branches in north-western direction (Acemler-Emek section, belonging to Line 1) and western direction (Acemler-Universite, belonging to Line 2). Bursaray track is mostly ground level.
Tram T1 is a modern circular tram line opened in 2013, running in the old town; the loop connects the Stadium to Gazcilar and back. T1 interchanges with Bursaray at Osmangazi and Demirtaspasa.
The heritage tram line T3 opened in 2011; it runs from Davutkadi (east) to Zafer Plaza (west).
(last modified February 19, 2017 )
HISTORY
datesection nameline
19-08-2002Sehrekustu-Kucuk Sanayi;Sehrekustu-Organize SanayiBursaray
06-04-2008Sehrekustu-Araba YatagiBursaray
24-12-2010Kucuk Sanayi-OzluceBursaray
19-09-2011Ozluce-Uludag UniversitesiBursaray
15-12-2011Organize Sanayi-EmekBursaray
19-03-2014Arabayatagi-OtosansitBursaray
27-03-2014Otosansit-GursuBursaray
05-06-2014Gyrsu-KestelBursaray
28-05-2011Davutkadi-Zafer PlazaT3
13-10-2013Stadium-Gazcilar-Stadium circle lineT1
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
T1:6.5
T3:2.5
Bursaray:38.9
Single line stops
T1:14
T3:9
Bursaray:38
Single line avg. distance (km)
T1:0.50
T3:0.30
Bursaray:1.05
Total track length (km)
47.9
Total network stops
61
Avg. stop net distance (km)
0.80
Type
steel wheels
Current/Voltage
T1,T3:750 V DC overhead
Bursaray:1500 V DC overhead
Guide/gauge
T1, Bursaray:standard gauge rails (1435 mm)
T3:metric gauge rails (1000 mm)
Vehicles builder
T1:DURMARAY
T3:GOTHA,DUEWAG
Bursaray: SIEMENS,DUEWAG,BOMBARDIER
Model
T1:SilkWorm
T3:T57,M6C
Bursaray:B80,SG2,Bombardier Flexity Swift
Operator
BURULAS
(last modified February 19, 2017 )

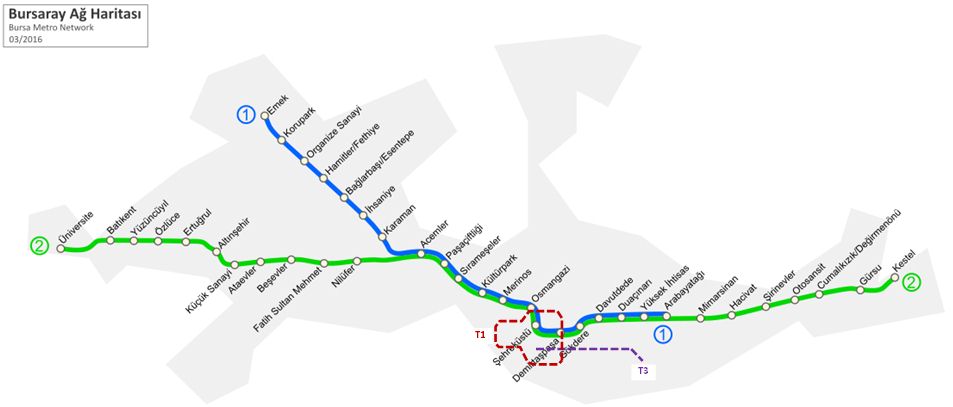

This image is shown smaller (800 x 342 pixels) than its maximum size (953 x 407 pixels)
Please click on the map to enlarge it to its maximum size


lrt-tram - bursa; Source: metrotram.it (original image [Bursaray Map] By Timkili - Own work, CC BY-SA 4.0, https://commons.wikimedia.org/w/index.php?curid=47735879)
