DESCRIPTION
Sarajevo tram opened in 1885 (initial horse tram) and it was electrified in 1895. The tram track was converted from Bosnian gauge (760 mm) to standard gauge (1435 mm) in 1960.
The current network is articulated in 6 routes.
(last modified February 19, 2017 )
HISTORY
datesection nameline
1885initial horse tram opening--
1895electrification completed--
1960track converted from 760 mm gauge to 1435 mm standard gauge--
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
--
Single line stops
--
Single line avg. distance (km)
--
Total track length (km)
10.7
Total network stops
28
Avg. stop net distance (km)
0.4
Type
steel wheels
Current/Voltage
600 V DC overhead
Type of guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
TATRA,SATRA
Model
K2YU,KT8D5,Satra II,Satra III
Operator
JKP GRAS
(last modified February 19, 2017 )

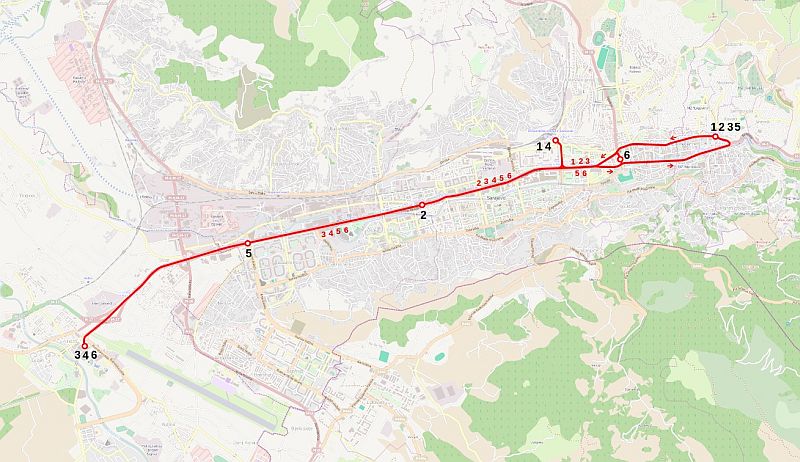

this map is shown here at its maximum resolution (800 x 462)


lrt-tram - sarajevo; By Friedrichstrasse [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC BY-SA 3.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons
