Official Logo | Krakow [lrt-tram] Country: Poland
Line: Tram:Line 1, Line 2, Line 3, Line 4, Line 5, Line 6, Line 7, Line 8, Line 9, Line 10, Line 11, Line 12, Line 13, Line 14, Line 15, Line 16, Line 18, Line 19, Line 20, Line 21, Line 22, Line 23, Line 24, Line 52, Line 62, Line 64, Line 69 Fast Tram:Line 50
Inhabitants: City 760000, District 1720000
|
DESCRIPTION Krakow tram opened in 1882; it was electrified in 1901. The last tram network extensions were completed in 2008 (Politechnika-Rondo Mogilskie tunnel), 2011 (Kobierzynska-Ruzcaj), 2012 (Ruzcaj-Czerwone Maki) and 2015 (Dworcowa-Dw. Plaszow-Lipska).

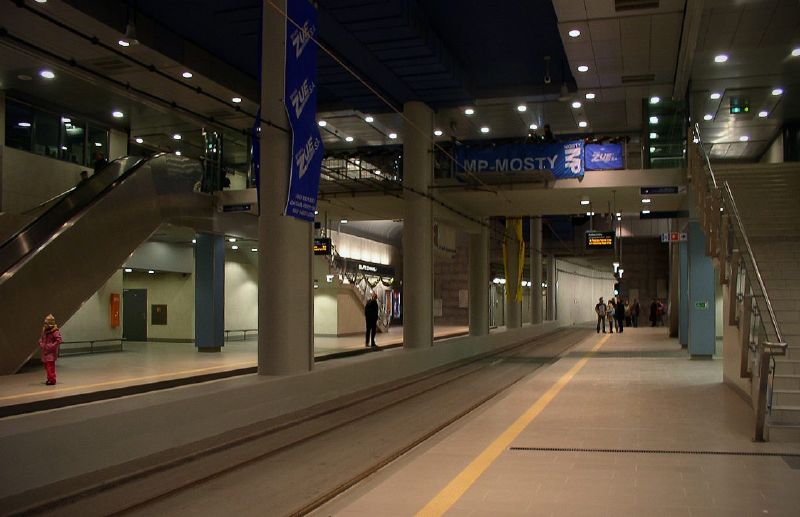

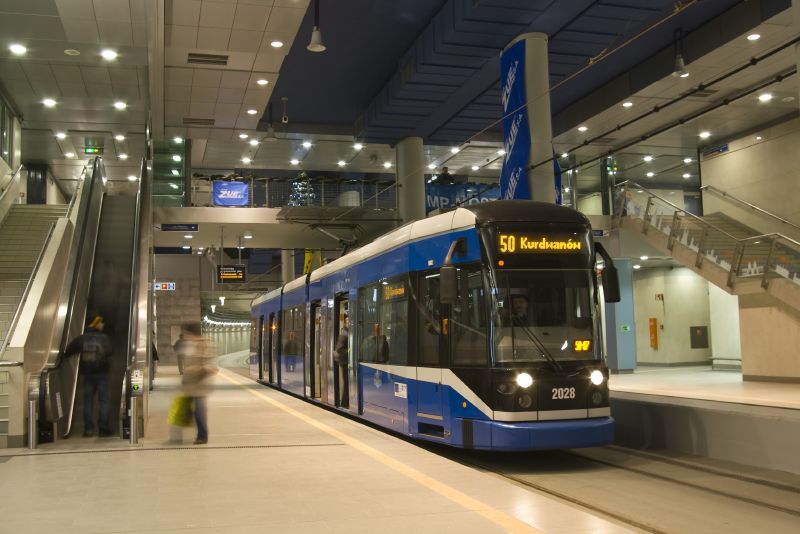

Krakow Fast Tram line (Line 50) opened on 11 December 2008; this line includes a tunnel section passing underneath Dworzec Glowny railway station. This modern LRT/tram line connects Kurdwanow (south) with Krowodrza Gorka (north), passing through the city centre. Fast Tram line runs partly over the existing tram tracks and partly over new infrastructures. The urban segment of this line starts at Rondo Grzegorzeckie (east of the city centre), then it passes the Bothanical Garden and reaches Rondo Mogilskie, where it get under Dworzec Glowny railway station (through Politechnika-Rondo Mogilskie tunnel); then it turns north proceeding ground level through the Politecnique area, and joins the existing tram tracks at Dworzek Towarowy, prosecuting up to Krowodrza Gorka.
The current tram network includes 27 ordinary tram lines and 1 Fast Tram line.
(last modified February 19, 2017 )
HISTORYdate | section name | line | | 1882 | original horse tram alignment | -- | 1901 | electrification completed | -- | 11-12-2008 | Politechnika-Rondo Mogilskie tunnel | -- | 30-12-2011 | Kobierzynska-Ruzcaj | -- | 17-11-2012 | Ruzcaj-Czerwone Maki | -- | 31-08-2015 | Dworcowa-Dw. Plaszow-Lipska | -- |
(last modified February 19, 2017 )
| TECHNICAL DATA Single line length (Km) --
Single line stops --
Single line avg. distance (km) --
Total track length (km) 97
Total network stops 78
Avg. stop net distance (km) 1.25
Type steel wheels
Current/Voltage 600 V DC overhead
Guide/gauge standard gauge rails (1435 mm)
Vehicles builder KONSTAL,BOMBARDIER,DUEWAG,MAN,PROTRAM,BOMBARDIER,PESA
Model 105Na,NGT6,NGT8,GT8S,E1,N8S-NF,EU8N,405N-Kr,126N,Flexity Classic (NGT6),2014N "Krakowiak"
Operator MPK KRAKOW
| (last modified February 19, 2017 ) |

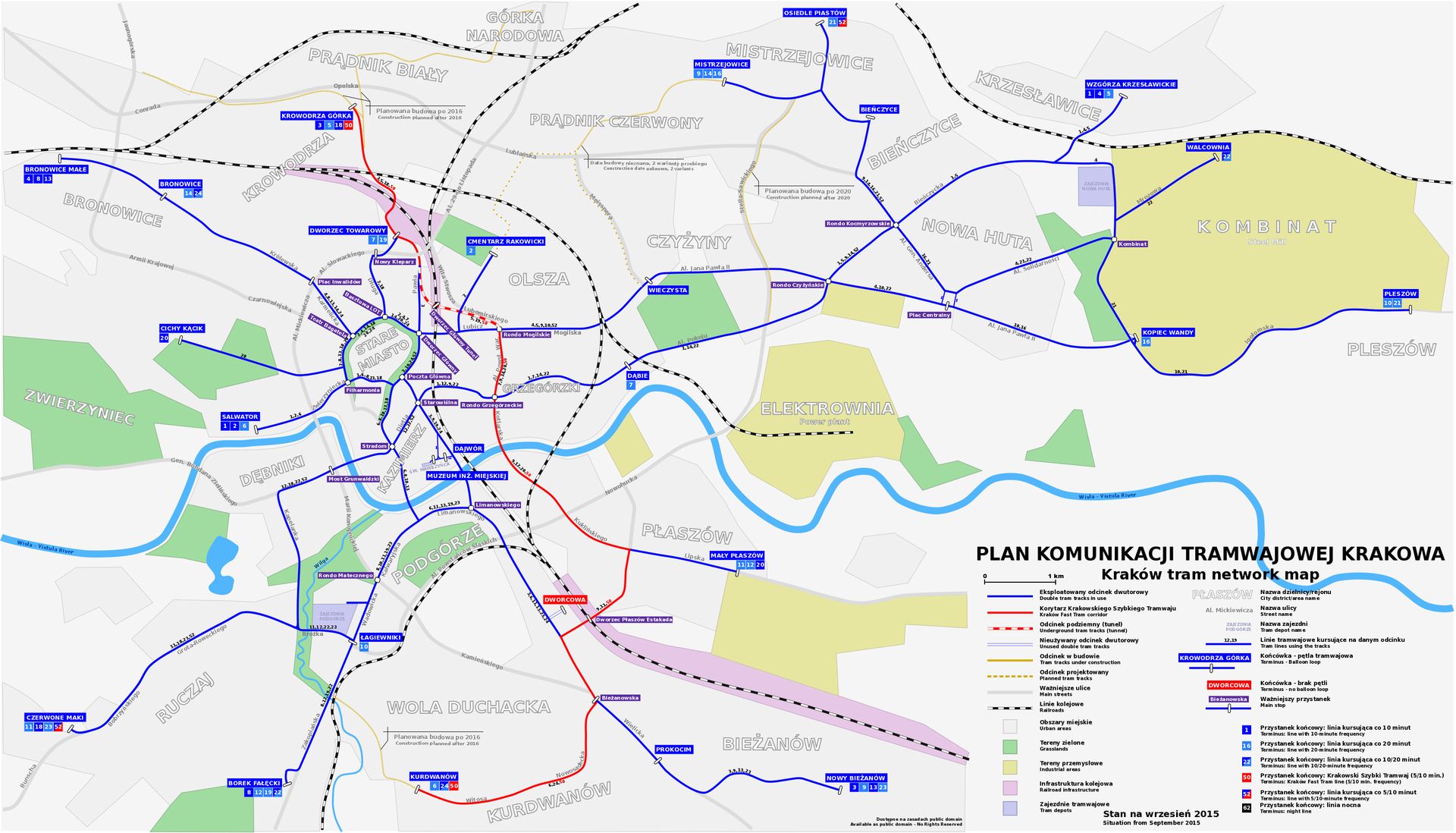

This image is shown smaller (800 x 457 pixels) than its maximum size (1920 x 1098 pixels)
Please click on the map to enlarge it to its maximum size lrt-tram - krakow; By Zyxist (Own work) [Public domain], via Wikimedia Commons
|
