DESCRIPTION
Schwerin tram opened in 1881 (initial horse tram) and it was electrified in 1908. Tram last extensions were completed in 1969, 1974, 1979 and 1984.
The current tram network consists in 4 lines.
(last modified February 19, 2017 )
HISTORY
datesection nameline
1881initial horse tram opening--
1908electrification completed--
1969Lankow north-western extension--
1974Grossen Dreesch south-eastern extension;with a further implementation in 1984--
1979Neu Pampow south-western extension--
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
--
Single line stops
--
Single line avg. distance(km)
--
Total track length (km)
21
Total network stops
38
Avg. stop net distance (km)
0.55
Type
steel wheels
Current/Voltage
720 V DC overhead
Type of guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
BOMBARDIER
Model

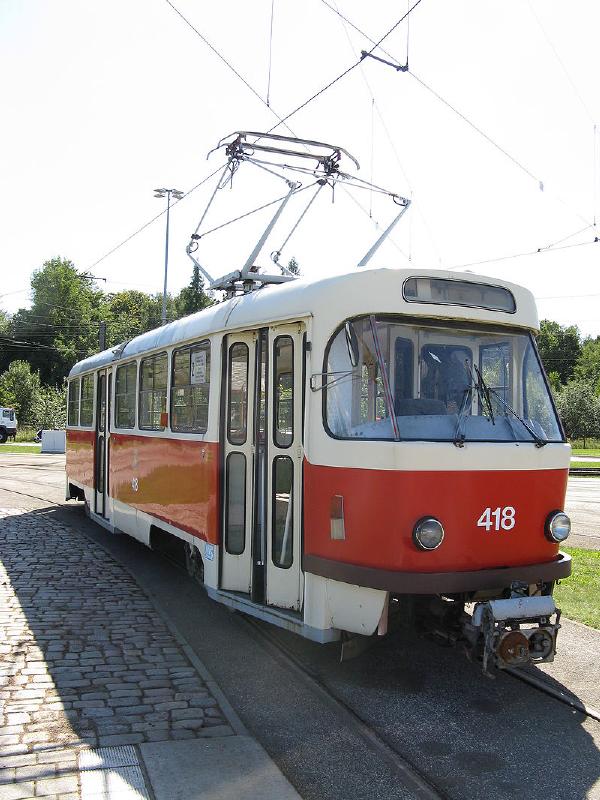

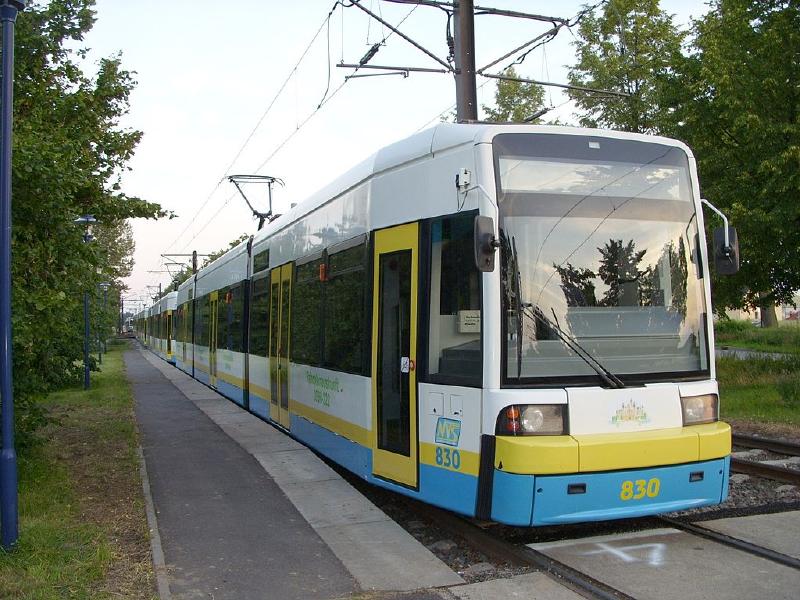

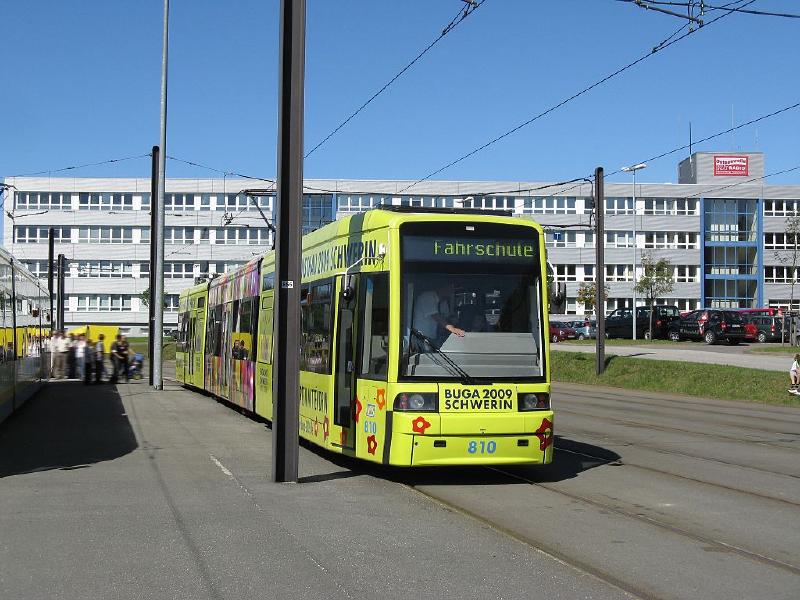

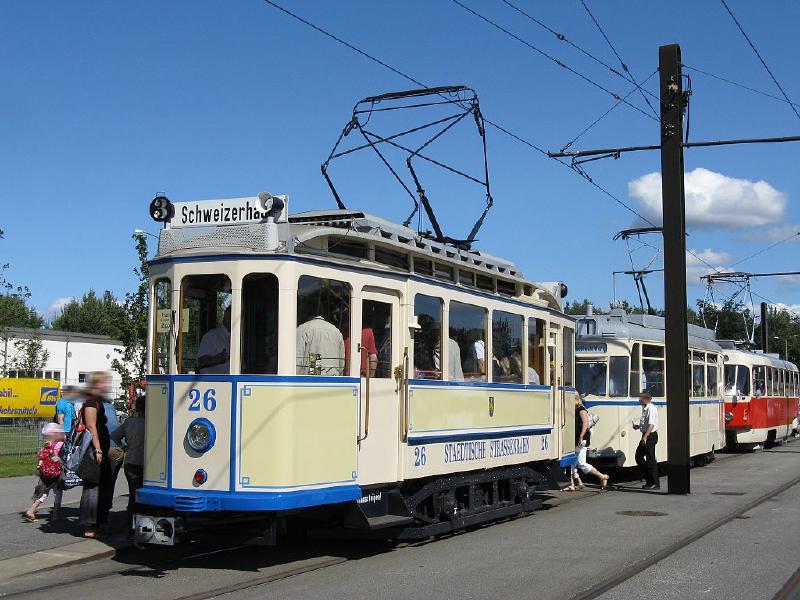

SN2001 (Flexity Classic) [Note:presence of few heritage tramcar models]
Operator
NAHVERKEHR SCHWERIN GMBH
(last modified February 19, 2017 )

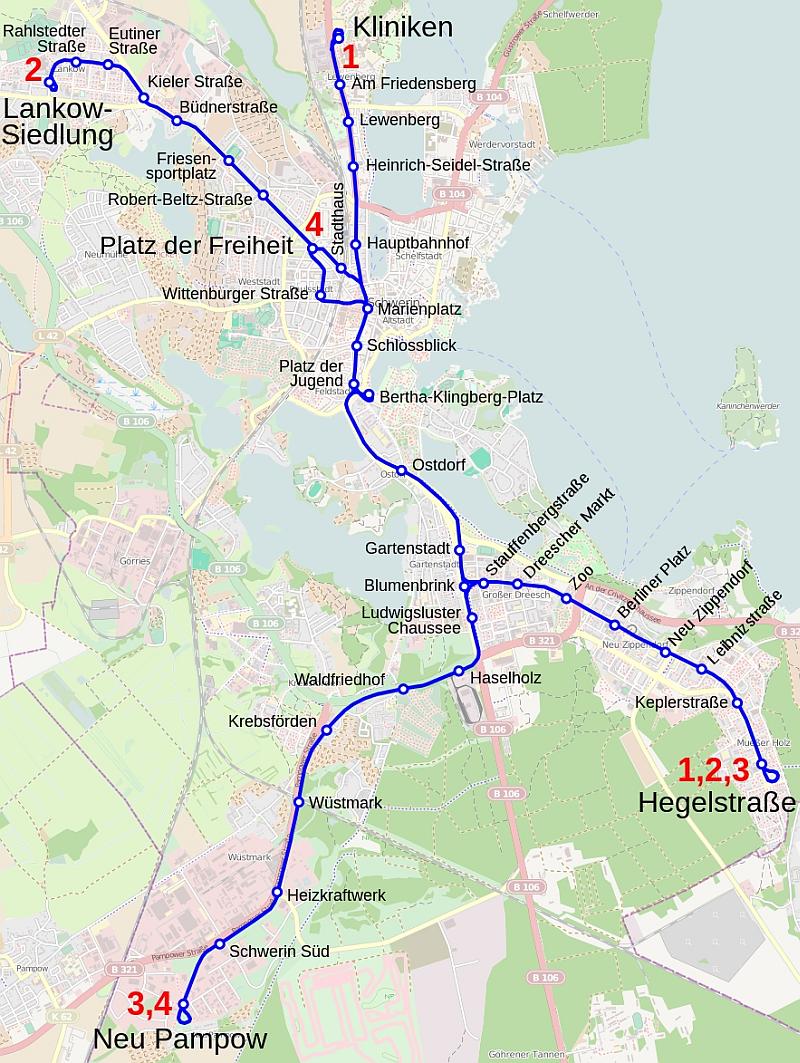

this map is shown here at its maximum resolution (800 x 1063)


lrt-tram - schwerin; By Burgerentscheid (openstreetmap.org) [ODbL (http://opendatacommons.org/licenses/odbl/1.0/) or CC BY-SA 2.0 (http://creativecommons.org/licenses/by-sa/2.0)], via Wikimedia Commons
