DESCRIPTION
The original Dublin tram network opened in 1871 (initial horse tram); electrification took place in 1901. Tram service was finally closed in 1959.
At the end of years '90s Dublin was in a rapid rising economic phase and its municipalty launched the construction of a modern mass transport system (LRT/tram), based on 2 radial lines (Red Line, Green Line) converging in the city centre.
Both tram lines opened in 2004: Red Line from Connolly to Tallaght, Green Line from St. Stephen's Green to Sandyford. Red Line was extended in 2009 (Busaras-The Point) and 2011 (Belgard-Saggart). Green Line was extended in 2010 (Sandyford-Brides Glen) and 2017 (Stephen's Green-Broombridge).
(last modified June 26, 2018 )
HISTORY
datesection nameline
1871first horse tram opening--
1901electrification completed--
1959tram network closure--
05-07-2004St. Stephen's Green-SandyfordGreen Line
28-09-2004Connolly-TallaghtRed Line
08-12-2009Busaras-The PointRed Line
16-10-2010Sandyford-Brides GlenGreen Line
02-07-2011Belgard-SaggartRed Line
09-12-2017St. Stephen's Green-BroombridgeGreen Line
(last modified June 26, 2018 )
TECHNICAL DATA
Single line length (Km)
Red Line:20.7
Green Line:23.5
Single line stops
Red Line:32
Green Line:35
Single line avg. distance (km)
Red Line:0.65
Green Line:0.70
Total track length (km)
42.1
Total network stops
67
Avg. stop net distance (km)
0.60
Type
steel wheels
Current/Voltage
750 V DC overhead
Guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
ALSTOM
Model
Citadis 301,Citadis 401,Citadis 402
Operator
TRANSDEV
(last modified June 26, 2018 )

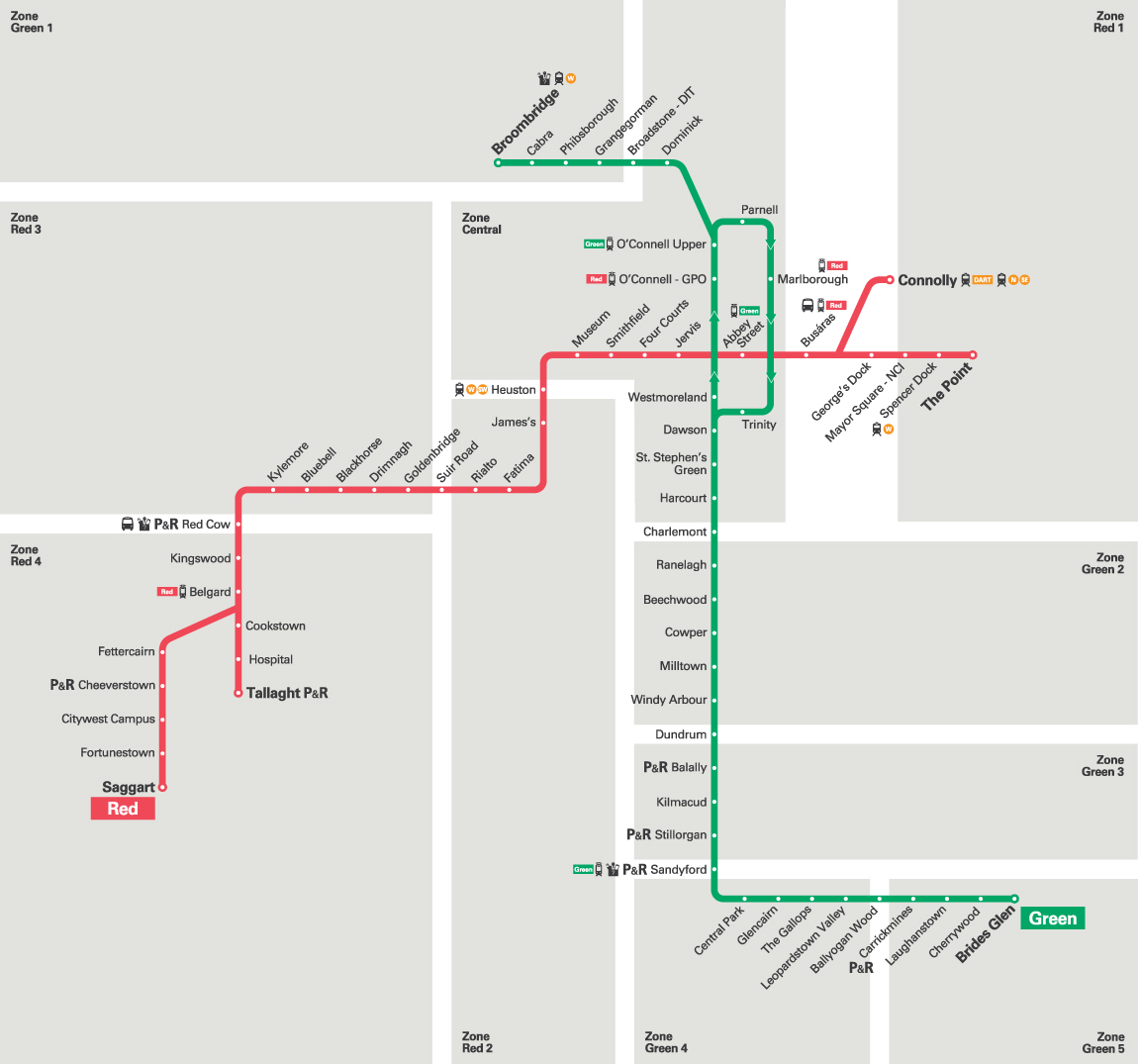

This image is shown smaller (800 x 748 pixels) than its maximum size (1150 x 1075 pixels)
Please click on the map to enlarge it to its maximum size


lrt-tram - dublin; Source: LUAS official website
