DESCRIPTION
Le Mans original tram line opened in 1897; this initial metric gauge tram closed in 1947.
The first sections of the modern tram network opened in 2007 (Universitè-Antares; Saint Martin-Espal); it was extended in 2014 (Prefecture-Bellevue Hauts de Coulaines). The current tram network is articulated in 2 lines (T1, T2) which share a common central section (Prefecture-Saint Martin).
T1 runs from Universitè (north-west) to Antares (south); it serves the city centre and the railway station, besides other crucial urban polarities (such as the university, and the hospital).
T2 runs from Belleuve-Hauts de Coulaines (north) to Espal-Arche de la Nature (east); its track joins popular residential suburbs and many public structures.
(last modified February 19, 2017 )
HISTORY
datesection nameline
1897initial electric tram section opening--
1947tram network closure--
17-11-2007Universitè-Antares--
22-12-2007Saint Martin-Espal--
30-08-2014Prefecture-Bellevue Hauts de Coulaines--
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
--
Single line stops
--
Single line avg. distance (km)
--
Total track length (km)
18.8
Total network stops
35
Avg. stop net distance (km)
0.5
Type
steel wheels
Current/Voltage
750 V DC overhead
Guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
ALSTOM
Model
Citadis 302
Operator
SOCIETE' D'ECONOMIE MIXTE DES TRANSPORTS EN COMMUN DE L'AGGLOMERATION MANCELLE (SETRAM)
(last modified February 19, 2017 )

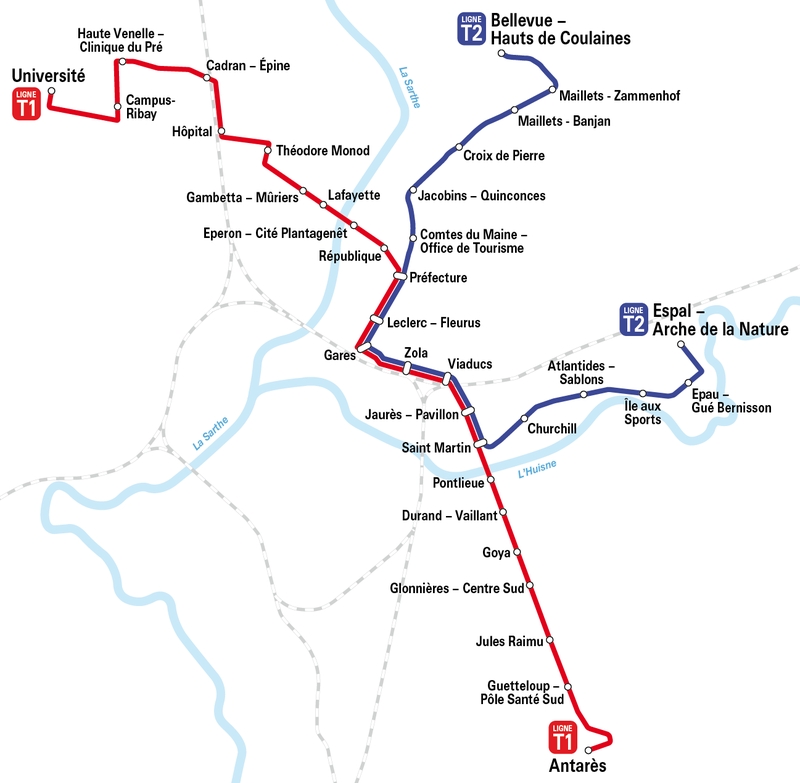

this map is shown here at its maximum resolution (800 x 783)


lrt-tram - le mans; By Maximilian Dorrbecker (Chumwa) (Own work) [CC BY-SA 2.5 (http://creativecommons.org/licenses/by-sa/2.5)], via Wikimedia Commons
