please, hold the mouse on the logo | Marseille [lrt-tram] Country: France
Line: T1, T2, T3
Inhabitants: City 850000, District 1730000
|
DESCRIPTION Marseille tram system opened in 1876; it was electrified in 1900. In years '30s the tram network achieved a remarkable extension, before being constantly reduced and substantially dismantled after the second world war, with the exception of Line 68 (Noailles-Alhambra). This trend has been reversed in 2004 when important works were launched in order to realize a modern LRT/tram network; Line 68 was definitely closed in December 2003, to be integrated in the future tram line T1.
The first phase of the new tram system opened on June 2007 (Euromediterranee Gantes-Les Caillols). It was extended from Eugene Pierre to La Blancarde on November 2007; on that date the tram track was organized in 2 lines: T1 (Noailles-Les Caillols) and T2 (Euromediterranee-Blancharde). T1 was implemented on September 2008 (Noailles-Eugene Pierre tunnel section); T2 was extended in 2010 (Euromediterranee Gantes-Euromediterranee Arenc Le Silo).
A third tram line (T3) opened on May 2015 running from Castellane to Euromediterranee Arenc Le Silo; it shares part of the track (Euromediterranee Arenc Le Silo-Belsunce Alcazar) with T2.
Metro and tram interchange at Castellane (tram: T3; metro: M1, M2), Joliette (tram: T2, T3; metro: M2), Reformes-Canebiere (tram: T2; metro: M1) and La Blancharde (tram: T1, T2; metro: M1).
(last modified February 19, 2017 )
HISTORYdate | section name | line | | 1876 | initial horse tram opening | -- | 1900 | electrification completed | -- | 2004 | original tram network closure | -- | 30-06-2007 | new tram network opening: Euromediterranee Gantes-Les Caillols | -- | 06-11-2007 | Eugene Pierre-La Blancarde; tram splitted in 2 lines: T1;T2 | -- | 28-09-2008 | Eugene Pierre-Noailles tunnel section | -- | 27-03-2010 | Euromediterranee Gantes-Euromediterranee Arenc/Arenc Le Silo | -- | 30-05-2015 | Canebiere Capucins stop; T3 Arenc Le Silo-Castellane | -- |
(last modified February 19, 2017 )
| TECHNICAL DATA Single line length (Km) T1:6.1 T2:5.8 T3:3.6
Single line stops T1:14 T2:14 T3:11
Single line avg. distance (km) T1:0.45 T2:0.45 T3:0.35
Total track length (km) 13
Total network stops 32
Avg. stop net distance (km) 0.4
Type steel wheels
Current/Voltage 750 V DC overhead
Guide/gauge standard gauge rails (1435 mm)
Vehicles builder BOMBARDIER
Model Flexity Outlook
Operator RTM
| (last modified February 19, 2017 ) |

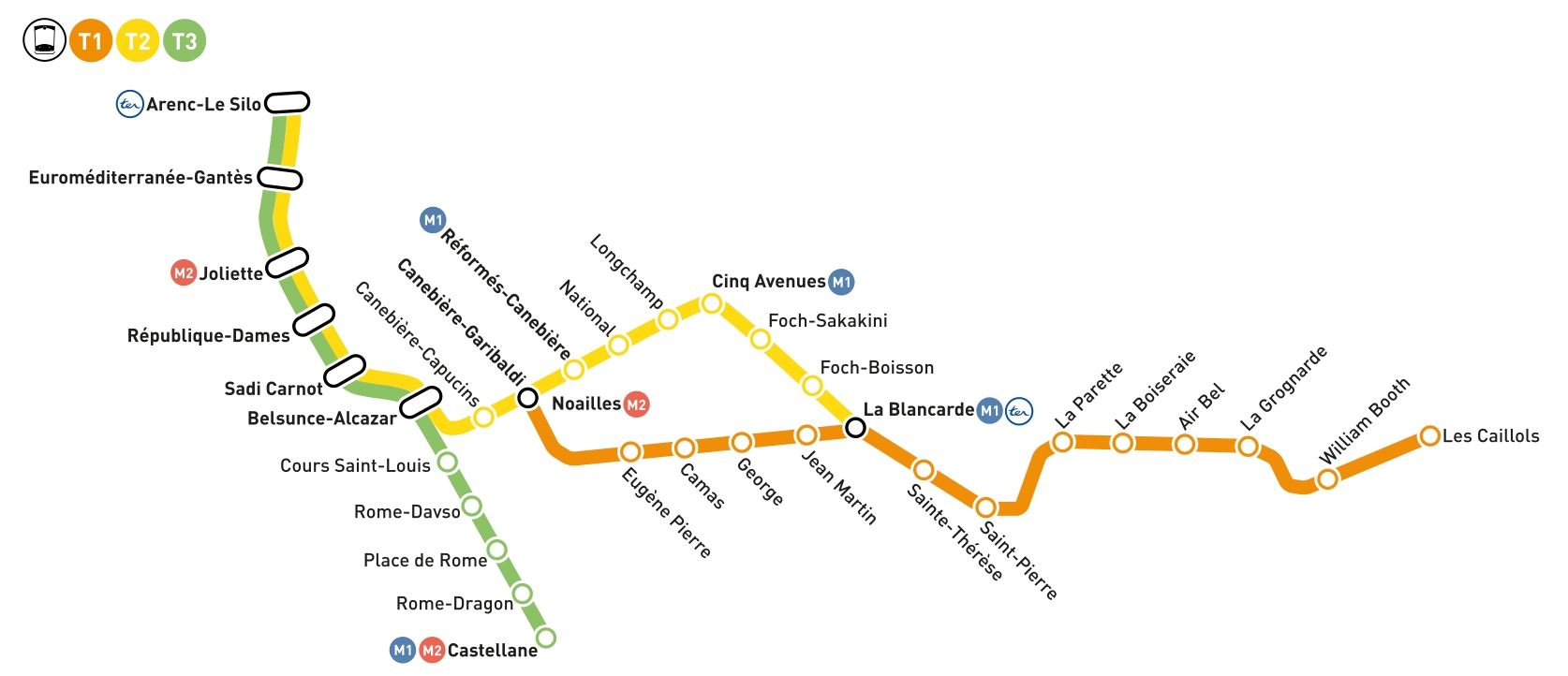

This image is shown smaller (800 x 345 pixels) than its maximum size (1674 x 722 pixels)
Please click on the map to enlarge it to its maximum size lrt-tram - marseille; By Superbenjamin (Own work) [CC BY-SA 3.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons
|
