DESCRIPTION
Lisbon tram opened in 1873 (initial horse tram); its electrification was completed in 1902. The ancient tram network is still working, running through the hilly suburbs (Alfama, Barrio Alto, etc) and the city centre (Baix). 4 of the lines (12,18,25,28) adopt the old Brill rolling stock (built from 1936 to 1940), which was renewed to preserve its original features. A fifth line (Line 15) runs along the river side utilizing a modern rolling stock (mono-directional low-floor trams).
A modern LRT line (MTS-Metro Transportes do Sul) opened on 30 April 2007 (first sections Corroios-Cova da Piedade, Cova da Piedade-Universidade); MTS was extended in 2008 (Cacilhas-Cova da Piedade).
(last modified February 19, 2017 )
HISTORY
datesection nameline
1873original horse tram openingtram
1902electrification completedtram
30-04-2007Corroios-Cova da PiedadeMTS
15-12-2007Cova da Piedade-UniversidadeMTS
26-11-2008Cacilhas-Cova da PiedadeMTS
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
Tram:26
MTS:13.5
Single line stops
Tram:97
MTS:19
Single line avg. distance (km)
Tram:0.3
MTS:0.75
Total track length (km)
39.5
Total network stops
116
Avg. stop net distance (km)
0.35
Type
steel wheels
Current/Voltage
Tram:600 V DC overhead
MTS:750 V DC overhead
Guide/gauge
Tram:900 mm gauge rails
MTS:standard gauge rails (1435 mm)
Vehicles builder
Tram:BRILL,SIEMENS/CAF/SOREFAME,SIEMENS/KIEPE
MTS:SIEMENS
Model
Tram:--
MTS:Combino Plus
Operator
Tram:CARRIS
MTS:METRO TRANSPORTES DO SUL
(last modified February 19, 2017 )

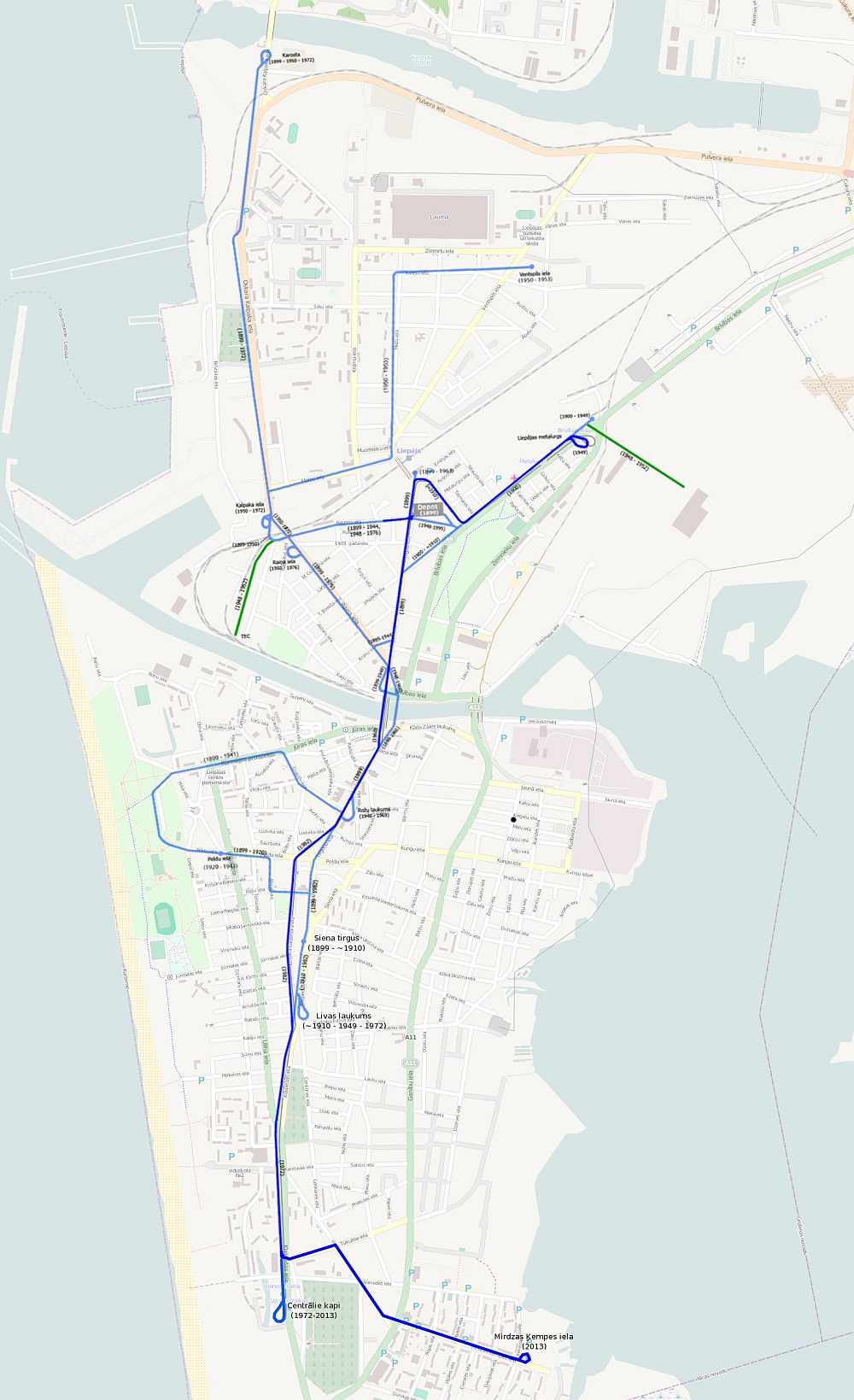

This image is shown smaller (800 x 1.026 pixels) than its maximum size (990 x 1269 pixels)
Please click on the map to enlarge it to its maximum size


lrt-tram - lisbon; Modified by Metrotram.it (own work). Sources: TRAM/By Don-kun, Open Street Map (Own work, with data from Open Street Map) [CC BY-SA 2.0 (http://creativecommons.org/licenses/by-sa/2.0)], via Wikimedia Commons;MTS/By Map_of_the_Metro_Sul_do_Tejo.png: Maximilian Dorrbecker (Chumwa) derivative work: Tuvalkin [CC BY-SA 2.5 (http://creativecommons.org/licenses/by-sa/2.5)], via Wikimedia Commons
