DESCRIPTION
At the end of XIX century the Greek capital opened its first tram network (horse tram, 1882), which was totally electrified (1906). In the first decades of XX century this network had a great expansion, but after the second world war it was constantly reduced before being totally closed (1960).
Athens new tram network opened in 2004 before the Olympic Games, in order to integrate the metro system with a ground level service. Metro and tram interchange at Syntagma (metro lines 2 and 3), Neos Kosmo and Fix (metro line 2). The modern tram track consists in a common section running from the city centre (Syntagma) to Mousson (passing through Nea Smyrni and Paleo Faliro), where it branches in north-western (Faliriko Delta, Neo Faliro, Peace & Friendship Stadium) and south-eastern (Alimos, Helliniko, Glyfada and, since November 2007, Voulas) directions.
Tram network is also connected to suburban railways (line 1) at Peace & Friendship Stadium.
(last modified February 19, 2017 )
HISTORY
datesection nameline
1882initial horse tram opening--
1906electrification completed--
1960tram network closed--
19-07-2004new tram netork opening: Stadio Irinis&Filias/Syntagma-Glyfadas--
2007Glyfadas-Voulas--
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
T3:16.1
T4:14.2
T5:18.2
Single line stops
T3:31
T4:28
T5:37
Single line avg. distance (km)
T3:0.55
T4:0.55
T5:0.5
Total track length (km)
27
Total network stops
48
Avg. stop net distance (km)
0.6
Type
steel wheels
Current/Voltage
750 V DC overhead
Guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
ANSALDO
Model
Sirio
Operator
STASY S.A.
(last modified February 19, 2017 )

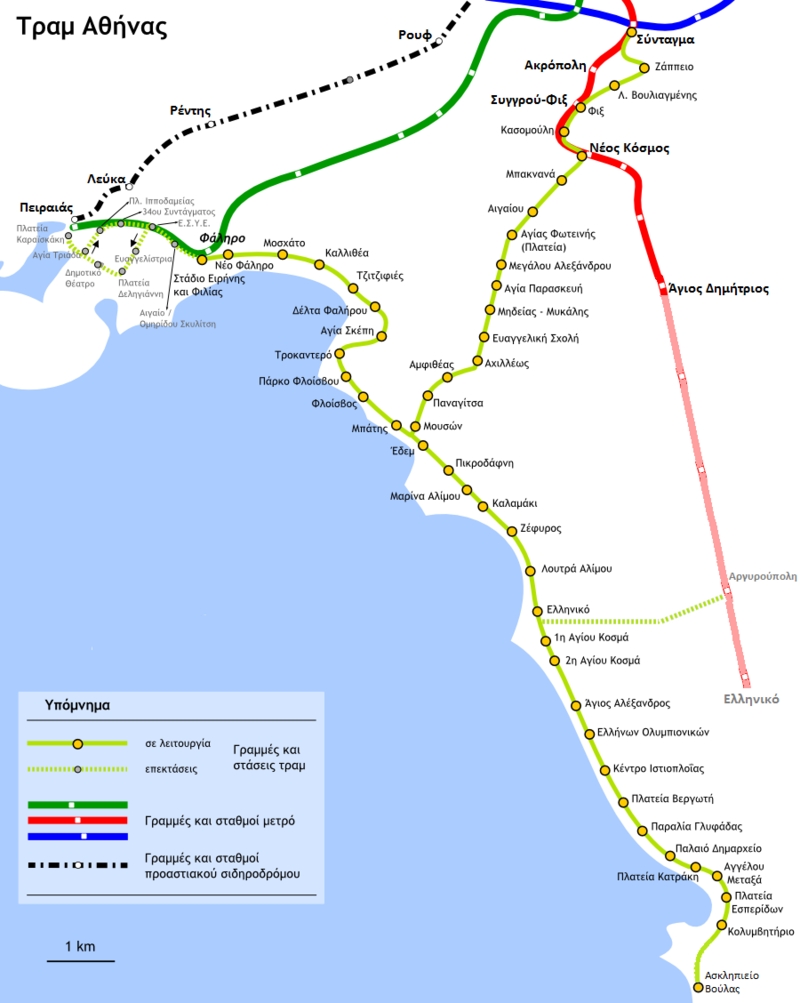

this map is shown here at its maximum resolution (800 x 1003)


lrt-tram - athens; By Athens_tram_2007_el.png: Anastasios derivative work: Sv1xv (Athens_tram_2007_el.png) [CC BY-SA 2.5-2.0-1.0 (http://creativecommons.org/licenses/by-sa/2.5-2.0-1.0), GFDL (http://www.gnu.org/copyleft/fdl.html) or CC-BY-SA-3.0 (http://creativecommons.org/licenses/by-sa/3.0/)], via Wikimedia Commons
report an error

search a city

LATEST UPDATES TO THIS SITE
apm19-02-2017
lrt-tram27-06-2018
metro26-06-2018
funicular20-02-2017
news20-02-2017

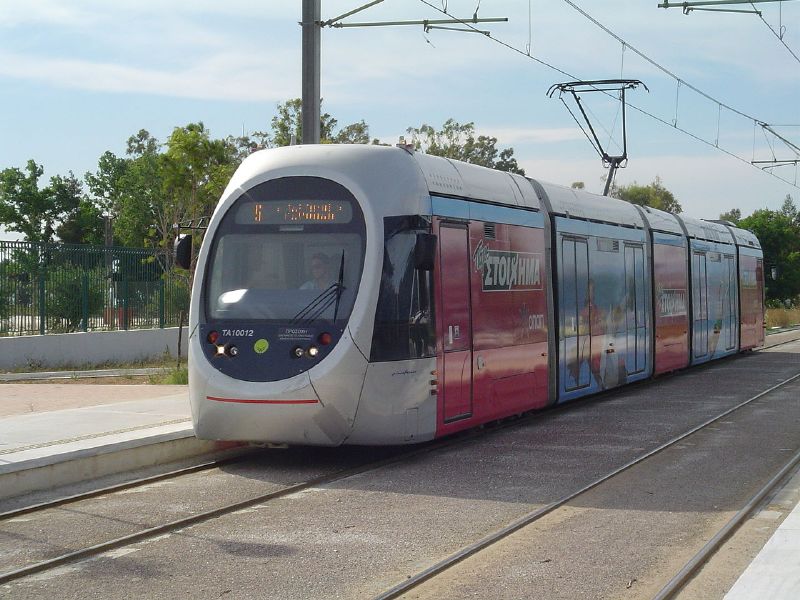

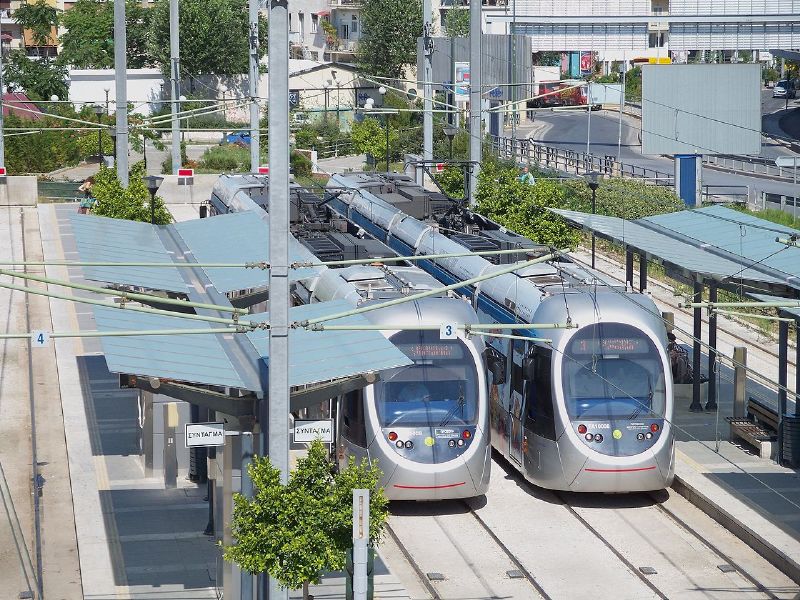

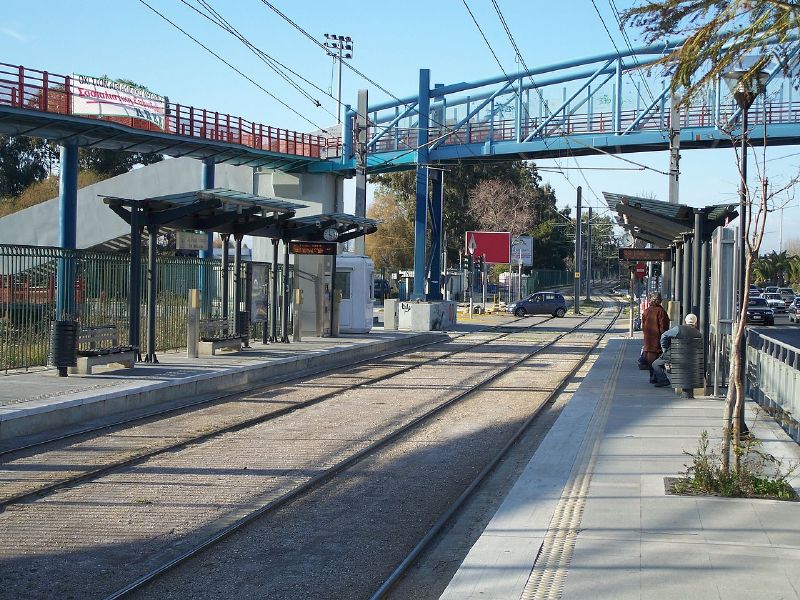

LRT-TRAM Athens PHOTO
