DESCRIPTION

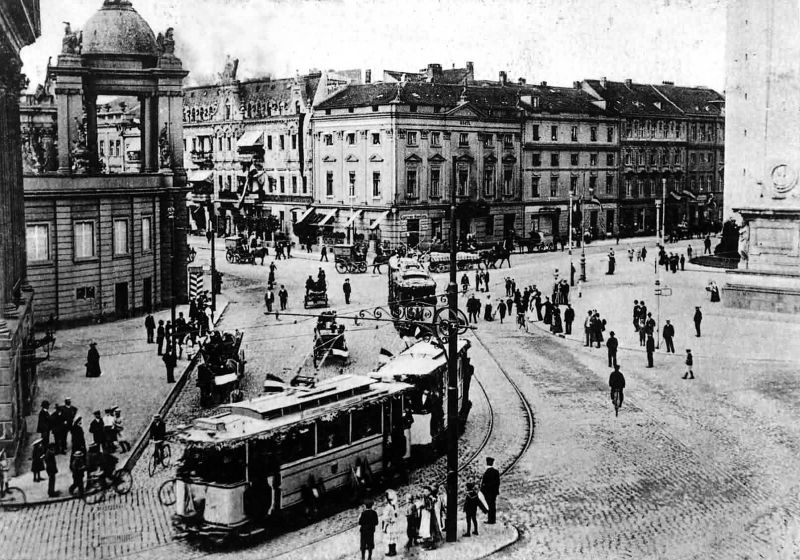

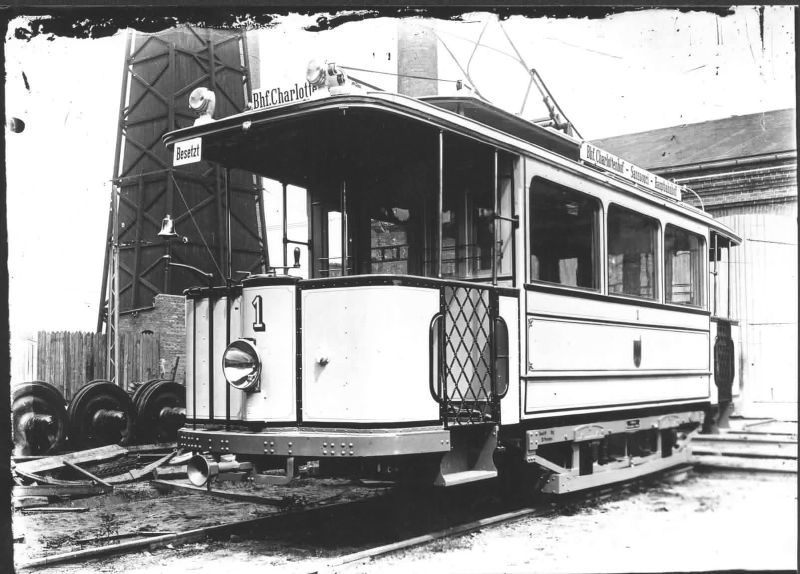

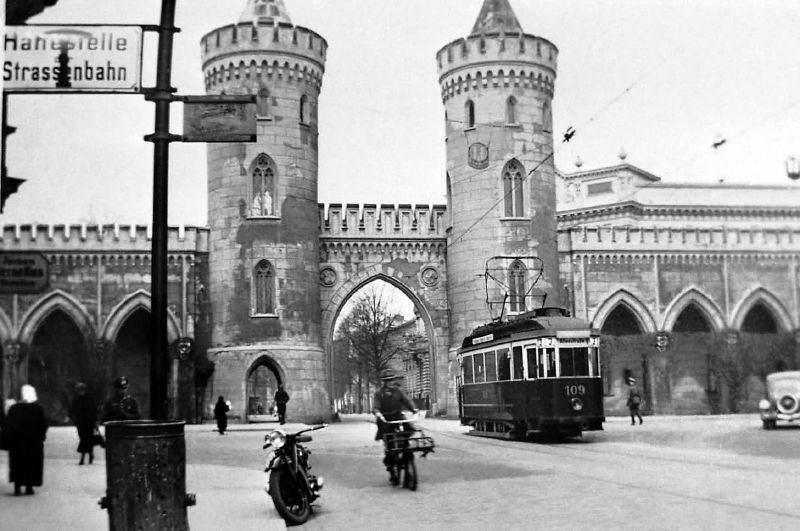

Potsdam tram opened in 1880 (initial horse tram) and it was electrified in 1907. Its last extensions were completed in 1985, 1991, 1993, 1996, 1999, 2001 and 2017.
The current network is articulated in 5 regular lines (plus 2 special lines), joining each other at Platz der Einheit (city centre). Tram interchanges with DB railways at Potsdam Hbf (where it's also connected with Berlin S-Bahn S7), Babelsberg, Rehbrucke, Charlottenhof and Pirschheide; thanks to its latest extensions (1991-2001), tram also serves new residential areas (Robert Baberske Strasse/Kirschsteigfeld, Bornstedter Feld). The track is mostly in reserved lanes (75% of its extension), without interferences with road traffic.
(last modified June 26, 2018 )
HISTORY
datesection nameline
1880initial horse tram opening--
1907electrification completed--
1985Waldstrasse-Gaussstrasse--
1991Menzelstrasse-Glienicker Brucke--
1993Gaussstrasse-Robert Baberske Strasse--
1996Robert Baberske Strasse-Marie Juchacz Strasse--
1999Puschkinallee-Kirschallee--
2001Campus Fachhochschule-Viereckremise--
2015tram voltage converted from 600 V DC to 750 V DC--
10-12-2017Viereckremise-Campus Jungfernsee--
(last modified June 26, 2018 )
TECHNICAL DATA
Single line length (Km)
--
Single line stops
--
Single line avg. distance (km)
--
Total track length (km)
30
Total network stops
129
Avg. stop net distance (km)
0.25
Type
steel wheels
Current/Voltage
750 V DC overhead
Type of guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
TATRA,SIEMENS,STADLER
Model

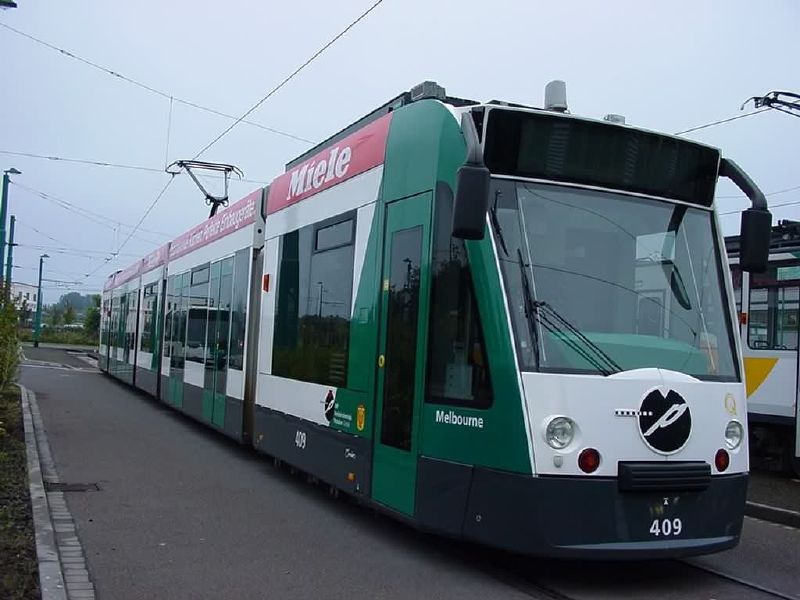

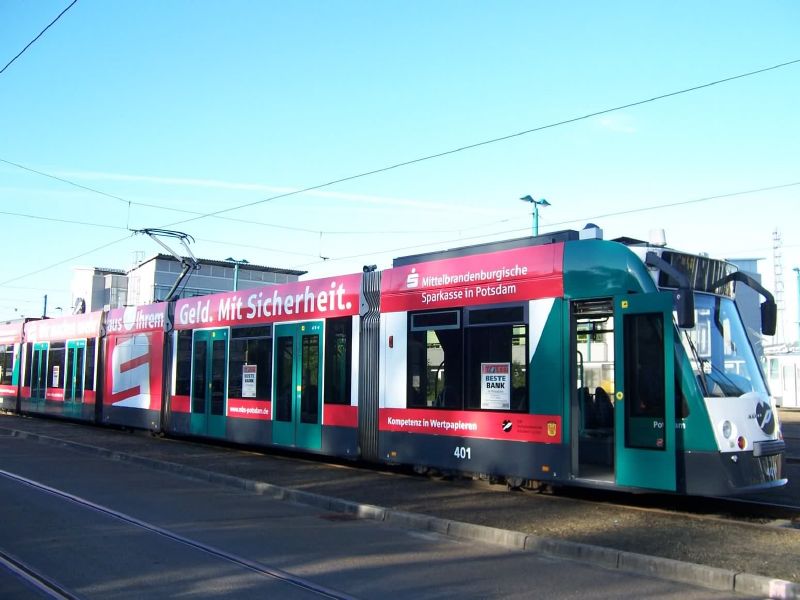

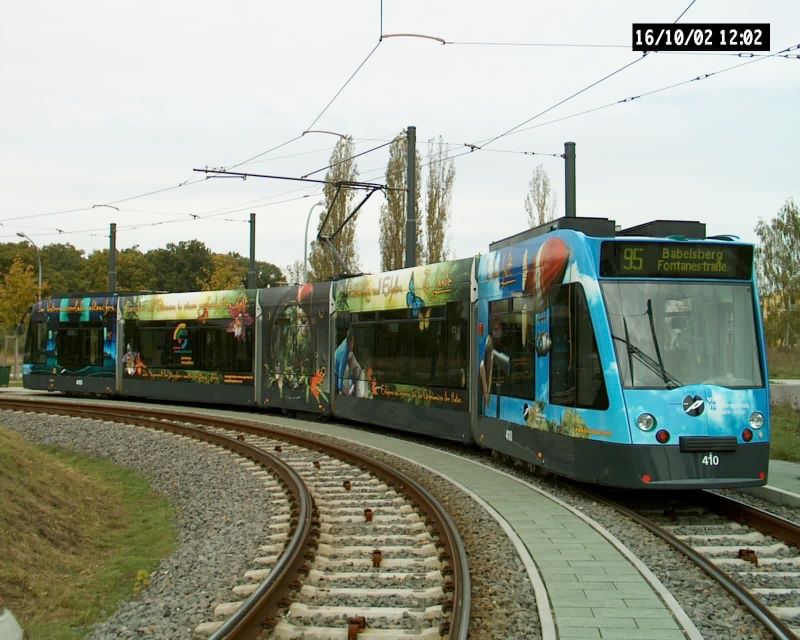

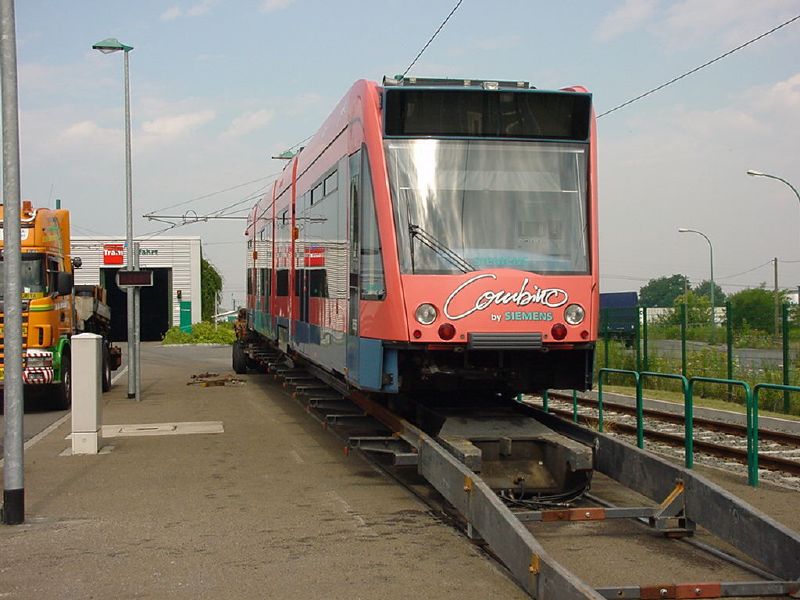

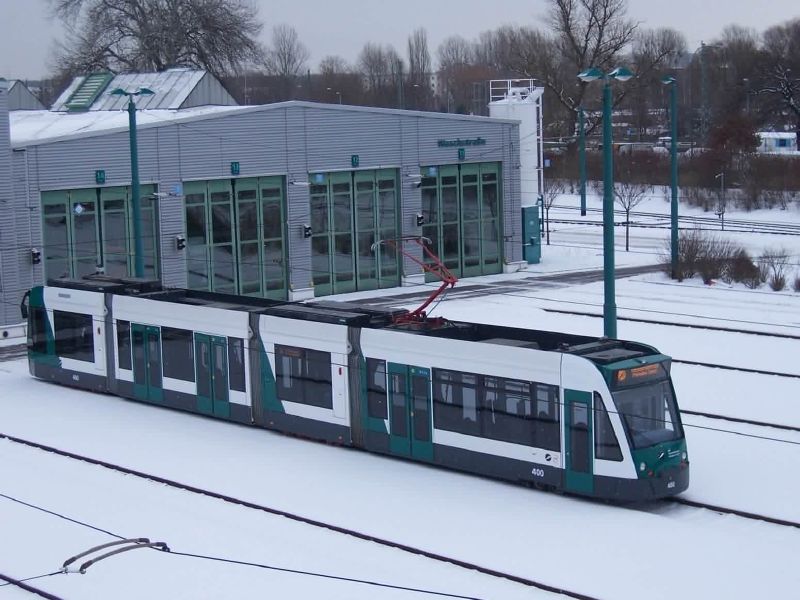

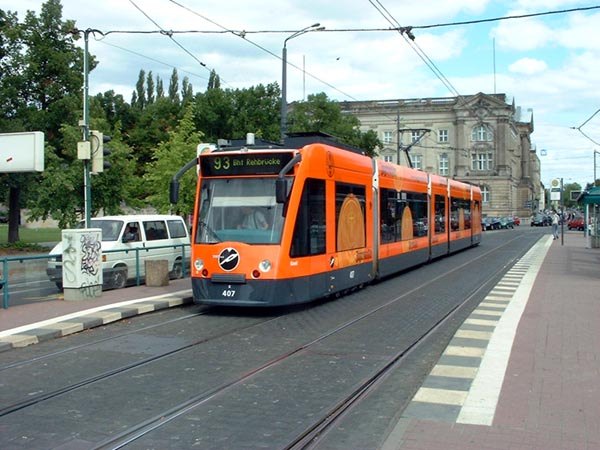

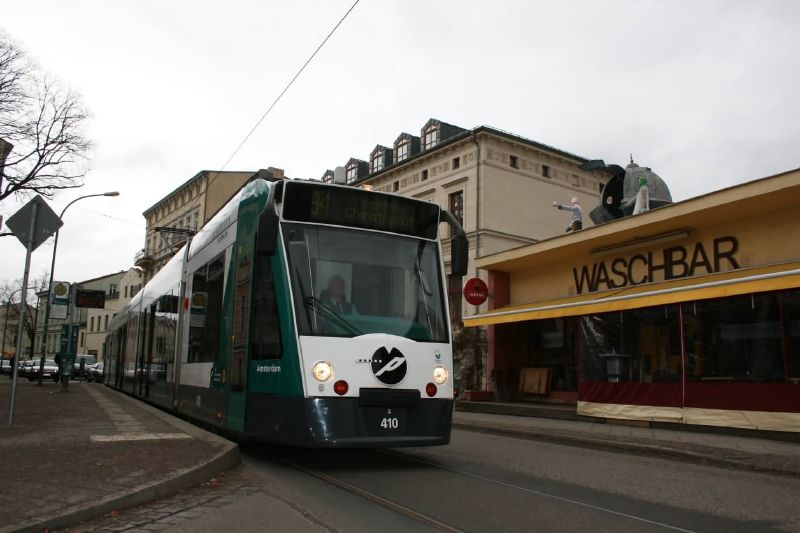

KT4,Combino,Variotram
Operator
VIP VERKEHRSBETRIEB POTSDAM GMBH
(last modified June 26, 2018 )

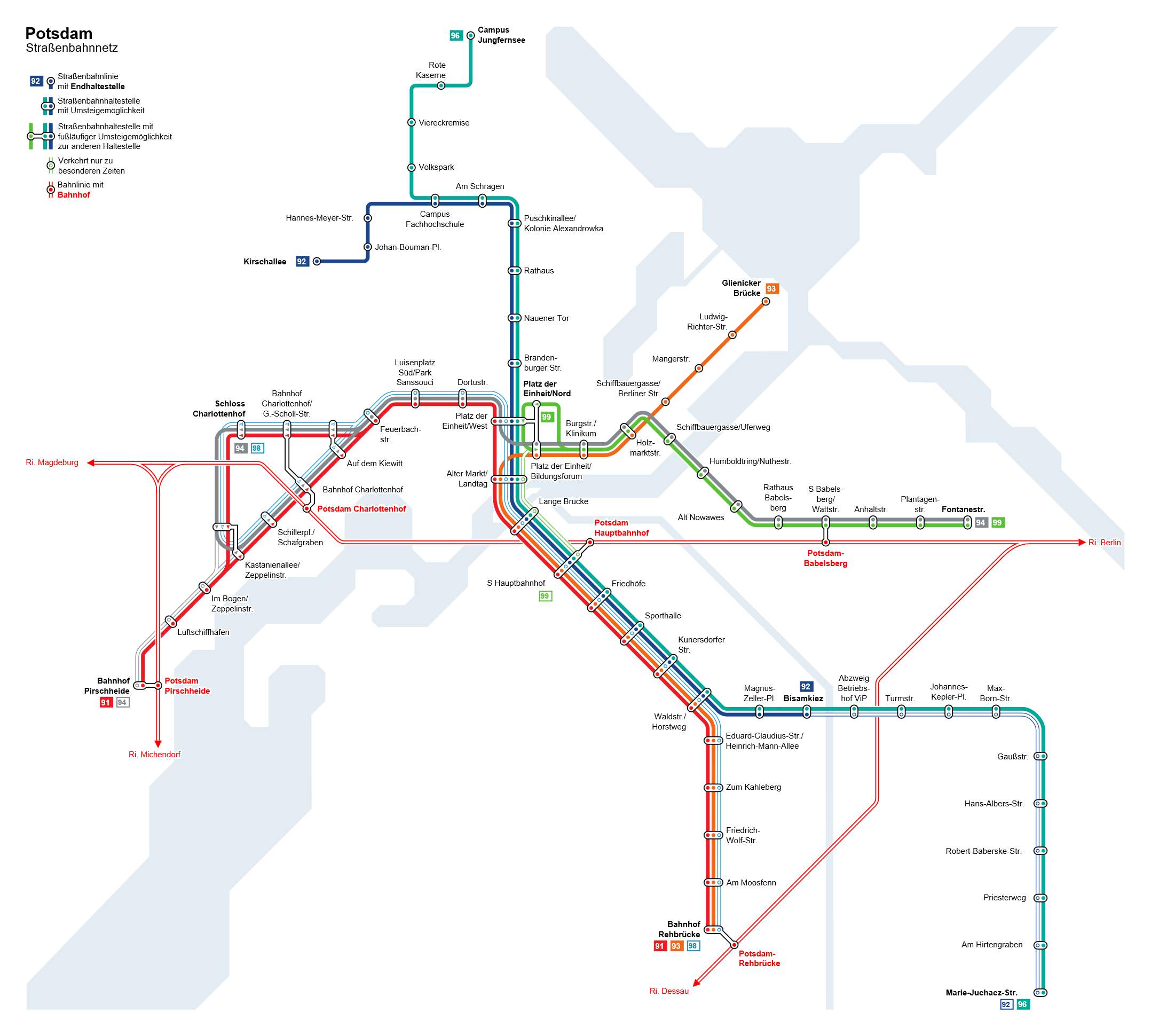

This image is shown smaller (800 x 721 pixels) than its maximum size (2156 x 1940 pixels)
Please click on the map to enlarge it to its maximum size


lrt-tram - potsdam; By CellarDoor85 (Robert Aehnelt)This W3C-unspecified vector image was created with CorelDRAW [CC BY-SA 3.0 (https://creativecommons.org/licenses/by-sa/3.0)], from Wikimedia Commons
