DESCRIPTION
Trondheim tram opened in 1893 (initial horse tram); electrification took place in 1901. The netwok was extended in 1913, 1923-1928, 1933, 1946-1949, 1953 and 1957; it reached its maximum extension during 1958-1968 (4 lines). Important routes/lines closures occurred in 1968 (Singsaker line closure; Sondre Gate-Trondheim Central Station branch closure) and 1983 (Elgeseter line closure), before the final closure of the entire tram network (1988) except for Lian-Lade line.
(last modified February 19, 2017 )
HISTORY
datesection nameline
1893original street-level tram alignment--
1901electrification completed--
1913Elgeseter-railway station;Buran-Voldsminde--
1923Elgeseter line extension--
1924Grakallen Line first segment; with further extensions in 1925 1933 1946 1947 1948 1953 1966--
1926Voldsminde Loop--
1927Studentersamfundet-Ankers Gate Singsaker--
1928passing loop at railway station--
1935expansion to Asbjornsens Gate--
1949passing loop at Dalsenget--
1957network extension--
1958-1968maximum tram network extension: 4 lines--
1968Singsaker line closure; Sondre Gate-Trondheim Central Station branch closure--
1983Elgeseter line closure--
1988closure of the entire tram network except for Lian-Lade line--
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
--
Single line stops
--
Single line avg. distance (km)
--
Total track length (km)
8.8
Total network stops
21
Avg. stop net distance (km)
0.45
Type
steel wheels
Current/Voltage
600 V DC overhead
Type of guide/gauge
metric gauge rails (1000 mm)
Vehicles builder
BN,LHB,STROMMENS VAERKSTED,DUEWAG,SIG,VALMET,WAGGON UNION,TATRA
Model
Charleroi/SNC,GT6,SL79,M6,Tram 2000 Zurich,ST10/ST11,T5A5
Operator
VEOLIA TRANSPORT
(last modified February 19, 2017 )

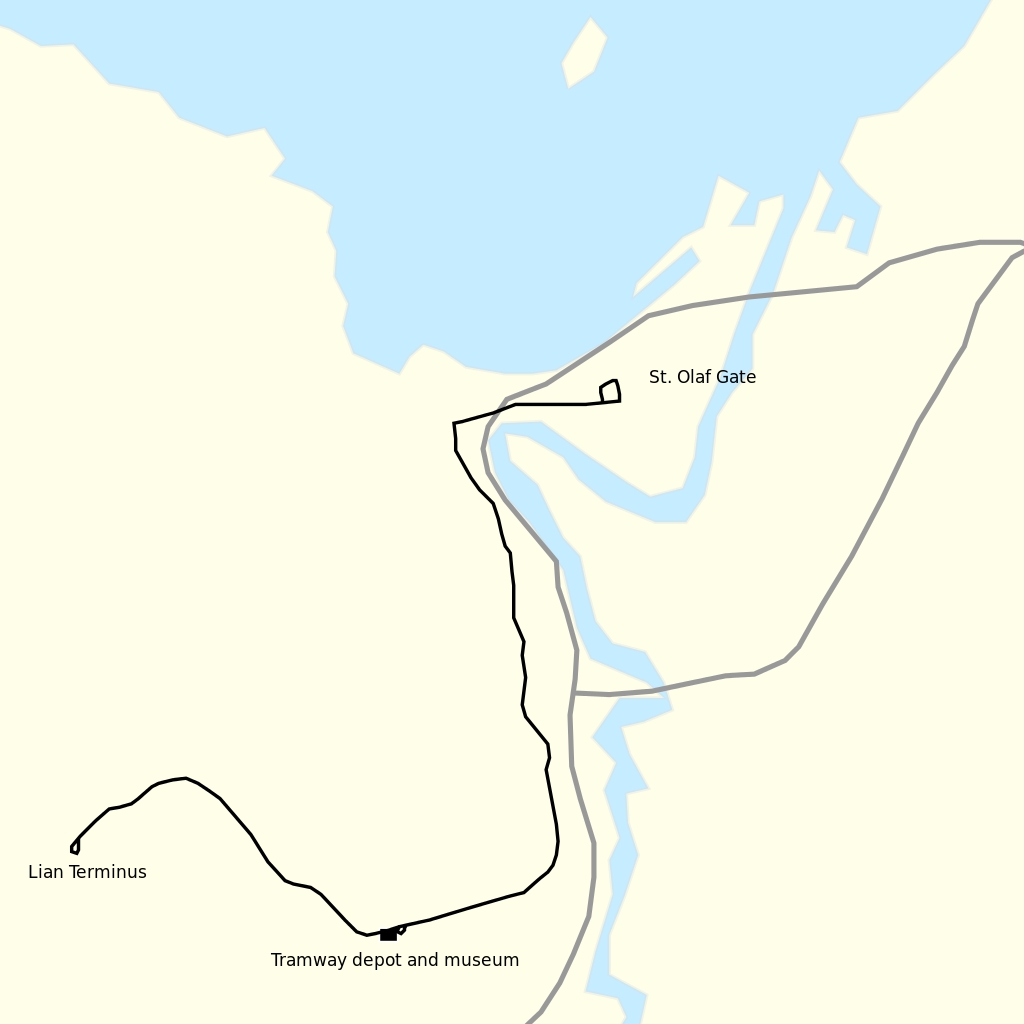

This image is shown smaller (800 x 800 pixels) than its maximum size (1024 x 1024 pixels)
Please click on the map to enlarge it to its maximum size


lrt-tram - trondheim; By Jkan997 [CC BY-SA 3.0 (http://creativecommons.org/licenses/by-sa/3.0) or GFDL (http://www.gnu.org/copyleft/fdl.html)], via Wikimedia Commons
report an error

search a city

LATEST UPDATES TO THIS SITE
apm19-02-2017
lrt-tram27-06-2018
metro26-06-2018
funicular20-02-2017
news20-02-2017

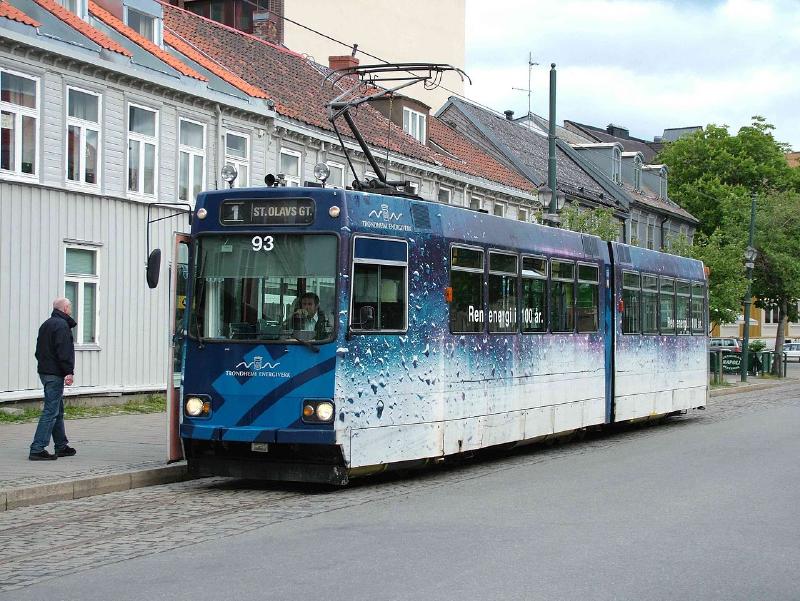

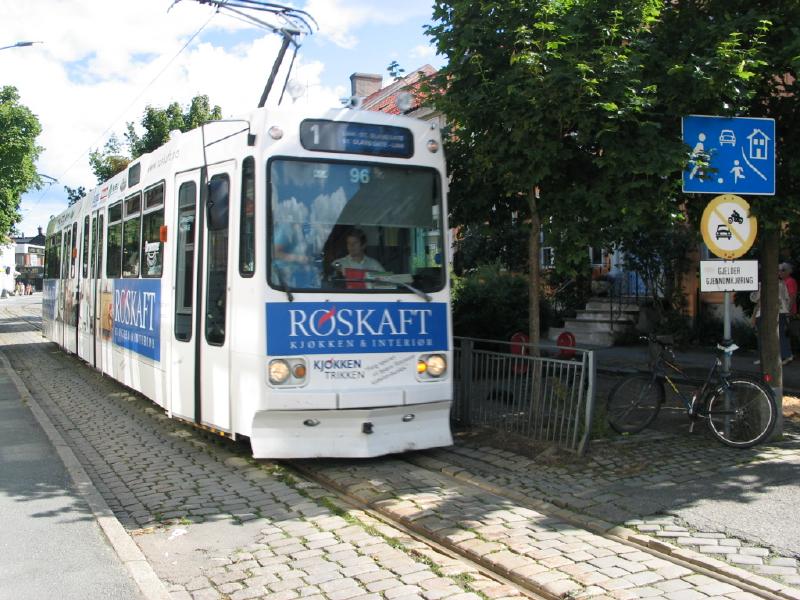

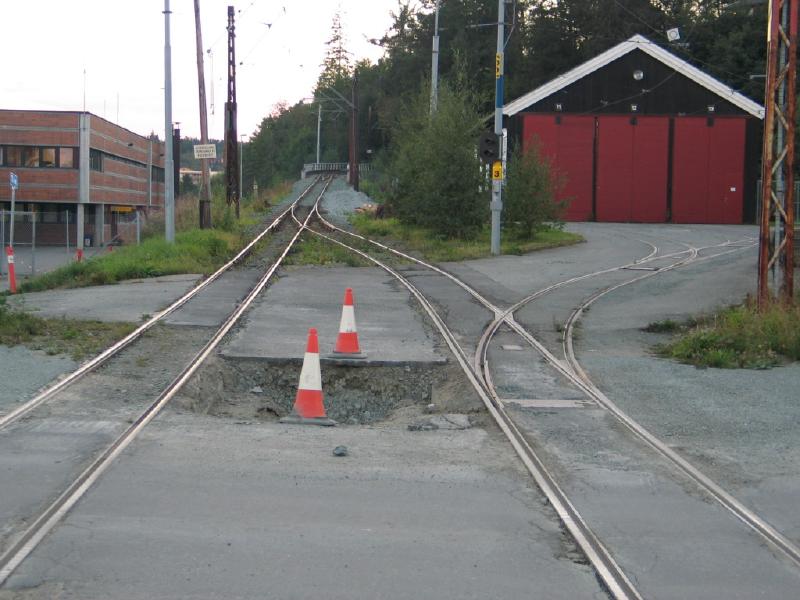

LRT-TRAM Trondheim PHOTO
