DESCRIPTION
Kassel tram opened in 1877 and it was electrified in 1897. The current Kassel transit network includes 7 urban tram routes and 3 suburban LRT routes (Regio Tram); RegioTram service connects Kassel (over its existing tram tracks) with its contiguous agglomerations (over shared DB railway tracks), without the need of any tram to train modal spit. This could be possible with the adoption of hybrid rolling stock (2 types of dual mode rolling stock: diesel/electric, electric 600 V DC/15kV AC) able to run both over unelectrified railway tracks and both over electrified tram tracks and due to the construction of a new tunnel section at Kassel Hbf which allows RegioTram vehicles to leave the railway tracks and continue on urban tram tracks.
This tram-train system has beeen operated since 2001 along Kassel Hbf-Warburg railway route (RT1), where previous Regionalbahn train timetable were served by light rail vehicles (6 vehicles borrowed from Saarbahn, that were replaced in 2005 by Alstom RegioCitadis specifically ordered for Kassel RegioTram service). RT1 shares part of its route (Kassel-Vellmar) with RT4 (Kassel-Wolfhagen), which started its service on December 2006.
RegioTram service began to utilize part of the properly said tram network on Jenuary 2006, connecting Kassel city centre to Hessisch Lichtenau, parly running over the former Lossetalbahn railway track (which was electrified 600 V DC in 1997); differently from the ordinary tram vehicles (that covered the suburban part of this route totally over Losseltalbahn), the diesel-electric RegioTram vehicles at Nieder Kaufungen could use a shorter (and more direct) unelectrified railway segment. Kassel-Hessisch Lichtenau route is currently servede by tram Line 4.
RegioTram service between Kassel Hbf, Baunatal and Melsungen (RT5) started on June 2006; this route was formerly served by local/regional trains.
The current RegioTram system consists in 3 lines: RT1 (Kassel-Warburg), RT4 (Kassel-Wolfhagen) and RT5 (Kassel-Melsungen).
(last modified February 19, 2017 )
HISTORY
datesection nameline
1877initial steam tram opening--
1897electrification completed--
1997Losseltalbahn electrification--
2001Kassel-WarburgRegioTram
2006Kassel-Helsa-Hessisch LichtenauRegioTram
2006Kassel-Baunatal-MelsungenRegioTram
2006Kassel-WolfhagenRegioTram
2007Hauptbahnhof-Scheidemannplatz tunnel--
22-10-2011Hollandische Strasse-Vellmar Nord--
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
Tram:54
RegioTram/Stadtbahn:128
Single line stops
--
Single line avg. distance (km)
--
Total track length (km)
182
Total network stops
127
Avg. stop net distance (km)
Tram:
Stadtbahn:1.45
Type
steel wheels
Current/Voltage
Tram:600 V DC overhead
RegioTram/Stadtbahn:600 V DC overhead (urban sections)/15 KV AC overhead (periurban train sections),600 V DC overhead (urban sections)/diesel DMU (periurban train sections)
Type of guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
DUEWAG,DUEWAG/SIEMENS,BOMBARDIER,ALSTOM
Model
N8C,MGT6D,8NGTW (Flexity Classic),8ZNGTW (Flexity Classic),8NRTW-E/D (Regio-Citadis)
Operator
KASSELER VERKEHRS-GESELLSCHAFT (KVG)
(last modified February 19, 2017 )

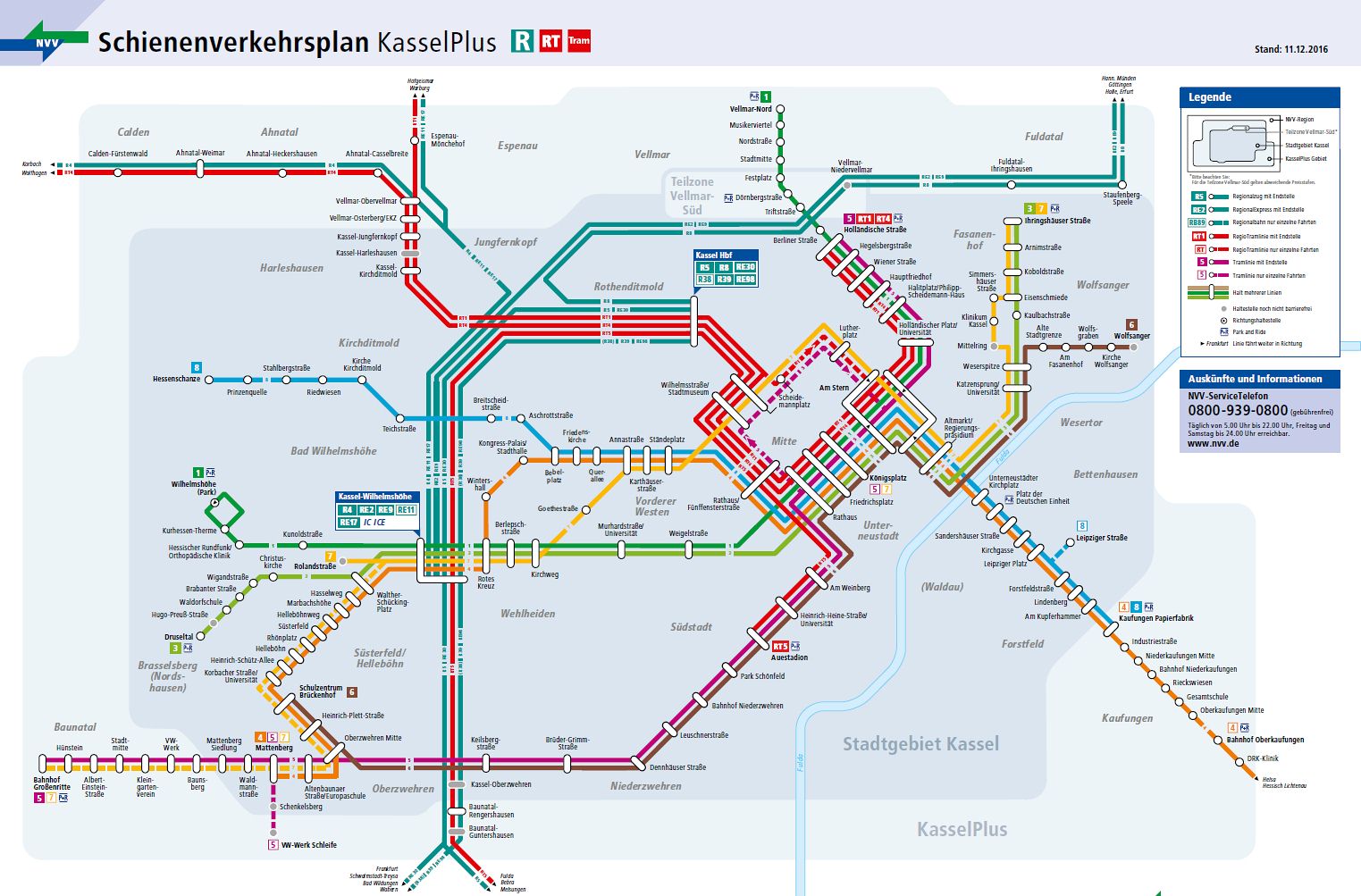

This image is shown smaller (800 x 526 pixels) than its maximum size (1523 x 1003 pixels)
Please click on the map to enlarge it to its maximum size


lrt-tram - kassel; Source: KVG official website
report an error

search a city

LATEST UPDATES TO THIS SITE
apm19-02-2017
lrt-tram27-06-2018
metro26-06-2018
funicular20-02-2017
news20-02-2017

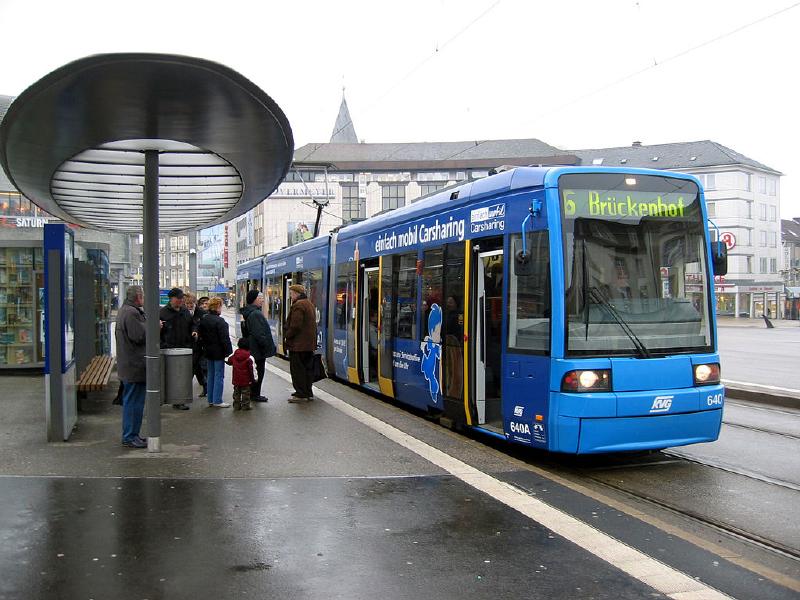

LRT-TRAM Kassel PHOTO
