DESCRIPTION
Valencia transit network combines metro lines and modern tram lines.
Tram T4 line opened in 1994 connecting Empalme (Ademuz) to Pont de Fusta along Pont de Fusta-Grao former existing railway line. It was extended in 1999 (Empalme-RTVV-Fira de Mostres, serving Valencia TV, the Trade Fair - special events only - and the university area), 2005 (RTVV-Mas del Rosari/Terramelar, serving Paterna agglomeration with a double terminal at Mas del Rosari and Terramelar). T4 interchanges with metro Lines 3/9 at Benimaclet and with metro Lines 1/2 at Empalme.
Tram T6 opened in 2007 running from Maritim Serreria (metro Lines 5/7 eastern terminal) to Tossal del Rei, sharing most of the track with tram T4 (Dr Luch/Les Arenas-Primat Reig) except for its northern branch Primat Reig-Orriols-Tossal del Rei; T6 interchanges with metro Lines 3/9 at Benimaclet.
Tram T8 (Tossal del Rei-Maritim-Serreria) opened in 2007; it shares most of its track with T4 (Doctor Lluch/Les Arenes-Primat Reig).
(last modified February 19, 2017 )
HISTORY
datesection nameline
1994Empalme-Pont de FustaLine 4
1999Empalme-RTVV; RTVV-Fira de MostresLine 4
2005TVV-Mas del Rosari/TerramelarLine 4
28-09-2007Tossal del Rei-Tarongers/Marítim-SerreríaLine 6
16-04-2007Maritim Serreria-Marina Reial Joan Carles ILine 8
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
Line 4:15.9
Line 6:10.1
Line 8:1.2
Single line stops
Line 4:33
Line 6:21
Line 8:4
Single line avg. distance (km)
Line 4:0.5
Line 6:0.5
Line 8:0.4
Total track length (km)
20
Total network stops
42
Avg. stop net distance (km)
0.5
Type
steel wheels
Current/Voltage
750 V DC overhead
Guide/gauge
metric gauge rails (1000 mm)
Vehicles builder
SIEMENS/DUEWAG, BOMBARDIER
Model
S3800,S4200 (Flexity Outlook)
Operator
FERROCARRILS DE LA GENERALITAT VALENCIANA
(last modified February 19, 2017 )

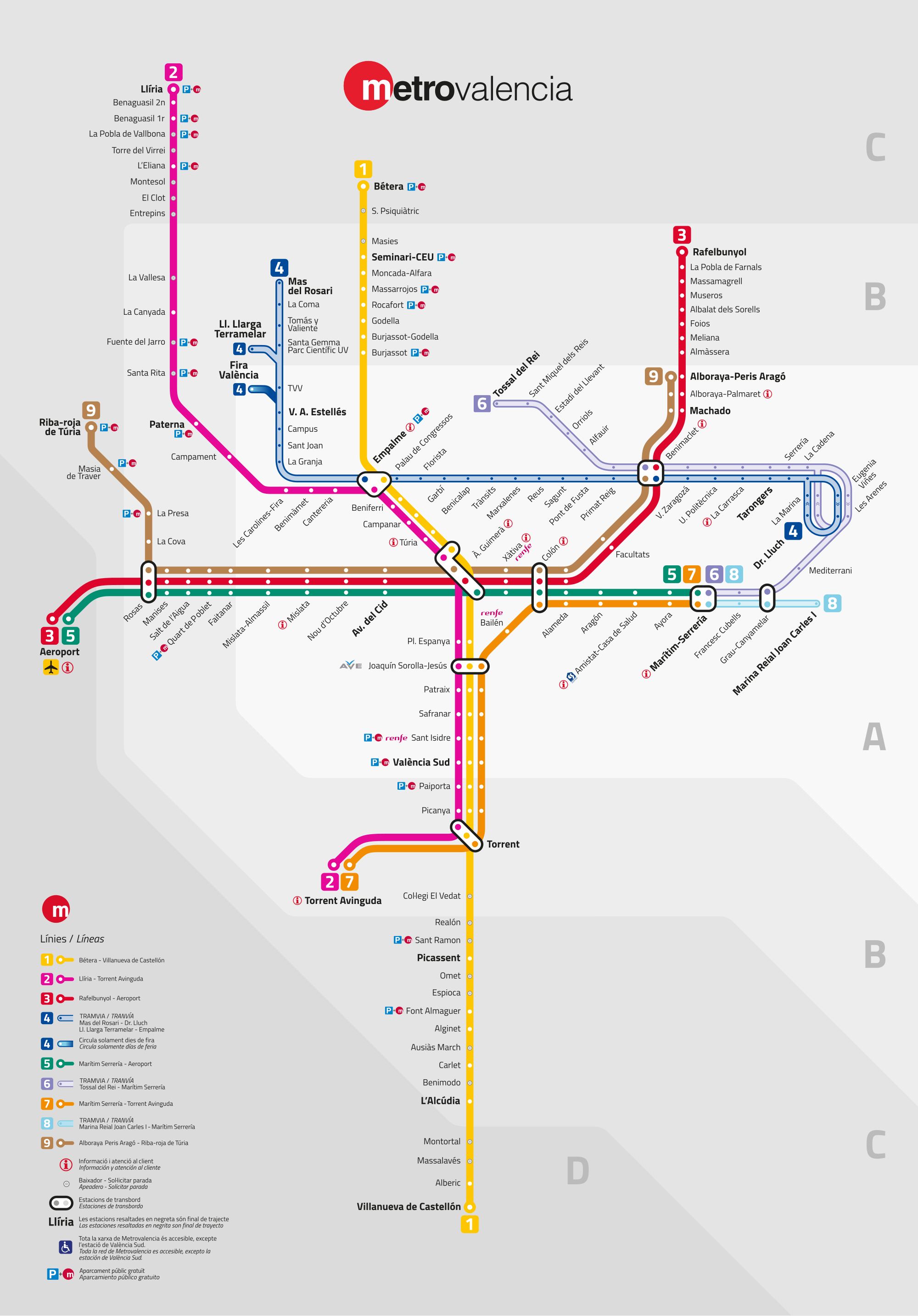

This image is shown smaller (800 x 1.143 pixels) than its maximum size (2000 x 2868 pixels)
Please click on the map to enlarge it to its maximum size


lrt-tram - valencia; By FGV (http://www.metrovalencia.es/page.php?page=145) [FAL], via Wikimedia Commons
report an error

search a city

LATEST UPDATES TO THIS SITE
apm19-02-2017
lrt-tram27-06-2018
metro26-06-2018
funicular20-02-2017
news20-02-2017

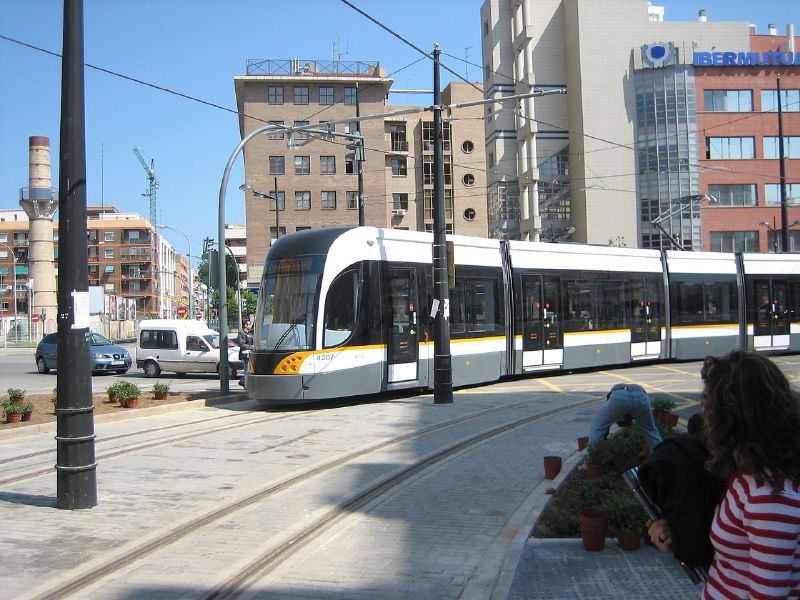

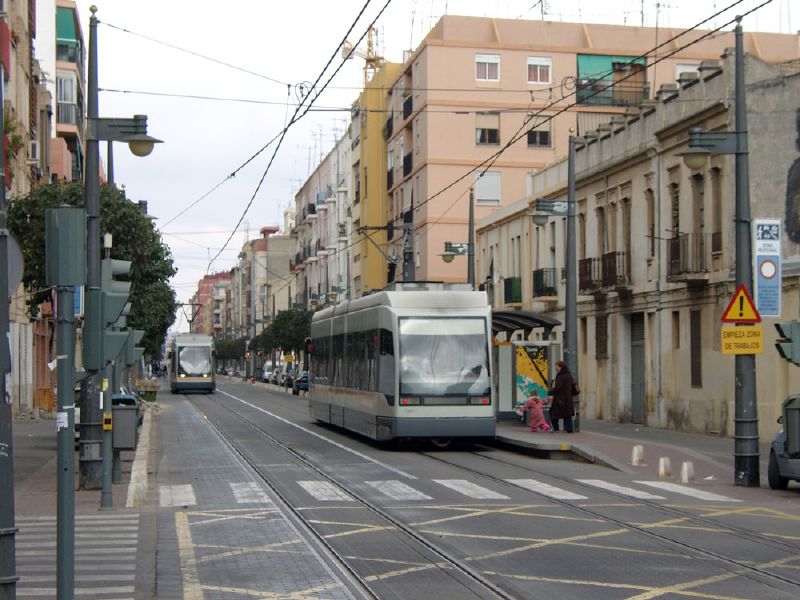

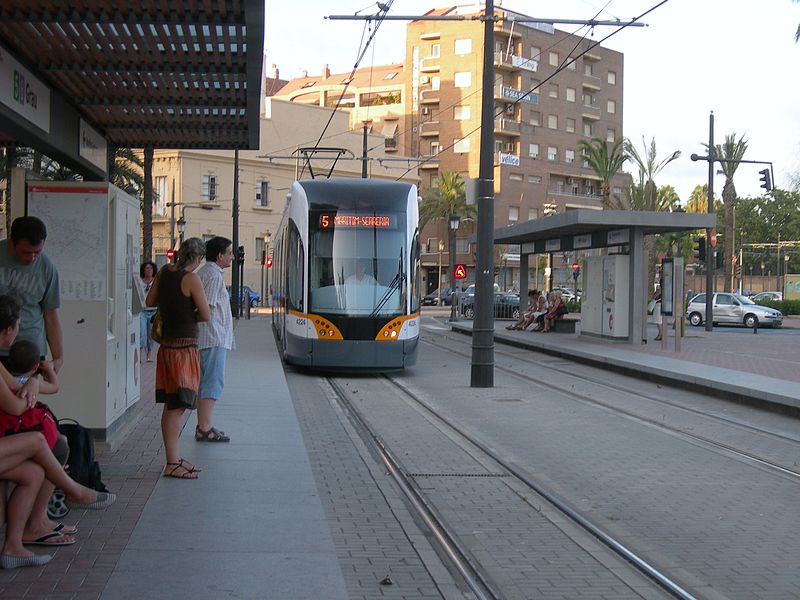

LRT-TRAM Valencia PHOTO
