DESCRIPTION
Noorkoping electric tram opened in 1904; the tram network reached its maximum extension in 1959 (4 lines). In 1966 the tram system was reduced to 2 operating lines (which are currently in service). The last tram extensions were completed in 2006 (Albrektsvagen-Ljura), 2010 (Ljura-Trumpetaregatan) and 2011 (Trumpetaregatan-Kvarnberget).
(last modified February 19, 2017 )
HISTORY
datesection nameline
1904electric tram opening--
1959max network extension: 4 lines--
1966network reduced to 2 lines only--
1975Folkets Park-Bastuban--
1980Bastuban-Klockaretorpet--
2006Albrektsvagen-Ljura--
21-10-2010Ljura-Trumpetaregatan--
21-10-2011Trumpetaregatan-Kvarnberget--
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
Line 1:11.8
Line 2:9.2
Single line stops
Line 1:32
Line 2:26
Single line avg. distance (km)
Line 1:0.4
Line 2:0.35
Total track length (km)
17.2
Total network stops
50
Avg. stop net distance (km)
0.35
Type
steel wheels
Current/Voltage
750 V DC overhead
Type of guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
DUEWAG,ADTRANZ,BOMBARDIER
Model
M97,M98,M06 (Flexity Classic)
Operator
VEOLIA TRANSPORT
(last modified February 19, 2017 )

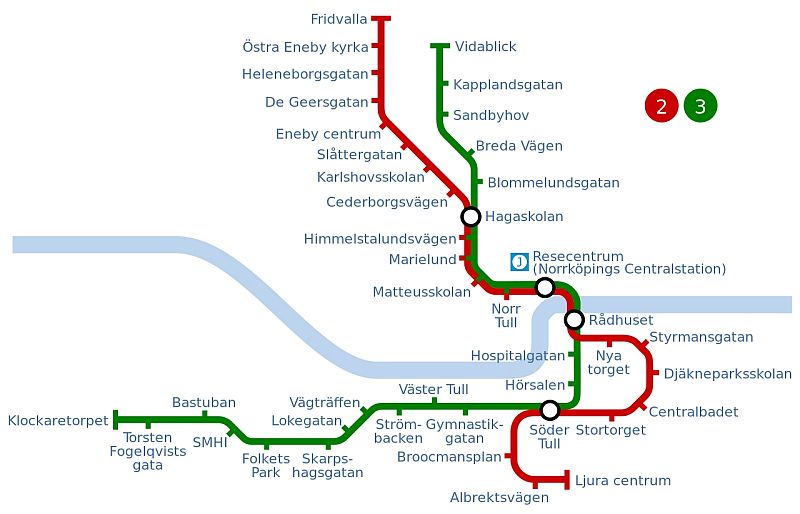

this map is shown here at its maximum resolution (800 x 514)


lrt-tram - norrköping; By David Arthur (Own work) [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC BY-SA 4.0-3.0-2.5-2.0-1.0 (http://creativecommons.org/licenses/by-sa/4.0-3.0-2.5-2.0-1.0)], via Wikimedia Commons
report an error

search a city

LATEST UPDATES TO THIS SITE
apm19-02-2017
lrt-tram27-06-2018
metro26-06-2018
funicular20-02-2017
news20-02-2017

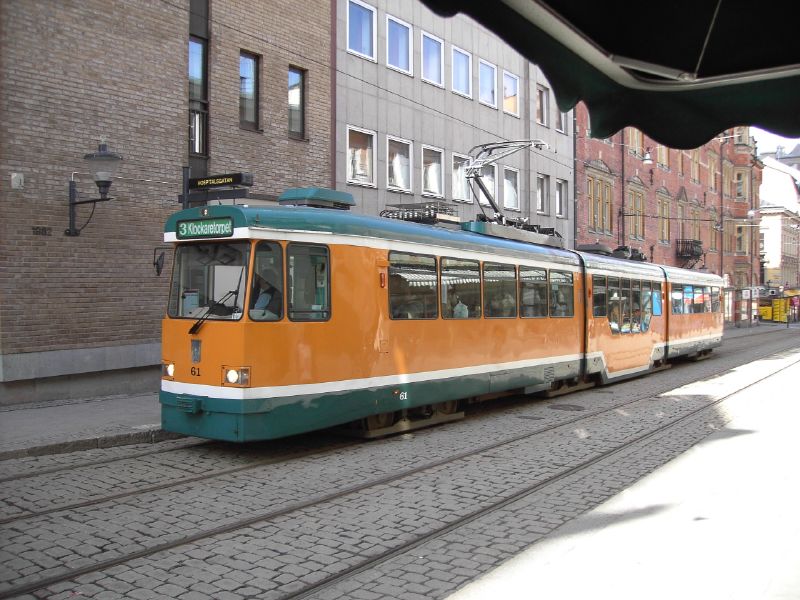

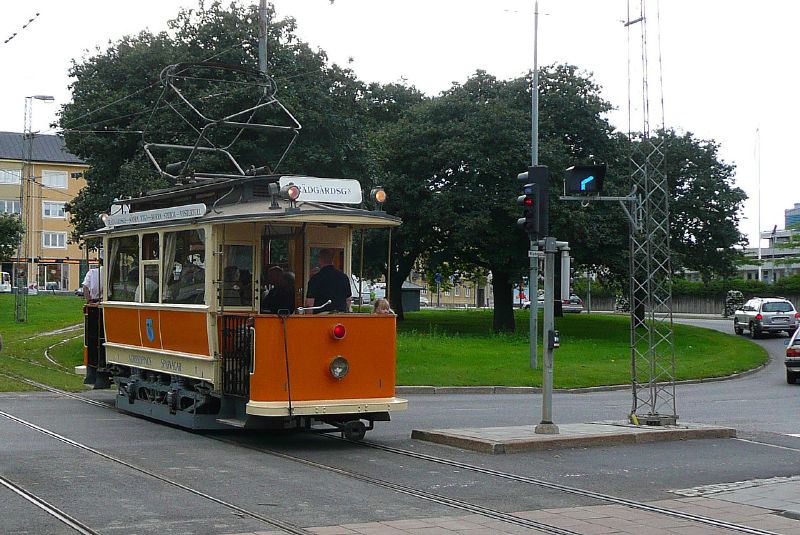

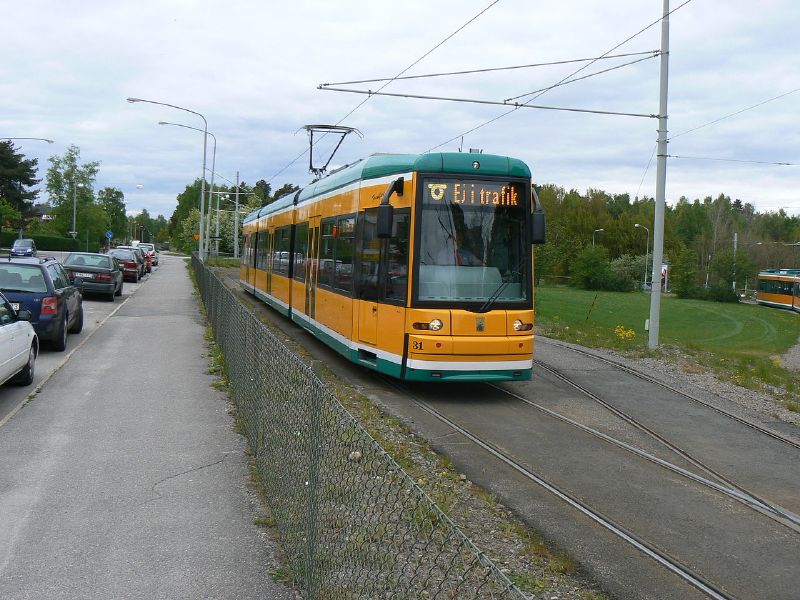

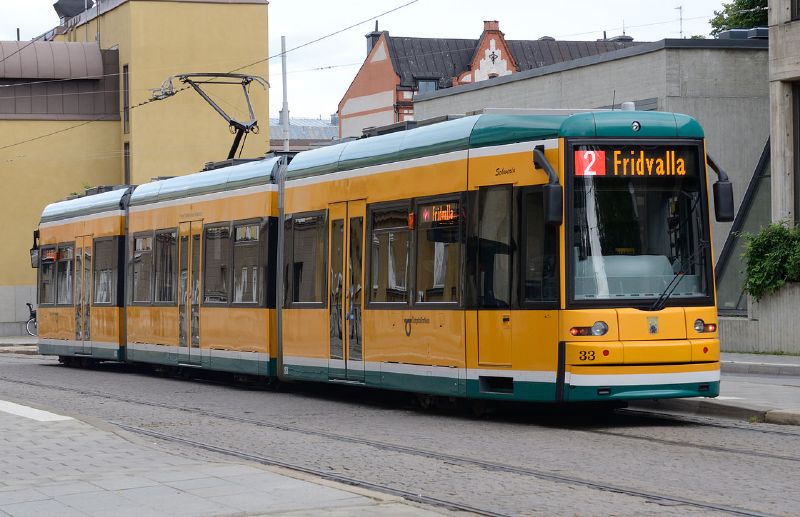

LRT-TRAM Norrköping PHOTO
