DESCRIPTION
Despite its low number of inhabitants (50'000), Nordhausen has a metric gauge tram network articulated in 2 lines (plus a tram-train line: Line 10); the first sections of this original electric tram system opened in 1900. The last tram extensions were completed in 1983 (Am Alten Tor-Parkallee), 1993 (Theaterplatz-Nordhausen Ost) and 2004 (Ilfeld-Krankenhaus). The core point of the system is located at the railway station, where a double track ring allow urban electric trams (running over the internal track) and diesel trains serving Nordhausen-Ilfed railway line (running over the external track) to invert their route at the terminal. This local railway currently adopts a dual rolling stock (Siemens Combino-Duo tram-train cars, able to run both in tram mode at 600 V DC and both in diesel mode/DMU), in order to allow some of these trains (serving tram-train/Line 10) to continue their route over the tram tracks without any modal split at the railway station.
(last modified February 19, 2017 )
HISTORY
datesection nameline
1900initial electric tram opening--
1983Am Alten Tor-Parkallee--
1993Theaterplatz-Nordhausen Ost--
2004Ilfeld-Krankenhaus--
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
Line 1:3.2
Line 2:4.6
Line 10:14.6
Single line stops
--
Single line avg. distance (km)
--
Total track length (km)
18
Total network stops
32
Avg. stop net distance (km)
0.6
Type
steel wheels
Current/Voltage
600 V DC overhead (urban sections)/diesel DMU (periurban train sections)
Type of guide/gauge
metric gauge rails (1000 mm)
Vehicles builder
SIEMENS
Model
Combino,Combino Duo
Operator
STADTWERKE NORDHAUSEN
(last modified February 19, 2017 )

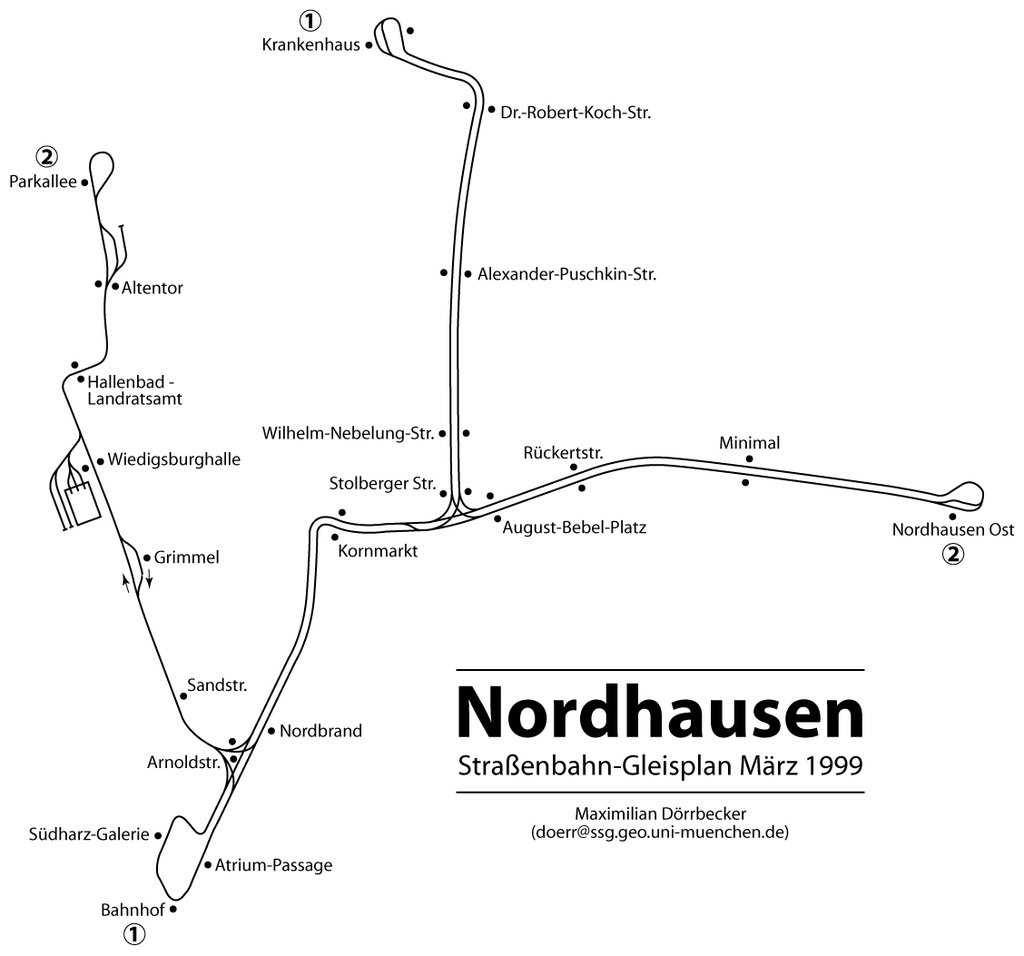

This image is shown smaller (800 x 748 pixels) than its maximum size (1024 x 956 pixels)
Please click on the map to enlarge it to its maximum size


lrt-tram - nordhausen; By Maximilian Dorrbecker, via Wikimedia Commons
