DESCRIPTION
Karlsruhe tram opened in 1877 (initial horse tram); its electrification was completed in 1900.
In years '80s it was planned to integrate the urban tram network with the suburban/regional local railways ("Karlsruhe Model"), in order to extend the urban tram routes to the suburban areas along existing railway tracks without the need of any tram to train modal spit; these suburban/regional railway tracks had to be utilized in track sharing by tramcars and trains.
The first tram-train route opened on 25 September 1992 (Karlsruhe-Bretten, with an automatic DC/AC voltage transition by the tramcars that operates along the tram-train shared track sections); in the next years, other tram-train routes were activated (Karlsruhe-Worth, Karlsruhe-Bissingen, Karlsruhe-Baden/Baden, Karlsruhe-Eppingen-Heilbronn, Bruchsal-Menzingen/Odenheim, etc.). The growt of the tram-train system was accompanied by the armonization of railways and LRT/tram timetables along the shared routes; the remarkable commercial success of tram-train operations brought its extension on other sections of national (DBAG) or private (SWEG South-West German Rys.) freight railways tracks.

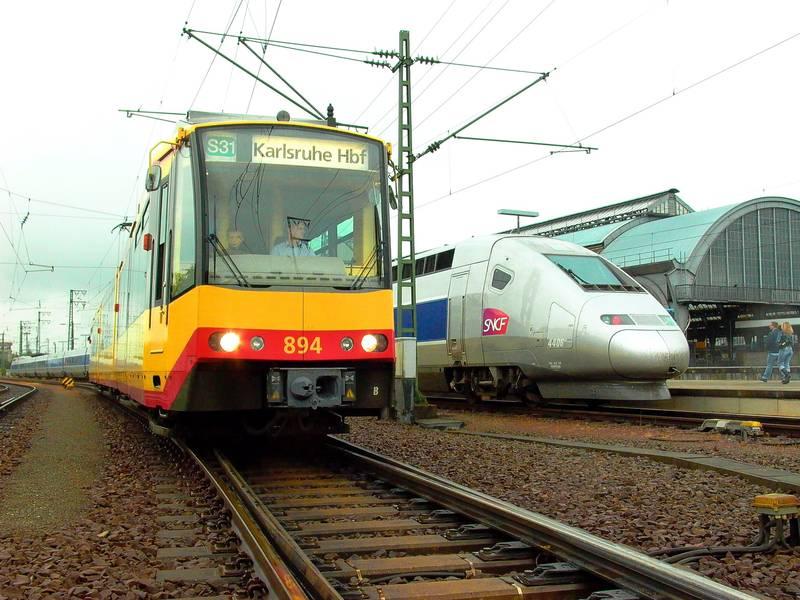

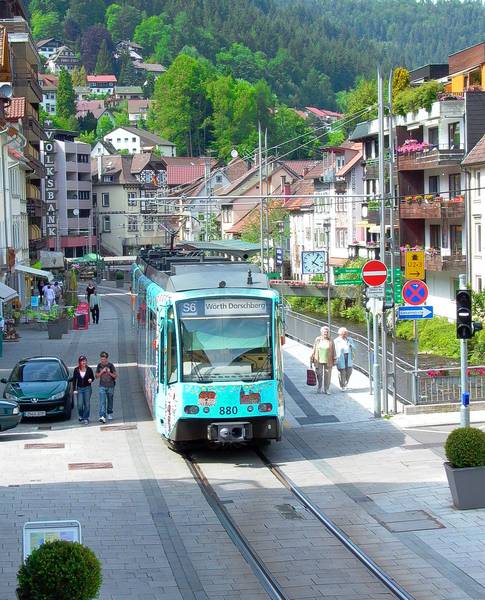

Karlsruhe system currently combines urban and suburban LRT/tram lines, with many track sections operated in track-sharing with regional or national trains along existing railway infrastructures (S1: Hochstetten-Karlsruhe Hbf-Bad Herrenalb; S2: Spock-Karlsruhe Marketplatz-Rheinstetten; S4:Achern-Karlsruhe Hbf-Ohringen; S5: Bietingheim/Bissingen-Karlsruhe Marketplatz-Worth; S6: Pforzheim-Neuenburg-Bad Wilbad; S11: Ittersbach-Karlsruhe Hbf-Hochstetten; S31: Freudenstadt-Karlsruhe Hbf-Odenheim; S32: Achern-Karlsruhe Hbf-Menzingen; S41: Karlsruhe Tullastrasse-Eutingen; S51: Karlsruhe Hbf-Germersheim; S52: Karlsruhe Marktplatz-Germersheim).
(last modified February 19, 2017 )
HISTORY
datesection nameline
1877initial horse tram opening--
1900electrification completed--
25-09-1992Karlsruhe-Bretten--
1994Karlsruhe-Rastatt;Karlsruhe-Bruchsal;Bretten-Bruchsal--
1996Karlsruhe-Baden Baden--
1997Karlsruhe-Pforzheim;Bretten-Eppingen;Karlsruhe-Worth--
1998Bruchsal-Odenheim--
1999Bretten-Muhlacker;Pforzheim-Bietigheim-Bissingen;Eppingen-Heilbronn Hbf--
2001Heilbronn Hbf-Heilbronn centre--
2002Rastatt-Forbach;Pforzheim-Bad Wildbad--
2003Forbach-Freudenstadt--
2004Baden Baden-Achern--
2005Heilbronn-Ohringen--
2006Blankenloch-Spock;Freudenstadt-Eutingen--
2008new depot in Karlsruhe Oststadt--
09-09-2012Kongresszentrum-Philipp Reis Strasse-Tullastrasse-Rintheimer Strasse--
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
Tram:71.5
Stadtbahn:460
Single line stops
Tram:--
Stadtbahn:--
Single line avg. distance (km)
Tram:--
Stadtbahn:--
Total track length (km)
528
Total network stops
--
Avg. stop net distance (km)
--
Type
steel wheels
Current/Voltage
Tram:750 V DC overhead

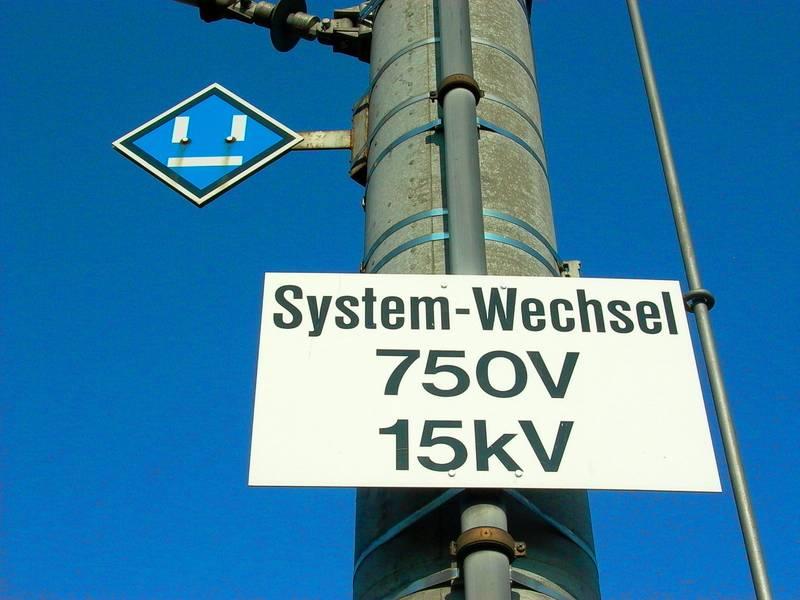

Stadtbahn:750 V DC overhead (urban sections)/15 KV AC overhead (periurban train sections)
Type of guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
Tram:WAGGON UNION/BBC,DUEWAG/SIEMES/ADTRANZ,VOSSLOH
Stadtbahn:WAGGON UNION/DUEWAG/BBC/ABB,DUEWAG/BBC/ABB,DUEWAG/BBC/HENSCHEL,DUEWAG/SIEMENS/ADTRANZ/BOMBARDIER,BOMBARDIER
Model

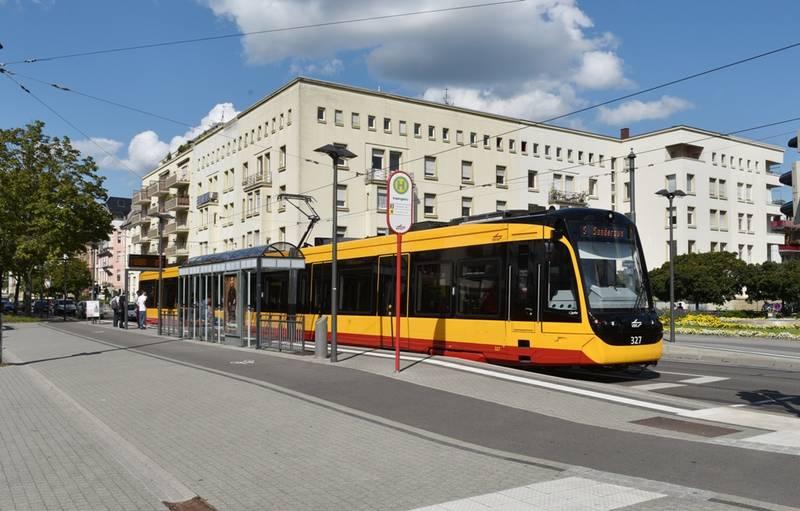

Tram:GT8-70C,GT6-70D/N,NET 2012
Stadtbahn:GT6-80C,GT8-80C,GT8-100C/2S,GT8-100D/2S-M,ET 2010
Operator
KVV
(last modified February 19, 2017 )

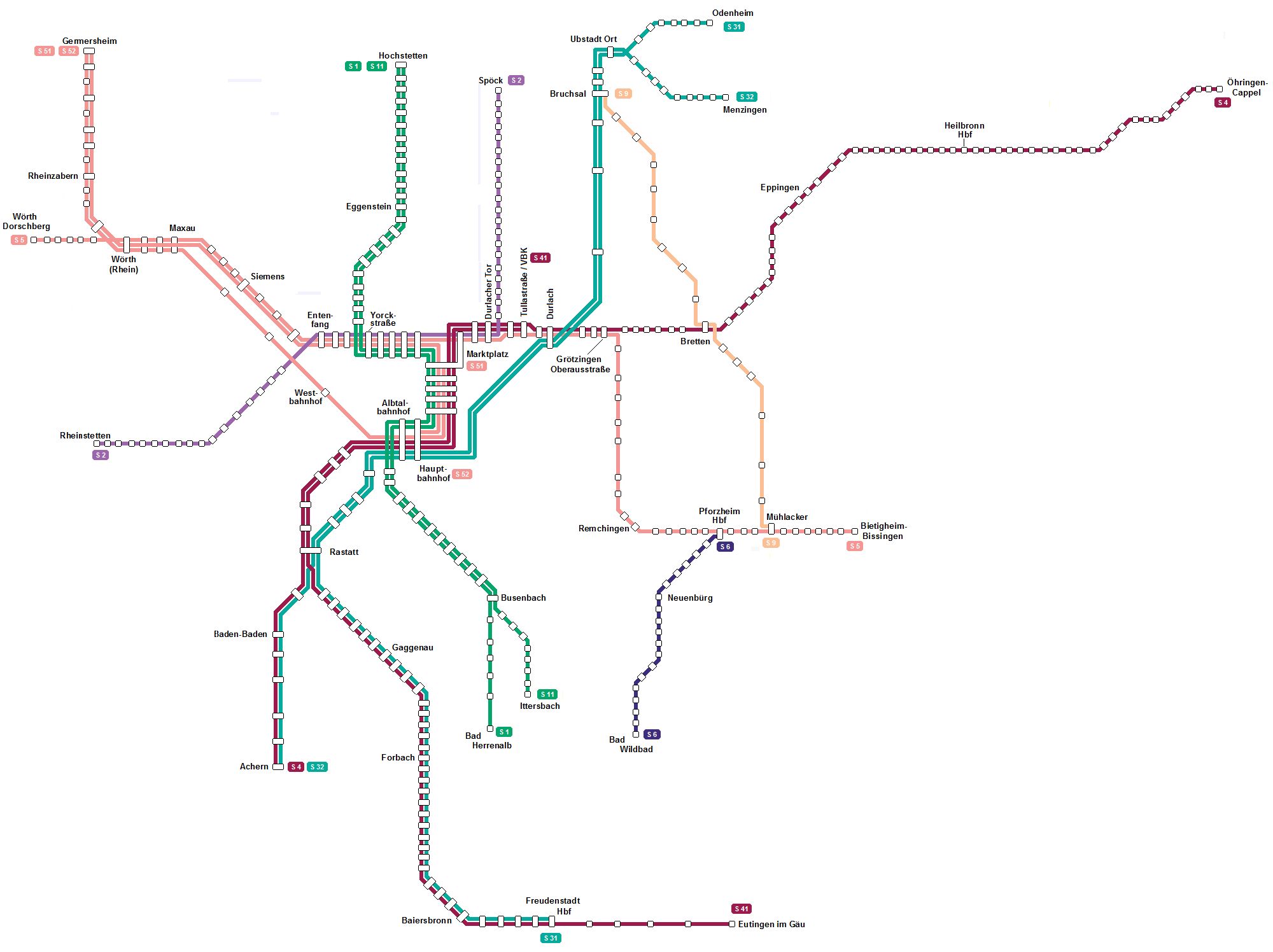

This image is shown smaller (800 x 597 pixels) than its maximum size (2000 x 1496 pixels)
Please click on the map to enlarge it to its maximum size


lrt-tram - karlsruhe; By Benutzer:WikiNight + Benutzer:bahnfan1 (Own work (Original text: selbst erstellt)) [Public domain], via Wikimedia Commons
report an error

search a city

LATEST UPDATES TO THIS SITE
apm19-02-2017
lrt-tram27-06-2018
metro26-06-2018
funicular20-02-2017
news20-02-2017

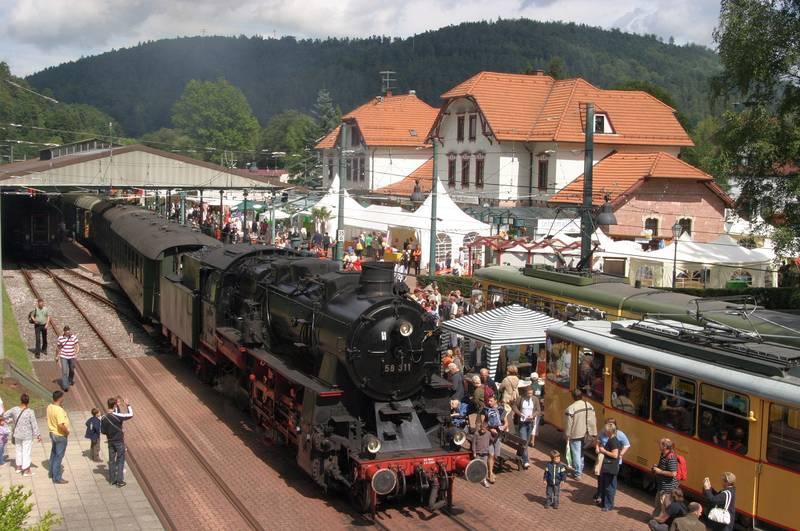

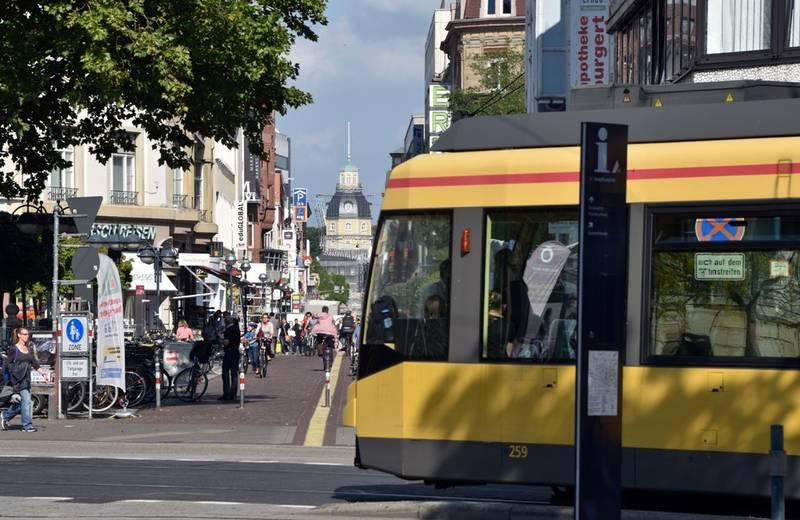

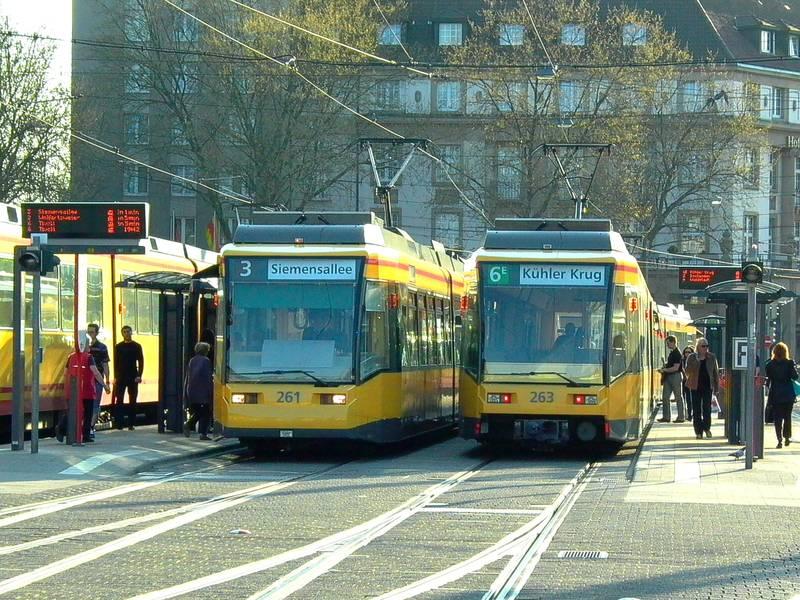

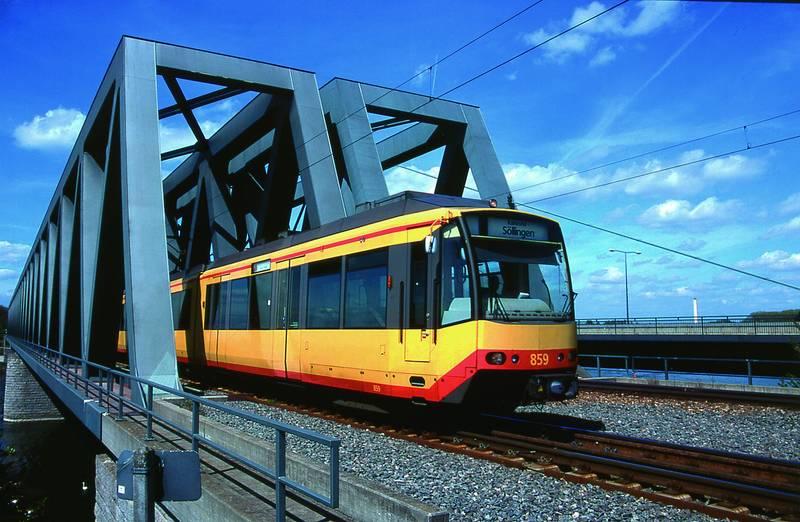

LRT-TRAM Karlsruhe PHOTO
