Official Logo | Barcelona [lrt-tram]
Country: Spain
Line: Tramvia Blau (heritage tram), Trambaix (T1, T2, T3), Trambesos (T4, T5, T6)
Inhabitants: City 1600000, District 4700000
|
DESCRIPTION

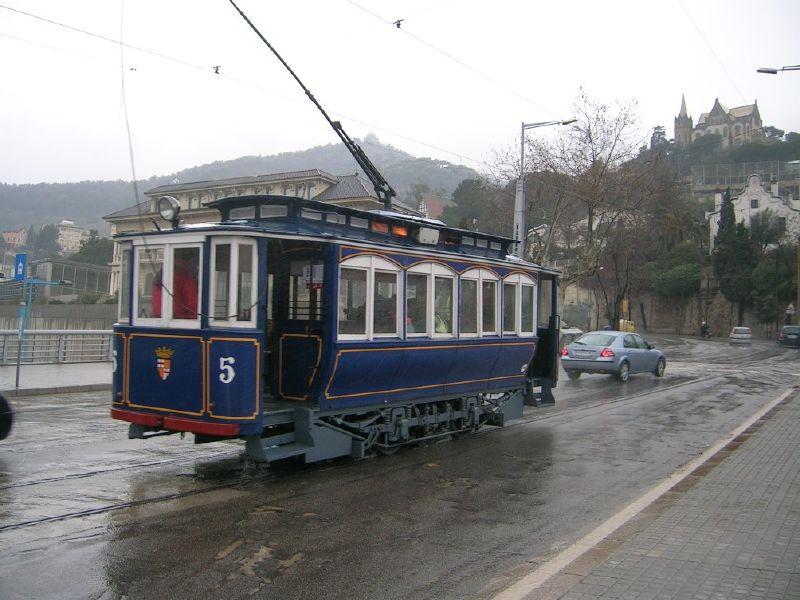

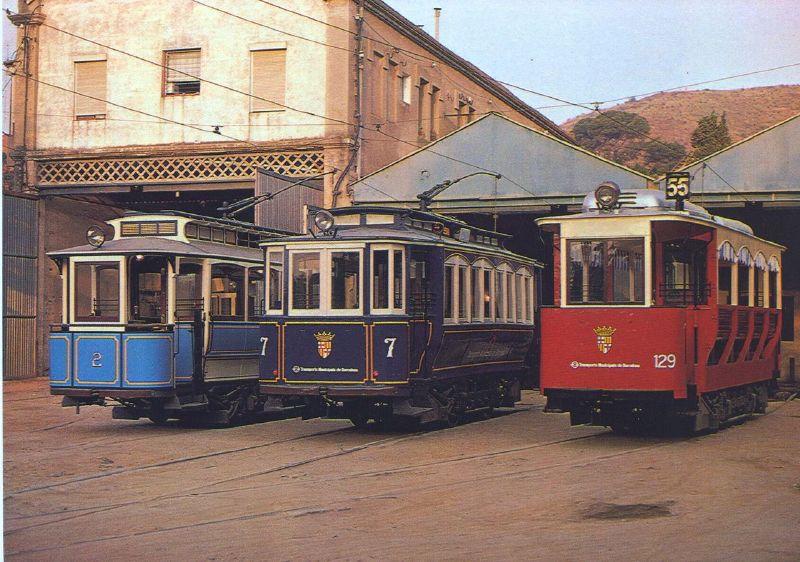

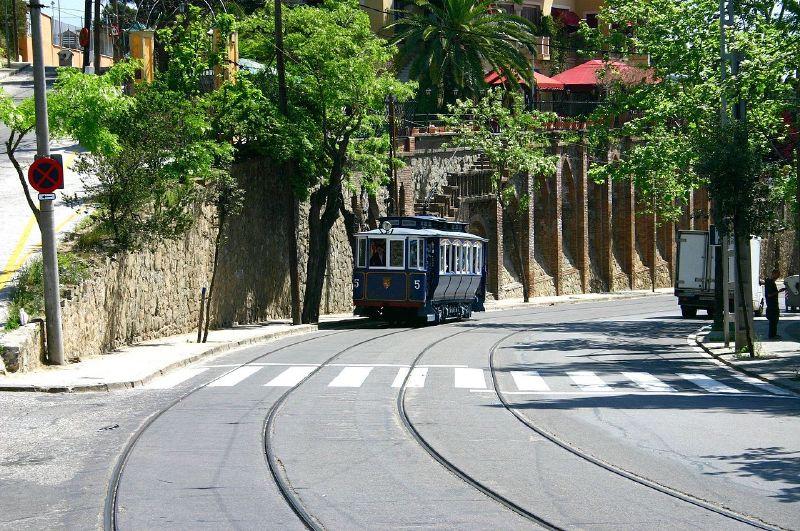

A short section of the original tram network (Tram Blau, 1901) still operates in Barcelona as an heritage/touristic line.

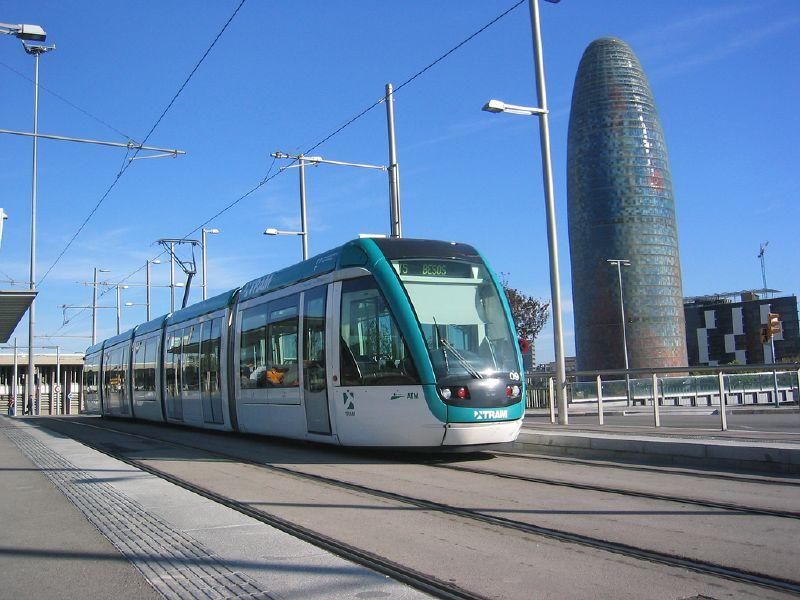

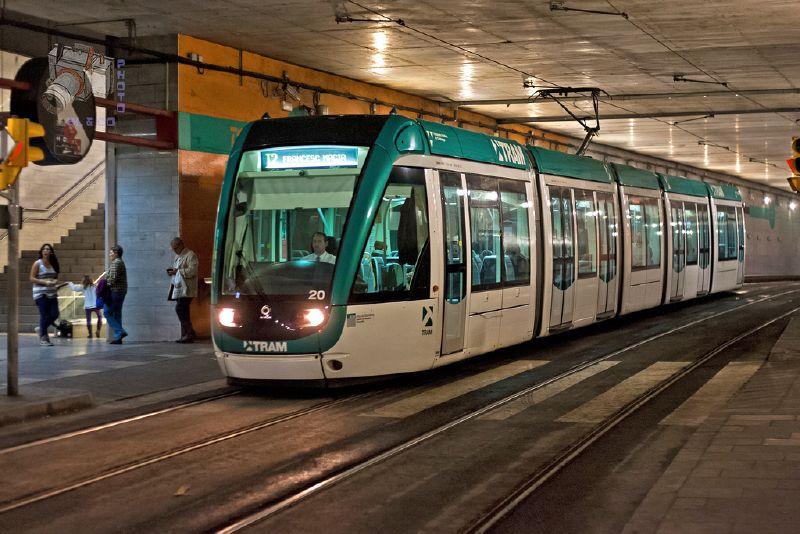

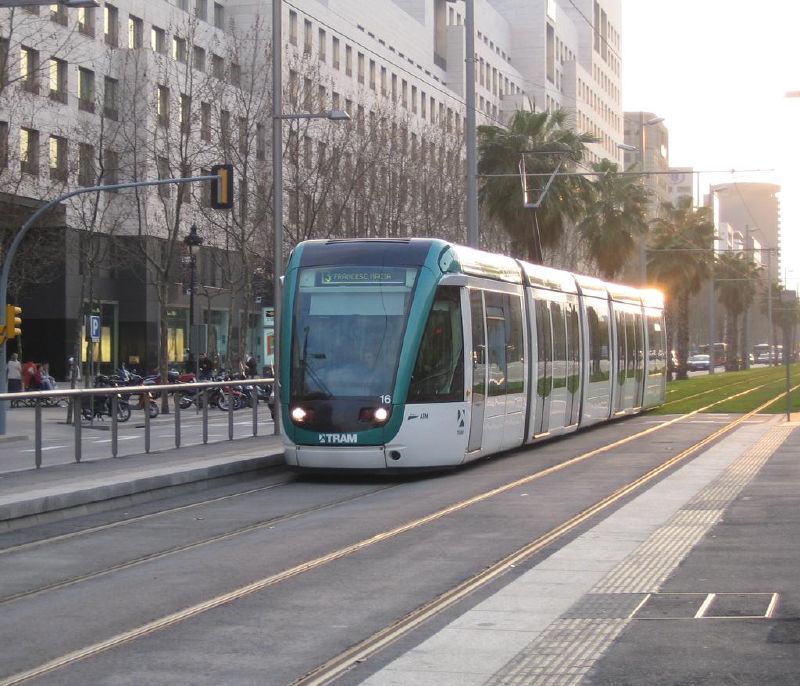

The modern tram network consists in 2 routes (TramBaix, TramBesos) both opened in 2004. The first line (TramBaix) passes through the city centre (Avenida Diagonal-Placa Reina Maria Cristina); an important interchange (metro L5, RENFE railways) underground stop is located at Cornella Centre.
The second line (TramBesos) is articulated in 2 branches (which share a 2 km common segment in Glories): Arc de Trionf-Gorg (via Glories and Besos), Olympic Village-S. Adria de Besos (via Glories). Important interchange stops are located at Glories (metro L1), Ciutadella/Vila Olimpica (metro L4), Selva de Mar (metro L4), El Maresme (metro L4), Besos (metro L4) and Estaciò de Sant Adria (RENFE railways).
(last modified February 19, 2017 )
HISTORY| date | section name | line | | | 1872 | first tram section opening | -- | | 1901 | Plaça del Doctor Andreu-Plaça Kennedy | Tram Blue | | 03-04-2004 | Francesc Macia-Montesa | Trambaix | | 29-05-2004 | Montesa-Sant Mart@igrave; de l'Erm | Trambaix | | 05-01-2006 | Sant Mart@igrave; de l'Erm-Consell Comarcal/Torreblanca | Trambaix | | 21-03-2007 | Torreblanca-Sant Feliu Consell Comarcal | Trambaix | | 08-05-2004 | Glories-St. Adria de Besos | Trambesos | | 14-07-2004 | Ciutadella-Vila Olimpica | Trambesos | | 14-10-2006 | Besos-Glories | Trambesos | | 06-05-2007 | Besos-Sant Joan Baptista | Trambesos | | 08-09-2007 | Sant Joan Baptista-Gorg | Trambesos |
(last modified February 19, 2017 )
| TECHNICAL DATA
Single line length (Km)
Tramvia Blau:1.3
Trambaix:15.1
Trambesos:18.1
Single line stops
Tramvia Blau:10
Trambaix:29
Trambesos:26
Single line avg. distance (km)
Tramvia Blau:0.15
Trambaix:0.5
Trambesos:0.75
Total track length (km)
34.5
Total network stops
65
Avg. stop net distance (km)
0.55
Type
steel wheels
Current/Voltage
Tramvia Blau:--
Trambaix,Trambesos:750 V overhead
Type of guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
Tramvia Blau:--
Trambaix,Trambesos:ALSTOM
Model
Tramvia Blau:--
Trambaix,Trambesos:Citadis 302
Operator
TMB
|
(last modified February 19, 2017 ) |

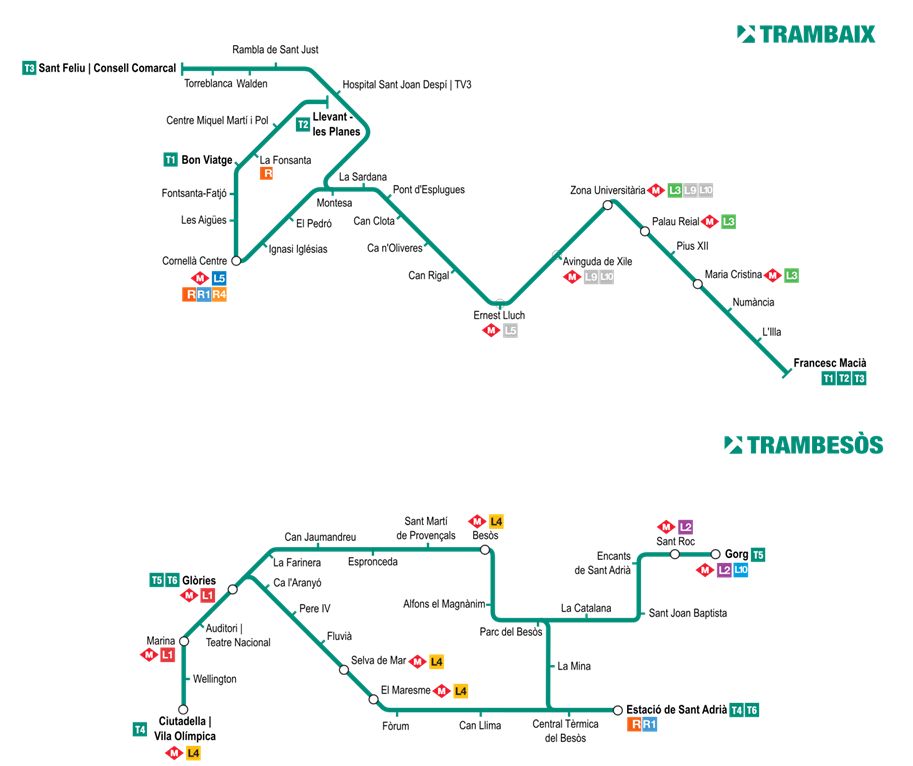

This image is shown smaller (800 x 672 pixels) than its maximum size (913 x 766 pixels)
Please click on the map to enlarge it to its maximum size lrt-tram - barcelona; Modified by Metrotram.it (own work). Sources: TRAMBAIX/By Vilarrubla (Own work) [CC BY-SA 3.0 (http://creativecommons.org/licenses/by-sa/3.0) or GFDL (http://www.gnu.org/copyleft/fdl.html)], via Wikimedia Commons;TRAMBESOS/By Shaku-kun (Own work) [CC BY-SA 3.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons
|
|
