please, hold the mouse on the logo | Kiev [lrt-tram]
Country: Ukraine
Line: Line 1, Line 2, Line 3, Line 4, Line 5, Line 7, Line 8, Line 11, Line 12, Line 14, Line 15, Line 16, Line 18, Line 19, Line 22, Line 23, Line 25, Line 28, Line 29, Line 32, Line 33, Line 35
Inhabitants: City 2600000, District 3200000
|
DESCRIPTION
Kiev tram opened in 1891 (initial horse tram); steam tramcars operated during 1892-1904 before network electrification (1904).

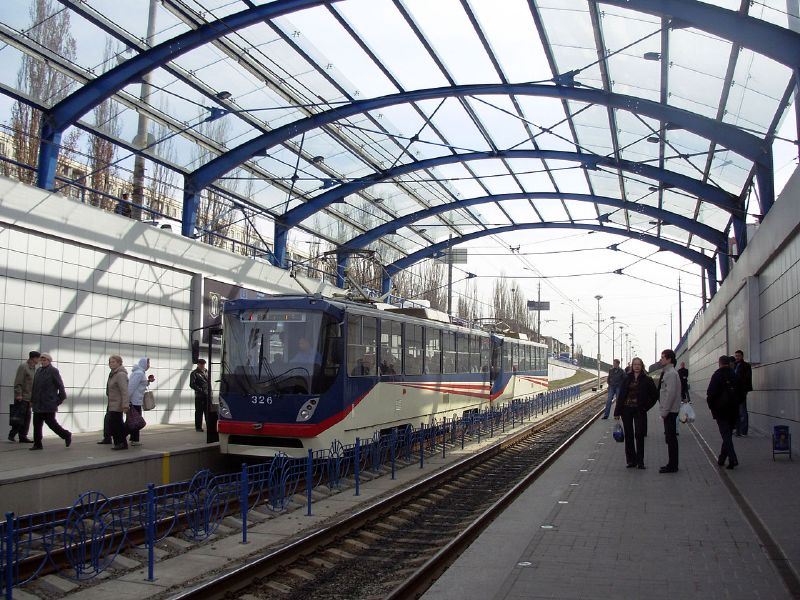

A first fast tram section (in reserved lanes) opened in 1977 going from the railway station (Vokzalna) to the western suburbs (Kiltseva Doroha); it was extended in 2010 with an intermediate southern branch to Mikhailsvska Borschahivska. A second fast tram section opened in 2000 (from Prospekt H. Vatutina to Vulytsia Miloslavskaya); it was taken out of service during 2009-2012 due to upgrades, then it reopend on October 2012 together with its new extension Vulytsia Miloslavskaya-Troeschina.
The current network is articulated in 22 lines.
(last modified February 19, 2017 )
HISTORY| date | section name | line | | | 1891 | horse tram opening | -- | | 1892 | steam tram operation | -- | | 1904 | electrification completed | -- | | 1979 | first fast tram line opening | -- | | 2000 | second fast tram line opening | -- |
(last modified February 19, 2017 )
| TECHNICAL DATA
Single line length (Km)
--
Single line stops
--
Single line avg. distance (km)
--
Total track length (km)
139.9
Total network stops
189
Avg. stop net distance (km)
0.75
Type
steel wheels
Current/Voltage
600 V DC overhead
Guide/gauge
1524 mm gauge rails
Vehicles builder
TATRA,ELECTRON,PESA
Model
T6B5,T3 "Progress",K1,K1M8,T5B64,Twist
Operator
KYJIWPASSTRANS
|
(last modified February 19, 2017 ) |

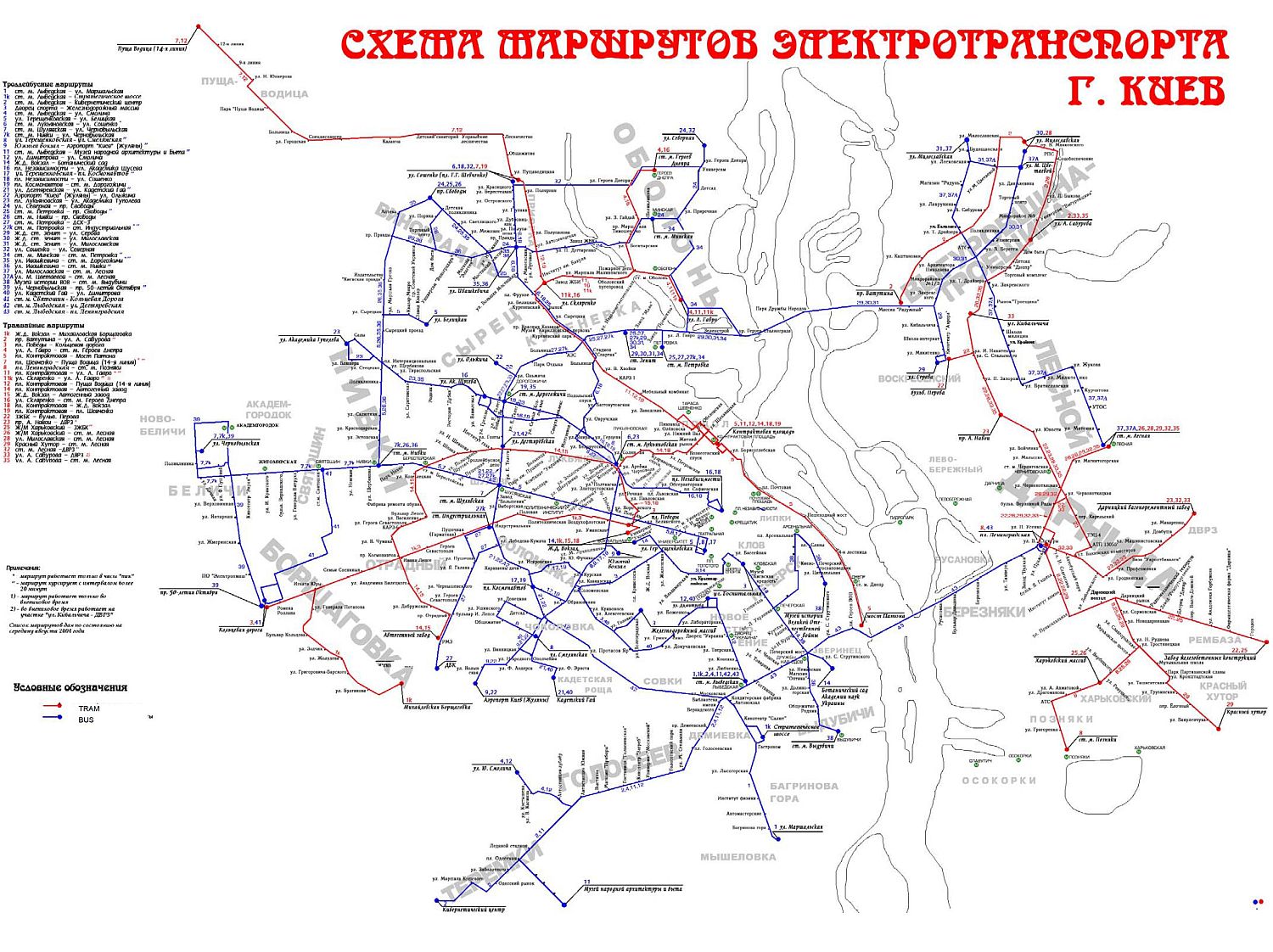

This image is shown smaller (800 x 597 pixels) than its maximum size (1500 x 1122 pixels)
Please click on the map to enlarge it to its maximum size lrt-tram - kiev; By Metrotram.it (Source: base map taken from ukrelectro.h11.ru website)
|
|
