DESCRIPTION
Rouen transit network combines a north-south light metro line (the so-called Rouen Metro, mostly ground level in reserved lanes, with underground sections) to a modern trolleybus service (TEOR).
Rouen metro opened in 1994 (Boulingrin-Georges Braque/Hotel de Ville Sotteville) and it was extended in 1997 (Hotel de Ville Sotteville-Technopole). The metro system is constituded by 2 branches (Saint Sever-Technopole and Georges Braque-Saint Sever) that run separately south of River Seine; at Saint Sever they merge into an unique section up to Boulingrin terminal (north of River Seine). This common section presents a first underground stop south of River Seine (Joffre Mutualitè), then it crosses the river on an existing bridge; it proceedes underground in northern direction before emerging on surface just before Boulingrin terminal. Rouen metro serves some of the main urban polarities: Palais de Justice, Theatre des Arts, Technopole and Gare Rue Verte (railway station).
TEOR trolleybus system opened in 2001; it is articulated in 3 lines (T1, T2, T3) which share a common central section from Mont Riboudet to Saint Hilaire before branching in different directions. TEOR interchanges with the metro system at Boulingrin (T1) and Theatre des Arts (T1, T2, T3).
(last modified February 19, 2017 )
HISTORY
datesection nameline
17-12-1994Boulingrin-Georges Braque/Hotel de Ville Sotteville--
01-09-1997Hotel de Ville Sotteville-Technopole;Palais de Justice stop--
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
--
Single line stops
--
Single line avg. distance (km)
--
Total track length (km)
15.1
Total network stops
31
Avg. stop net distance (km)
0.5
Type
steel wheels
Current/Voltage
750 V DC overhead
Type of guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
ALSTOM
Model
Tramway Français Standard
Operator
TCAR
(last modified February 19, 2017 )

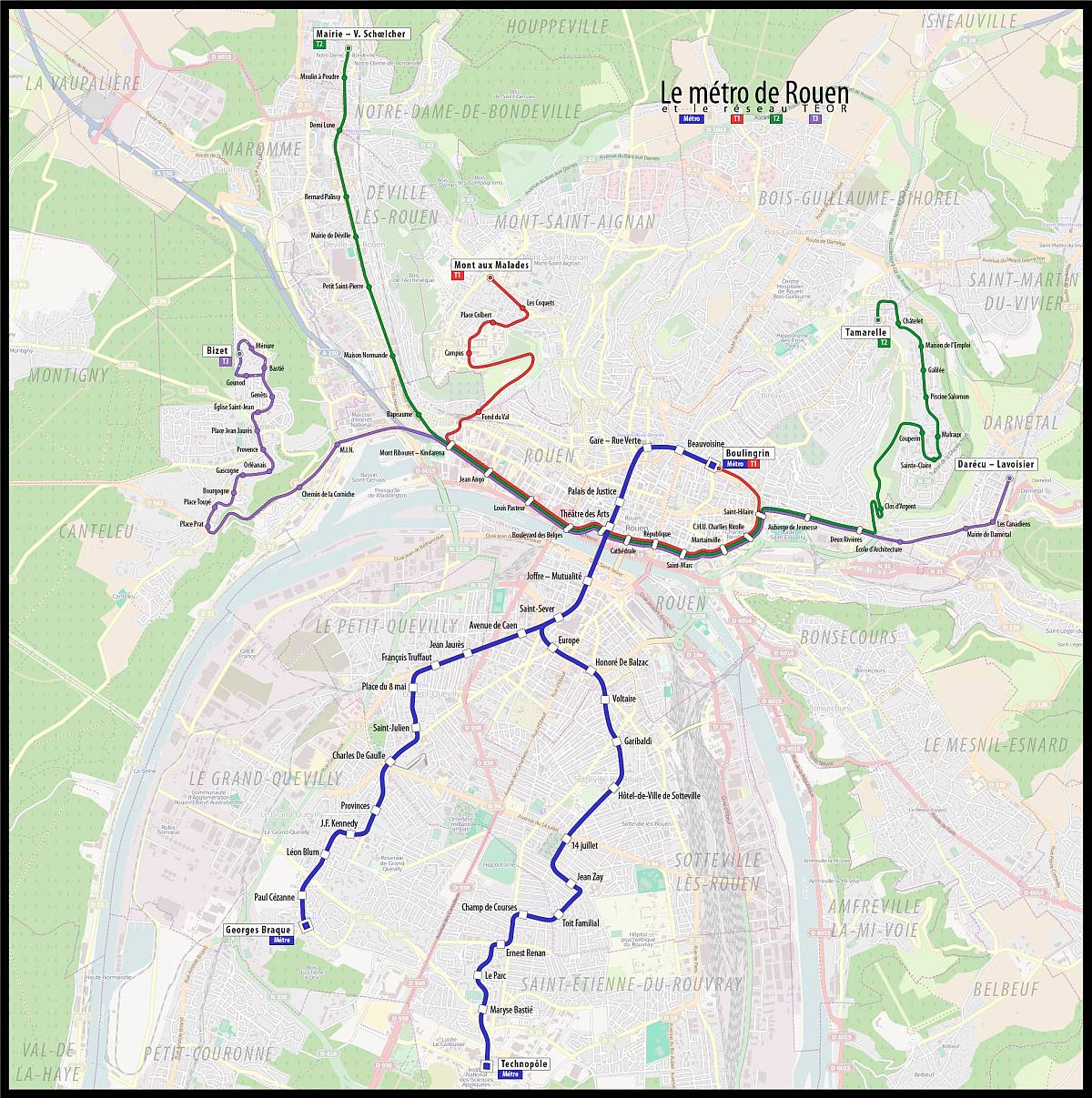

This image is shown smaller (800 x 808 pixels) than its maximum size (1200 x 1207 pixels)
Please click on the map to enlarge it to its maximum size


metro - rouen; By Nuy (Own work) [CC BY 3.0 (http://creativecommons.org/licenses/by/3.0)], via Wikimedia Commons
