DESCRIPTION
The first Bielefeld tram line opened in 1879. In the early years '70s the original tram network was gradually upgraded to premetro/stadtbahn standards, by the construction of tunnel sections (in 1971, 1991, 2000) in the central areas of the town. The current premetro network consists in 4 lines.
(last modified February 19, 2017 )
HISTORY
datesection nameline
1900original street-level tram alignment--
21-09-1971Beckhausstraße underground stop--
28-04-1991Rathaus-Jahnplatz-Nordpark tunnel--
02-04-2000Hauptbahnhof-Rudolf Oetker Halle--
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
--
Single line stops
--
Single line avg. distance (km)
--
Total track length (km)
36.9
Total network stops
62
Avg. stop net distance (km)
0.6
Type
steel wheels
Current/Voltage
750 V DC overhead
Type of guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
DUEWAG/ABB,SIEMENS/ADTRANZ,HEITERBLICK/VOSSLOH KIEPE
Model
M8C,M8D,MB4,GTZ8-B VAMOS
Operator
MOBIEL
(last modified February 19, 2017 )

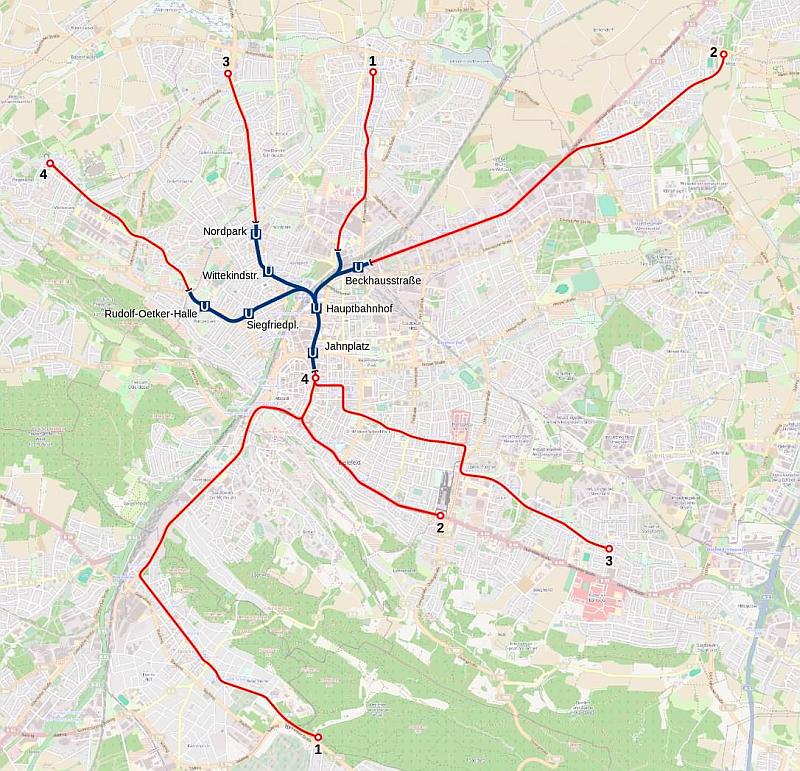

this map is shown here at its maximum resolution (800 x 771)


metro - bielefeld; By Friedrichstrasse [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC BY-SA 3.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons
