DESCRIPTION
Stuttgart tram network opened in 1868 (initial horse tram); this metric gauge network was electrified in 1905. It was continuously operated till December 2007; at that date it was completed the conversion of the tram network into a light metro standard gauge network (a long and complex procedure that has required dual gauge sections where both systems temporally operated on the same tracks).
Stuttgart metro derives from an initial premetro system; the first metro tunnel was built in 1966-1970 (Charlottenplatz - Marienplatz) and subsequently all the other city tunnels were completed (1983). These tunnels were initially used by existing tram lines, which were replaced by light metro trains in 1985 (upgrading the system to a light metro).
Stuttgart metro currently consists in 17 lines (15 regular lines + 2 special lines).
(last modified February 19, 2017 )
HISTORY
datesection nameline
1868original street-level tram alignment--
28-09-1985Vaihingen-Plieningen--
19-04-1986Fellbach-Vaihingen--
12-07-1986Heslach-Berliner Platz-Hauptbahnhof-MUhlhausen--
30-09-1989Hedelfingen-Vogelsang--
03-11-1990Leinfelden-Freiberg--
03-11-1990Vaihingen-Feuerbach Pfostenwäldle--
26-09-1992Feuerbach PfostenwAldle-Giebel--
17-04-1993Killesberg-Degerloch--
17-04-1993Giebel-Gerlingen Siedlung--
24-10-1994Botnang-UntertUrkheim--
01-06-1997Gerlingen Siedlung-Gerlingen--
13-09-1997Schlotterbeckstrasse-Pragsattel-Feuerbach Pfostenwaldle-Giebel--
27-03-1998Schlotterbeckstrasse-Hedelfingen--
23-05-1998Bopser-Ruhbank--
22-05-1999MUhlhausen-Remseck--
11-09-1999Ruhbank-Heumaden--
09-09-2000Heumaden-Nellingen--
22-06-2002Hauptfriedhof-Wilhelmsplatz-Berliner Platz--
14-12-2002Berliner Platz-Holderlinplatz--
16-07-2005Hauptfriedhof-Neugereut--
11-12-2005Freiberg-MOnchfeld--
09-12-2007Zuffenhausen Kelterplatz-Nordbahnhof-Hauptbahnhof-Olgaeck-Geroksruhe-Ruhbank-Heumaden--
08-12-2007original metric tram replacement completed--
12-12-2010Mohringen Freibad-Fasanenhof Schelmenwasen--
12-12-2010Killesberg-Vaihingen--
11-12-2011Hohensteinstrasse-Stammheim--
14-09-2013Lowentor-Hallschlag--
13-05-2016Wallgraben-Durrlewang--
10-12-2017Hallschlag-Wagrainacker--
(last modified June 26, 2018 )
TECHNICAL DATA
Single line length (Km)
--
Single line stops
--
Single line avg. distance (km)
--
Total track length (km)
130
Total network stops
203
Avg. stop net distance (km)
0.65
Type
steel wheels
Current/Voltage
750 V DC overhead
Type of guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
DUEWAG/AEG/SIEMENS/SGP,STADLER
Model
DT8,Tango
Operator
STUTTGARTER STRASSENBAHNEN AG
(last modified June 26, 2018 )

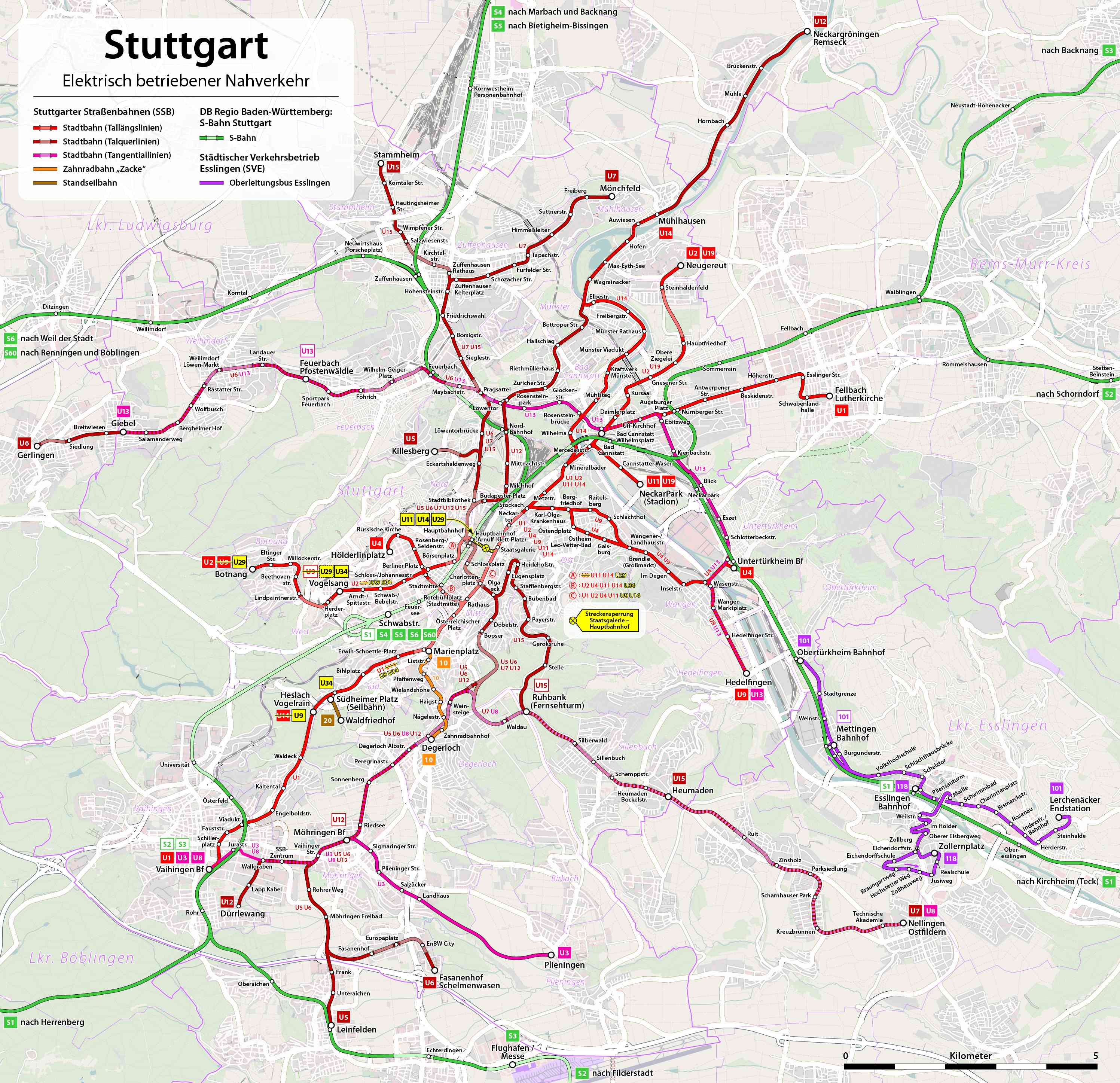

This image is shown smaller (800 x 777 pixels) than its maximum size (2993 x 2894 pixels)
Please click on the map to enlarge it to its maximum size


metro - stuttgart; By Maximilian Dorrbecker (Chumwa) [CC BY-SA 2.0 (https://creativecommons.org/licenses/by-sa/2.0) or ODbL (http://opendatacommons.org/licenses/odbl/1.0/)], from Wikimedia Commons
report an error

search a city

LATEST UPDATES TO THIS SITE
apm19-02-2017
lrt-tram27-06-2018
metro26-06-2018
funicular20-02-2017
news20-02-2017

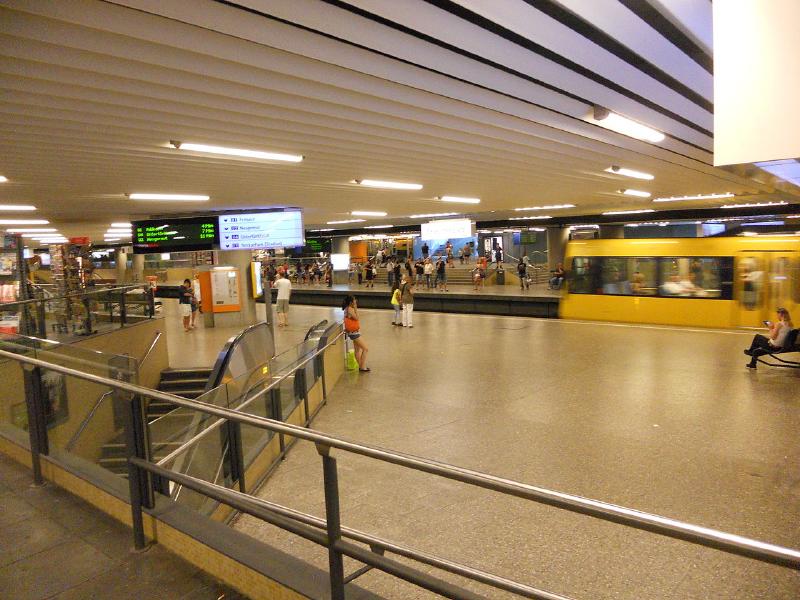

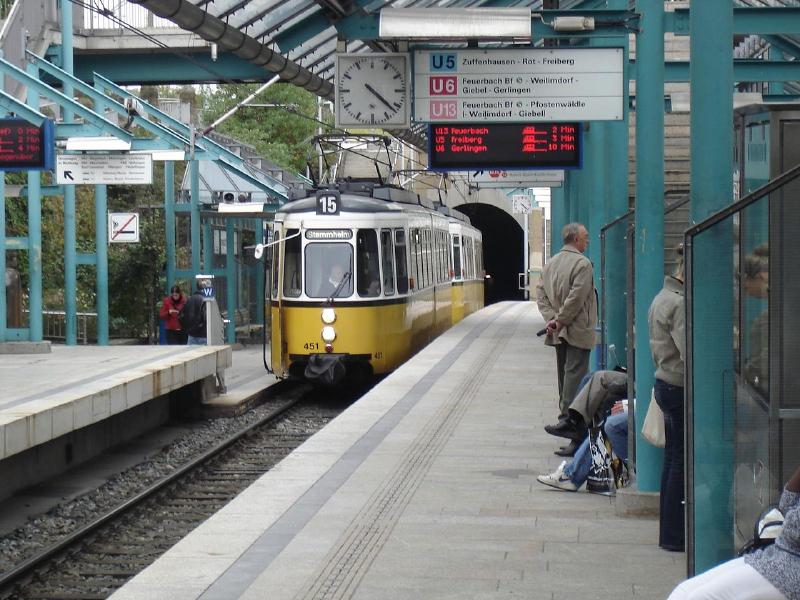

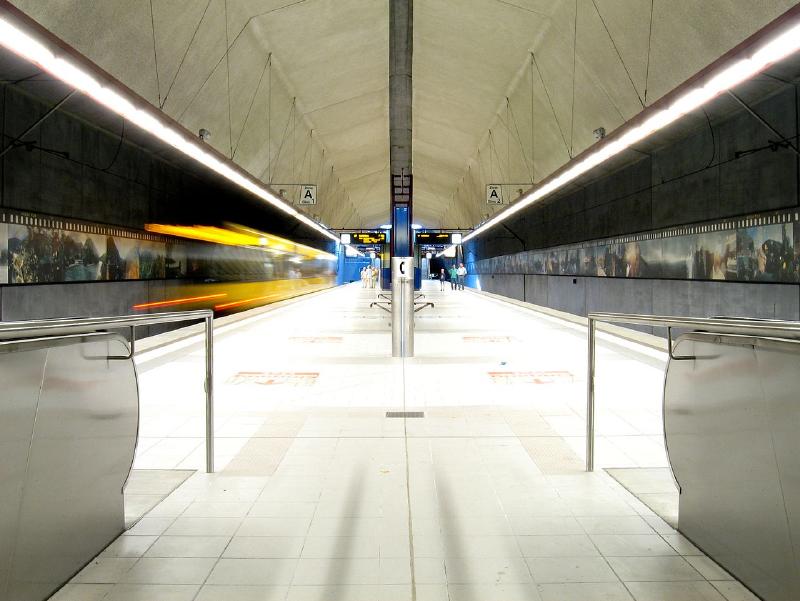

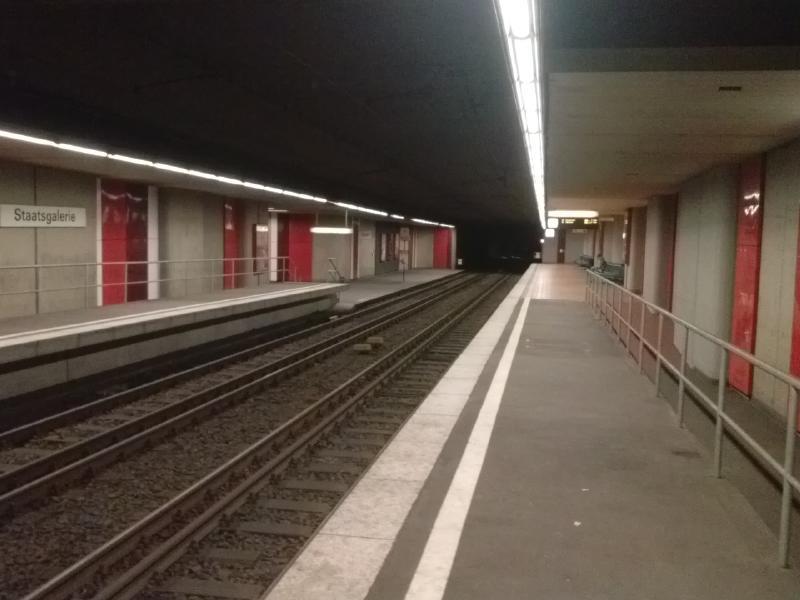

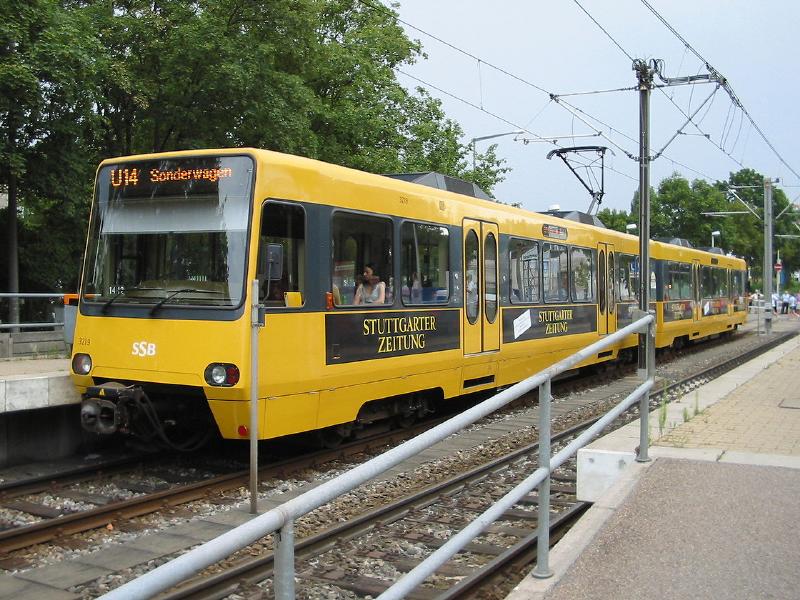

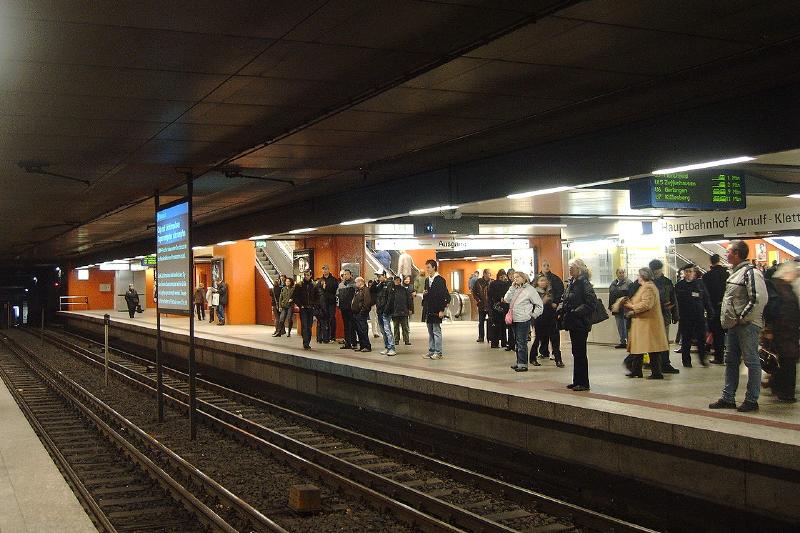

METRO Stuttgart PHOTO
