please, hold the mouse on the logo | Frankfurt [metro]
Country: Germany
Line: tram: Line 11, Line 12, Line 14, Line 15, Line 16, Line 17, Line 18, Line 19, Line 20, Line 21
premetro: Route A: U1, U2, U3, U8; Route B: U4, U5; Route C: U6, U7; Route D: U9 [stadtbahn]
Inhabitants: City 640000, District 1900000
|
DESCRIPTION
The first Frankfurt tram line opened in 1872; electrification took place in 1884. Starting from years '60s, the tram system was completed upgrading part of the network to premetro/Stadtbahn standards (combining ground level and underground sections); the first premetro section opened in 1968 ( Hauptwache-Nordweststadt) followed by many further extensions (in 1974, 1980, 1984, 1986, 1992, 1999, 2001, 2008, 2010). The current network consists in 10 tram lines and 9 premetro lines.
(last modified February 19, 2017 )
HISTORY| date | section name | line | | | 1872 | original street-level tram alignment | -- | | 1894 | beginning of network electrification | -- | | 1968 | Hauptwache-Nordweststadt | premetro | | 1974 | Konstablerwache-Hauptbahnhof tunnel | premetro | | 1980 | Konstablerwache-Seckbacher Landstrasse | premetro | | 1984 | Hauptwache-Sudbahnhof tunnel | premetro | | 1986 | Industriehof/Neue Borse-Zoo tunnel | premetro | | 1992 | Zoo-Enkheim | premetro | | 1999 | Borneplatz-Konstablerwache-Hessendenkmal | -- | | 1999 | Zoo-Ostbahnhof | premetro | | 2001 | Hauptbahnhof-Bockenheimer Warte tunnel | premetro | | 2003 | Varrentrappstrasse-Rebstockbad | -- | | 2008 | Seckbacher Landstrasse-Schafflestrasse | premetro | | 2010 | Niederursel-Riedberg-Kalbach | premetro | | 11-12-2011 | Rohrbachstrasse/Friedberger Landstrasse-Preungesheim/Gravensteiner Platz | -- | | 14-12-2014 | Stresemannallee/Gartenstrasse-Stresemannallee/Morfelder Landstrasse | -- |
(last modified February 19, 2017 )
| TECHNICAL DATA
Single line length (Km)
tram: 63.6
premetro:
U1:12.4
U2:16.7
U3:19.4
U4:11.2
U5:7.8
U6:7.7
U7:11.9
U8:12.3
U9:10.3
Single line stops
tram: 127
premetro:
U1:20
U2:21
U3:28
U4:15
U5:16
U6:14
U7:20
U8:19
U9:12
Single line avg. distance (km)
tram: 0.5
premetro:
U1:0.65
U2:0.85
U3:0.7
U4:0.8
U5:0.5
U6:0.55
U7:0.6
U8:0.7
U9:0.95
Total track length (km)
128.6
Total network stops
213
Avg. stop net distance (km)
0.60
Type
steel wheels
Current/Voltage
600 V DC overhead
Type of guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
tram: DUEWAG/SIEMENS; BOMBARDIER
premetro: DUEWAG
Model
tram: Type R; Type S
premetro: U1-wagen,U2-wagen,U3-wagen,U4-wagen,U5 wagen
Operator
STADTWERKE VERKEHRSGESELLSCHAFT FRANKFURT AM MAIN MBH
NOTE
tram system: 78 km (127 stops)
premetro system: 65 km (86 stops)
|
(last modified February 19, 2017 ) |

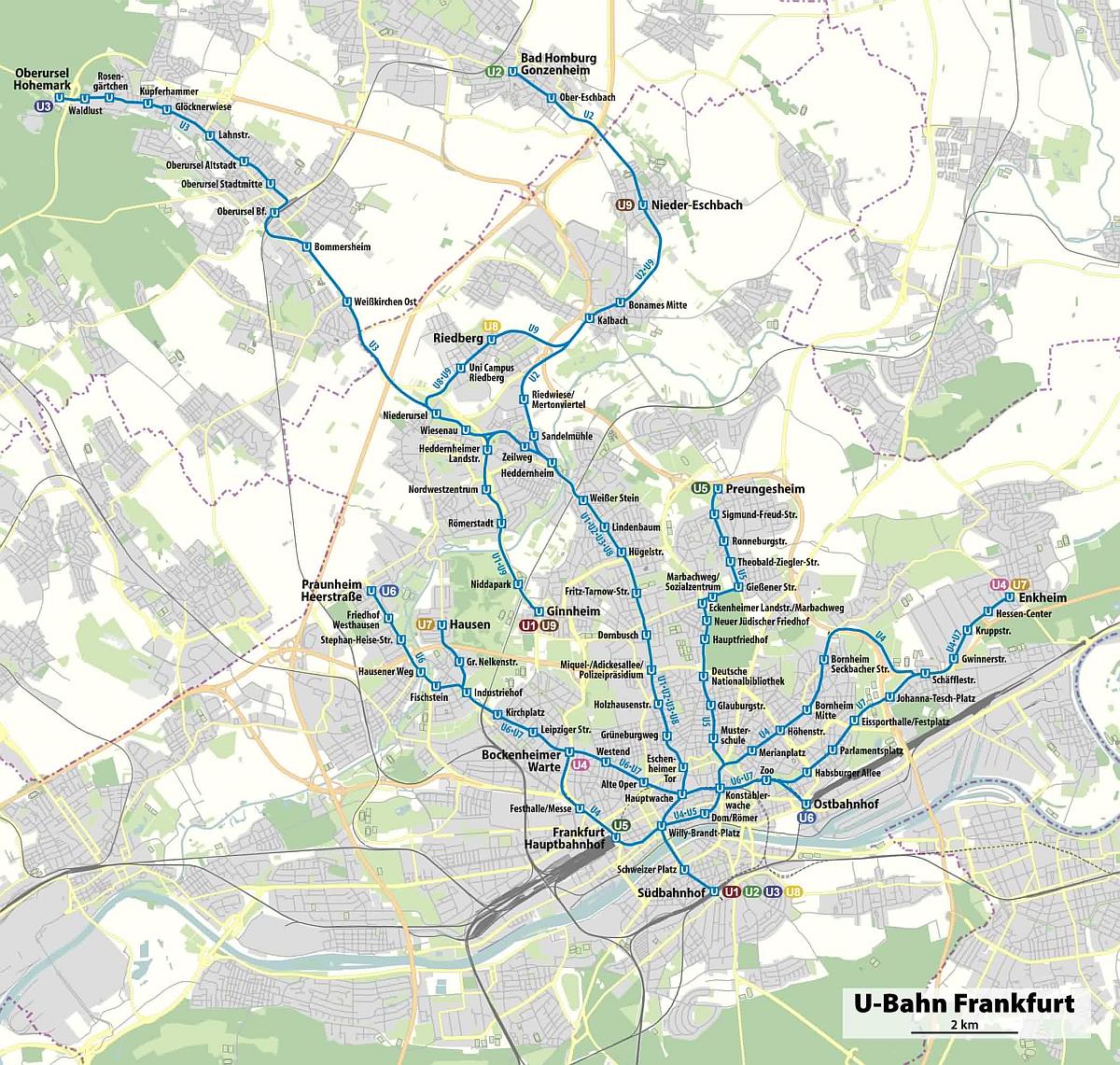

This image is shown smaller (800 x 762 pixels) than its maximum size (1200 x 1141 pixels)
Please click on the map to enlarge it to its maximum size metro - frankfurt; By NordNordWestOpenStreetMap contributors (OpenStreetMapopenstreetmap.org) [CC BY-SA 2.0 (http://creativecommons.org/licenses/by-sa/2.0)], via Wikimedia Commons
|
|
