please, hold the mouse on the logo | Nuremberg [metro] Country: Germany
Line: Metro:U1 DLM:U2, U3
Inhabitants: City 500000, District 3500000
|
DESCRIPTION The construction of Nurnmberg metro took place starting from years '60s.
The first metro line (U1) opened in 1972 (Langwasser Sud-Bauernfeindstrasse) and it was extended in 1974, 1975, 1978, 1980, 1982, 1985 and 1998; it currently runs from Langwasser Sud to Hardhohe along a partly underground track. U1 interchanges with U2 and U3 at Plarrer and Hauptbahnhof.
The second line (U2) opened in 1984 (Plarrer-Schweinau) and it was extended in 1986, 1988, 1990, 1993, 1996 and 1997; U2 is operated as a driverless system (automated metro operations) since 2010. It interchanges with metro line U1 (see above) and it shares part of the track with U3 (Plarrer-Rathenauplatz); furthermore, U2 also interchanges with the ground level railway network (at Nordostbahnhof, Hauptbahnhof, Rothenburger Strasse and Schweinau).
A third line (U3, first section Gustav Adolf Strasse-Maxfeld) opened on 15 June 2008; it was extended in 2011 (Maxfeld-Friedrich Ebert Platz) and 2017 (Friedrich Ebert Platz-Nordwestring). U3 is totally automated (driverless system).
(last modified June 26, 2018 )
HISTORYdate | section name | line | | 01-03-1972 | Langwasser Sud-Bauernfeindstrasse | U1 | 18-06-1974 | Bauernfeindstrasse-Frankenstrasse | U1 | 23-09-1975 | Frankenstrasse-Aufseßplatz | U1 | 28-01-1978 | Aufseßplatz-Weißer Turm | U1 | 20-09-1980 | Weißer Turm-Barenschanze | U1 | 20-03-1982 | Barenschanze-Jakobinenstrasse | U1 | 07-12-1985 | Jakobinenstrasse-Furth Hauptbahnhof | U1 | 05-12-1998 | Furth Hauptbahnhof-Stadthalle | U1 | 28-01-1984 | Plarrer-Schweinau | U2 | 27-09-1986 | Schweinau-Rothenbach | U2 | 24-09-1988 | Plarrer-Hauptbahnhof | U2 | 29-09-1990 | Hauptbahnhof-Rathenauplatz | U2 | 22-05-1993 | Rathenauplatz-Schoppershof | U2 | 27-01-1996 | Schoppershof-Herrnhutte | U2 | 27-11-1999 | Herrnhutte-Flughafen | U2 | 02-01-2010 | beginning of driverless operations | U2 | 14-06-2008 | Gustav Adolf Strasse-Maxfeld | U3 | 11-12-2011 | Maxfeld-Friedrich-Ebert-Platz | U3 | 22-05-2017 | Friedrich Ebert Platz-Nordwestring | U3 |
(last modified June 26, 2018 )
| TECHNICAL DATA Single line length (Km) U1:18.5 U2:13.2 U3:8.1
Single line stops U1:27 U2:16 U3:13
Single line avg. distance (km) U1:0.7 U2:0.9 U3:0.7
Total track length (km) 37.1
Total network stops 48
Avg. stop net distance (km) 0.80
Type steel wheels
Current/Voltage 750 V DC (third rail)
Guide/gauge standard gauge rails (1435 mm)
Vehicles builder U1:-- U2:SIEMENS U3:SIEMENS
Model U1:-- U2:DT1,DT2 U3:DT3
Operator VAG NURNMBERG
(DLM = Driverless Metro) | (last modified June 26, 2018 ) |

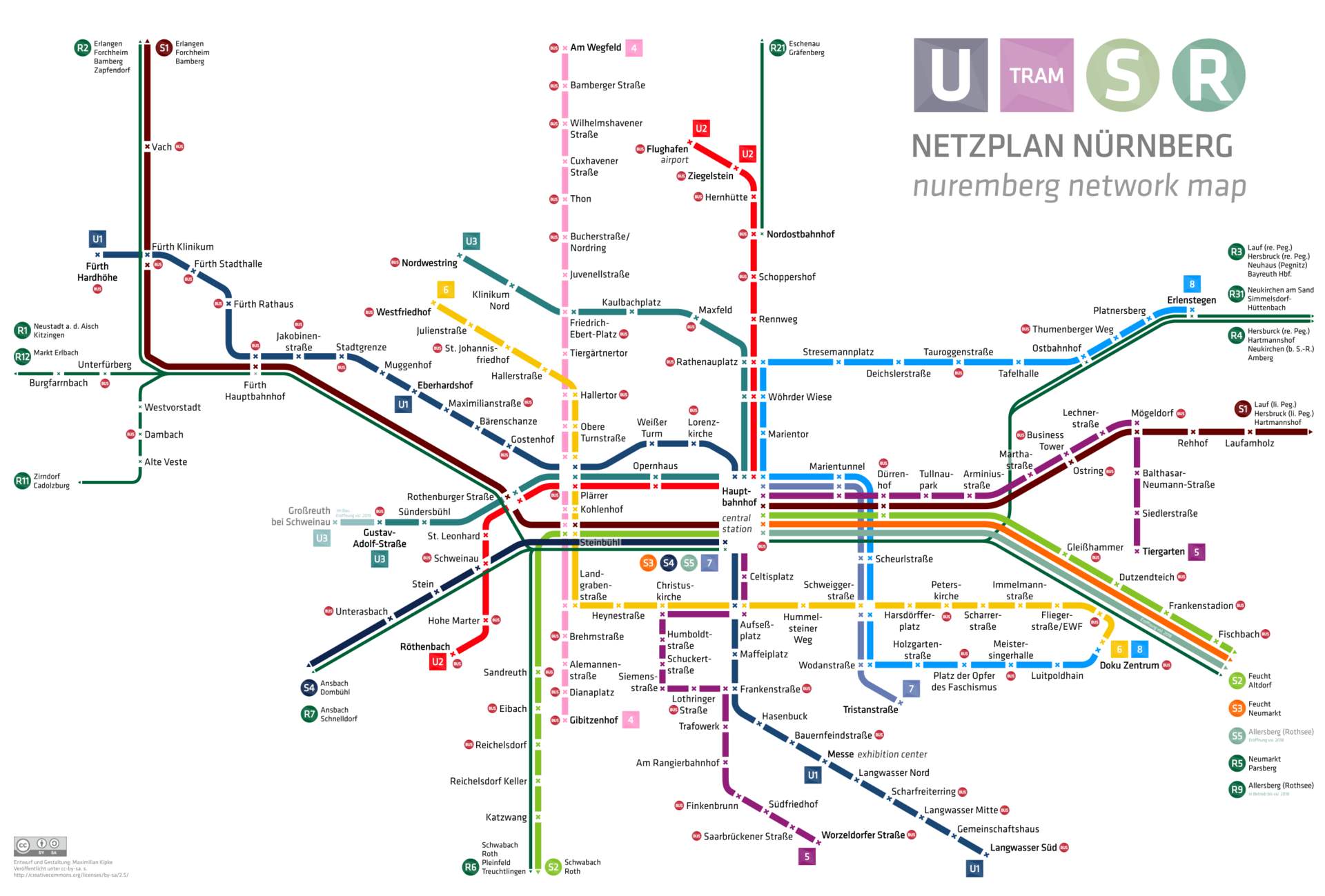

This image is shown smaller (800 x 541 pixels) than its maximum size (1920 x 1299 pixels)
Please click on the map to enlarge it to its maximum size metro - nuremberg; By HerrMay [CC0], from Wikimedia Commons
|
