DESCRIPTION
Plans for Stockholm metro system were eleborated during years '40s; the current metro network consists in 3 lines (Green Line, Red Line, Blue Line).
The first metro line (Green Line/Grona Linjen) opened in 1950 (Slussen-Hokarangen), partly along a former underground railway track; it was extended in 1951-1952, 1954, 1956-1960, 1971 and 1994. Green Line currently runs from Hasselby Strand (west) to Gullmarksplan (east), where it branches in southern direction to Hagsatra, Farsta Strand and Skarpnack. It interchanges with Blue Line (Bla Linjen) at Fridhemsplan, with Red Line (Roda Linjen) and Blue Line at T-Centralen and it shares part of its track with Red Line (T-Centralen-Slussen).
The second metro line (Red Line/Roda Linjen) opened in 1964 (T Centralen-Fruangen;Liljeholmen-Ornsberg) and it was extended in 1965, 1967, 1972-1973, 1975 and 1978. It currently runs from Liljeholmen (where it branches south-west to Norsborg and south to Fruangen) to Ostermalmstorg (where it branches in northern direction to Morby Centrum and Ropsten).
The third line (Blue Line/Bla Linjen) opened in 1975 (T Centralen-Hjulsta via Hallonbergen/Rinkeby) and it was extended in 1977 and 1985 and 1978. It currently runs from Kungstradgarden (east) to Vastra Skogen (where it branches in north-western direction to Hjulsta and Akalla).
(last modified February 19, 2017 )
HISTORY
datesection nameline
01-10-1950Slussen-HokarängenGreen Line
09-09-1951Gullmarsplan-SturebyGreen Line
26-10-1952Hotorget-VallingbyGreen Line
06-04-1954Vallingby definitive stationGreen Line
22-11-1954Stureby-HogdalenGreen Line
01-11-1956Vallingby-Hasselby GardGreen Line
24-11-1957Hotorget-SlussenGreen Line
16-04-1958Skarmarbrink-HammarbyhojdenGreen Line
18-11-1958Hasselby gard-Hasselby strand; Hokarangen-Farsta;Hammarbyhojden-BagarmossenGreen Line
13-11-1959Hogdalen-RagsvedGreen Line
04-11-1960Farsta definitive stationGreen Line
01-12-1960Ragsved-HagsatraGreen Line
29-08-1971Farsta-Farsta StrandGreen Line
15-08-1994Bagarmossen-SkarpnackGreen Line
05-04-1964T Centralen-Fruangen;Liljeholmen-OrnsbergRed Line
16-05-1965Ornsberg-Satra;T Centralen-OstermalmstorgRed Line
01-03-1967Satra-SkarholmenRed Line
02-09-1967Ostermalmstorg-RopstenRed Line
02-12-1967SkArholmen-VarbergRed Line
01-10-1972Varberg-FittjaRed Line
30-09-1973Ostermalmstorg-Tekniska HogskolanRed Line
12-01-1975Tekniska Hogskolan-Universitetet;Fittja-NorsborgRed Line
29-01-1978Universitetet-Morby CentrumRed Line
31-08-1975T Centralen-Hjulsta via Hallonbergen/RinkebyBlue Line
05-01-1977Hallonbergen-AkallaBlue Line
30-10-1977T Centralen-KungstradgardenBlue Line
18-08-1985Vastra Skogen-RinkebyBlue Line
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
Blue Line:25.5
Red Line:41.2
Green Line:41.3
Single line stops
Blue Line:20
Red Line:36
Green Line:49
Single line avg. distance (km)
Blue Line:1.3
Red Line:1.1
Green Line:0.85
Total track length (km)
105.7
Total network stops
100
Avg. stop net distance (km)
1.05
Type
steel wheels
Current/Voltage
Red Line,Green Line:650 V DC by third rail
Blue Line:750 V DC by third rail
Guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
Blue Line,Red Line,Green Line:BOMBARDIER
Model
Length (km)Operator
MTR CORPORATION
(last modified February 19, 2017 )

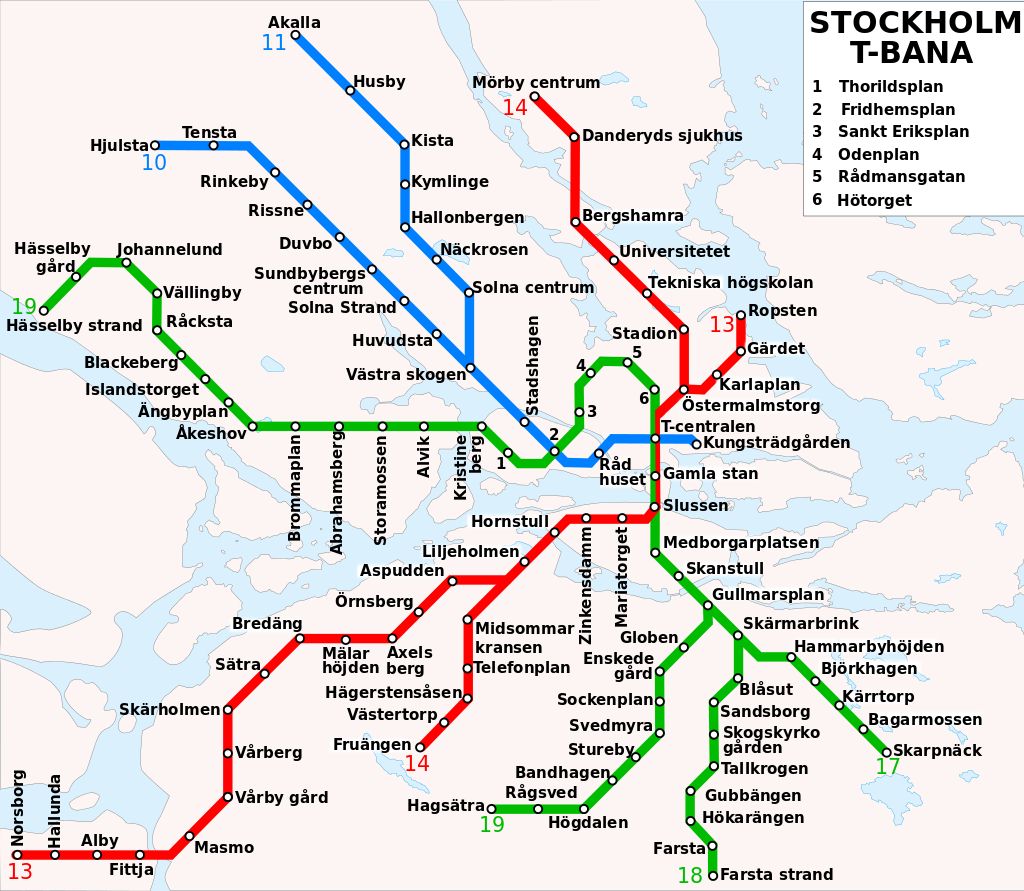

This image is shown smaller (800 x 696 pixels) than its maximum size (1024 x 891 pixels)
Please click on the map to enlarge it to its maximum size


metro - stockholm; By user:xyboi, redraw by Stonyyy (Stockholm_metro_map.png) [CC BY-SA 3.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons
