DESCRIPTION
The first Bonn tram line opened in 1891 (initial horse tram); electrification was completed in 1905. After the second world war many routes were closed, but the system wasn't abandoned and continued to be operated.
Starting fron years '70s, the transit system was completed combining traditional tram lines with premetro/Stadtbahn sections (partly ground level and partly underground). A new tramline (Graurheindorf-Auersberg) entered into operation in 1994. The current LRT/tram network consists in 9 lines: 3 tram lines (Line 61, Line 62, Line 65) and 6 Stadtbahn/premetro lines (Line 16, Line 18, Line 63, Line 66, Line 67, Line 68).
(last modified February 19, 2017 )
HISTORY
datesection nameline
1891initial horse tram opening--
1892steam tram introduction--
1905electrification completed--
1949routes closure--
1953routes closure--
1955routes closure--
1975Bonn Hauptbahnhof-Heussallee tunnelpremetro
1979Bonn Hauptbahnhof-Stadthaus tunnel;Deutsche Telekom-Rheinaue tunnelpremetro
1981Rheinaue-Ramersdorfpremetro
1994Hochkreuz-Bad Godesberg Stadthalle tunnelpremetro
19-08-1994Graurheindorf-Auersberg--
2000Siegburg underground stoppremetro
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
tram:14.5
premetro:47.5
Single line stops
tram:36
premetro:36
Single line avg. distance (km)
tram:0.5
premetro:1.3
Total track length (km)
62
Total network stops
64
Avg. stop net distance (km)
1.0
Type
steel wheels
Current/Voltage
750 V DC overhead
Type of guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
tram:DUEWAG/SIEMENS
premetro:DUEWAG/SIEMENS/KIEPE/WAGGON UNION
Model
tram:NGT6
premetro:Stadtbahnwagen Type B
Operator
tram:STADTWERKE BONN (SWB)
premetro:SWB,SSB
(last modified February 19, 2017 )

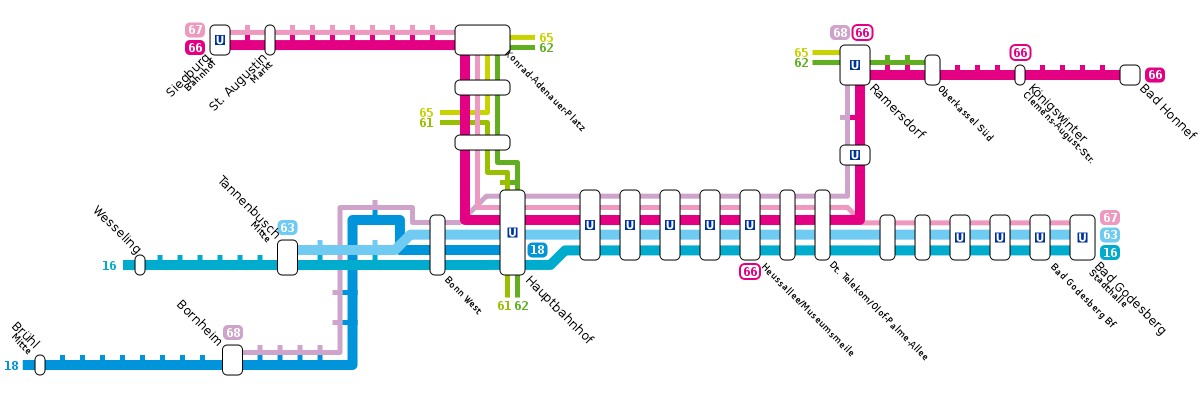

This image is shown smaller (800 x 267 pixels) than its maximum size (1200 x 400 pixels)
Please click on the map to enlarge it to its maximum size


metro - bonn; By Saethwr (Own work using OpenStreetMap data.) [CC BY-SA 3.0 (http://creativecommons.org/licenses/by-sa/3.0)], via Wikimedia Commons
report an error

search a city

LATEST UPDATES TO THIS SITE
apm19-02-2017
lrt-tram02-03-2017
metro19-02-2017
funicular20-02-2017
news20-02-2017

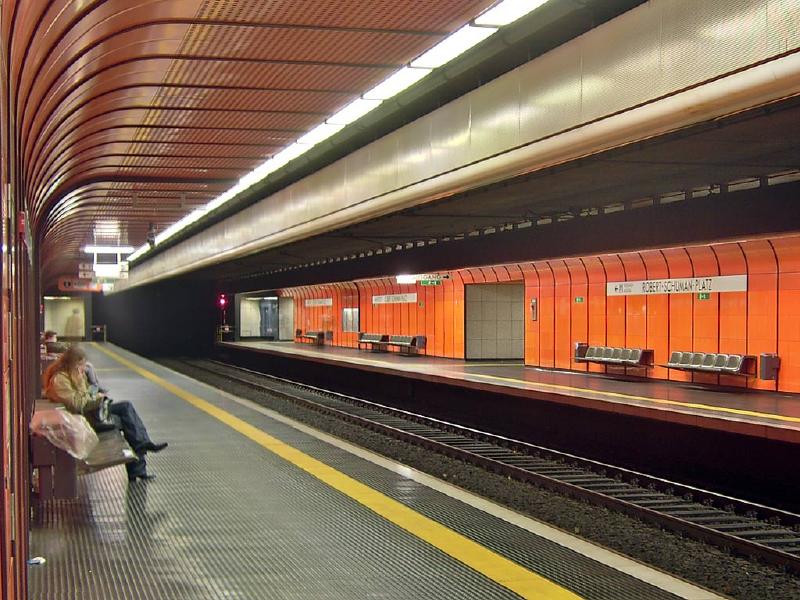

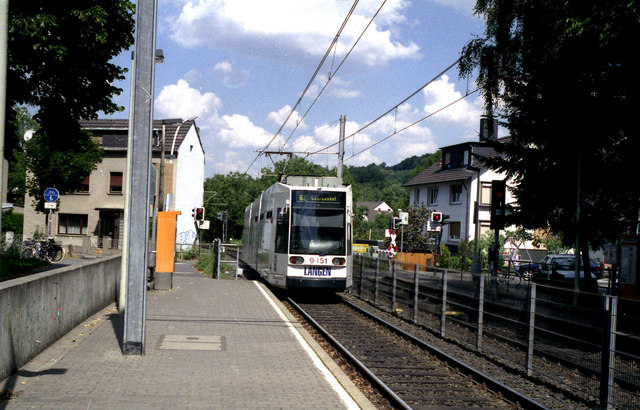

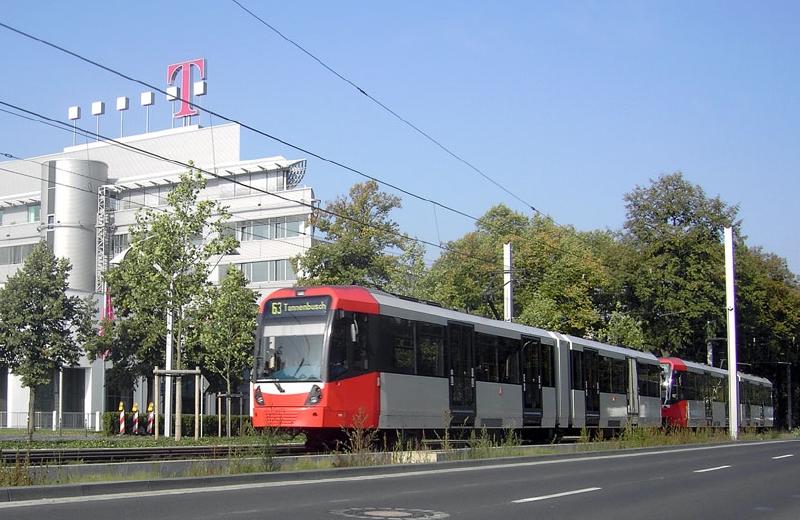

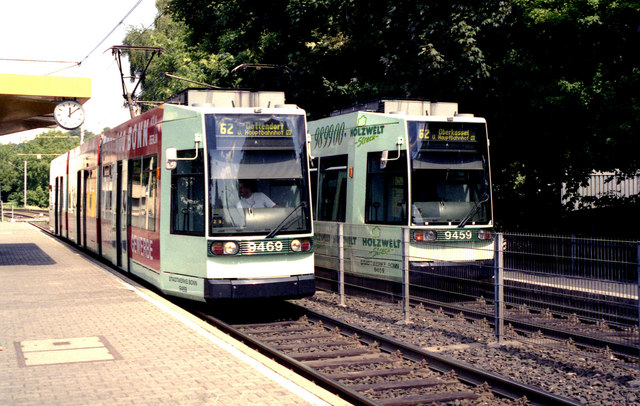

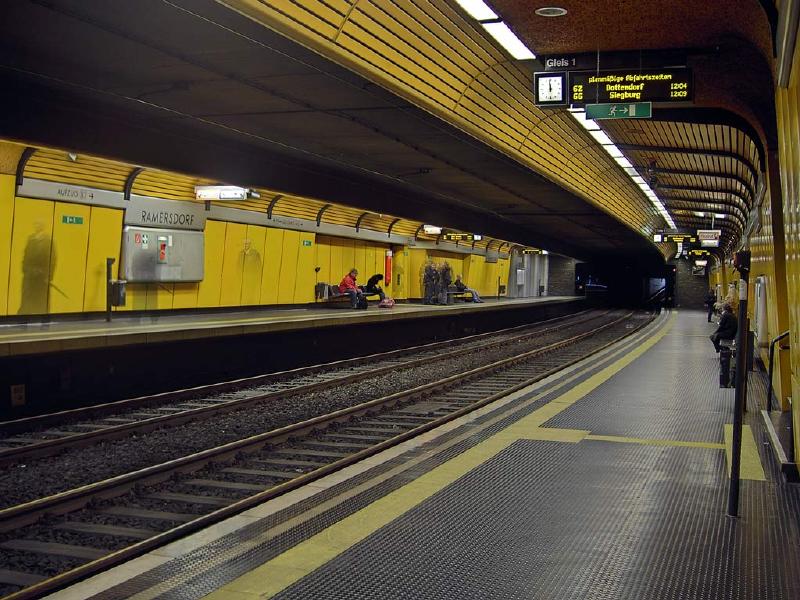

METRO Bonn PHOTO
