please, hold the mouse on the logo | Amsterdam [metro] Country: Netherlands
Line: Line 50 (Ringlijn), Line 51 (Amstelveenlijn), Line 53 (Oostlijn Gaasperplas Branch), Line 54 (Oostlijn Gein Branch)
Inhabitants: City 830000, District 1600000
|
DESCRIPTION Amsterdam transit system combines full metro, light metro and conventional tram/LRT lines.
Two of the properly said metro lines (L53 or Oostlijn Gaasperplas Branch, L54 or Oostlijn Gein Branch) opened in 1977, running on segregated tracks from the railway station to Amsterdam south-eastern areas (Gaasperplas, Gein), with a common underground section between Central Station and Amstel.
Light metro L51 (Amstelveenlijn) opened on December 1990; it shares track with L53 and L54 from Centraal Station to Spaklerweg and with Line 50 from Overamstel to Station Zuid; at Zuid it runs south to Amstelveen on a separate right-of-way (with level crossings).
The full metro Line 50 (Ringlijn) started its service in 1997, running from from Isolatorweg (north) to Gein (south-east); it runs totally ground level, sharing part of its track with L51 (from Station Zuid to Overamstel), L53 and L54 (from east of Overamstel to Duivendrecht) and L54 (from Duivendrecht to Gein).
(last modified February 19, 2017 )
HISTORYdate | section name | line | | 01-06-1997 | Isolatorweg-Gein | Line 50 | 02-12-1990 | Central Station-Poorwachter | Line 51 | 13-09-2004 | Poorwachter-Westwijk | Line 51 | 16-10-1977 | Weesperplein-Gaasperplas | Line 53 | 11-10-1980 | Weesperplein-Centraal Station | Line 53 | 16-10-1977 | Weesperplein-Holendrecht | Line 54 | 11-10-1980 | Weesperplein-Centraal Station | Line 54 | 04-06-1982 | Spaklerweg stop | Line 54 | 27-08-1982 | Holendrecht-Gein | Line 54 |
(last modified February 19, 2017 )
| TECHNICAL DATA Single line length (Km) Line 50:20.1 Line 51:19.5 Line 53:11.3 Line 54:12.1
Single line stops Line 50:20 Line 51:29 Line 53:14 Line 54:15
Single line avg. distance (km) Line 50:1.1 Line 51:0.7 Line 53:0.85 Line 54:0.85
Total track length (km) 41
Total network stops 52
Avg. stop net distance (km) 0.80
Type steel wheels
Current/Voltage Line 51,Line 53,Line 54:750 V DC by third rail Line 54:15Line 51:600/750 V DC overhead
Type of guide/gauge standard gauge rails (1435 mm)
Vehicles builder Line 50,Line 53:LHB,CAF,ALSTOM Line 51:BN,CAF Line 54:LHB,CAF,ALSTOM
Model Line 50,Line 53:serie M1,serie M2,serie M3,serie M4,serie M5,serie S3 Line 51:serie S1,serie S2,serie S3,serie M4 Line 54:serie M1,serie M2,serie M3,serie M5
Operator GVB
| (last modified February 19, 2017 ) |

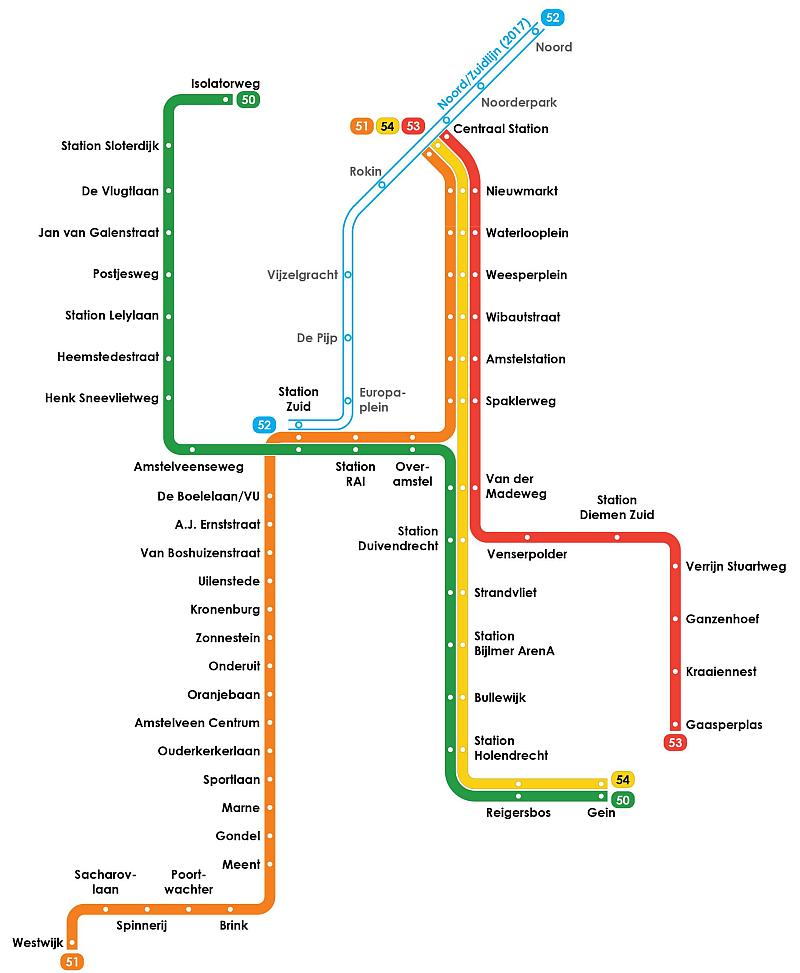

this map is shown here at its maximum resolution (800 x 973)
metro - amsterdam; By Alargule (Own work) [GFDL (http://www.gnu.org/copyleft/fdl.html) or CC BY-SA 4.0-3.0-2.5-2.0-1.0 (http://creativecommons.org/licenses/by-sa/4.0-3.0-2.5-2.0-1.0)], via Wikimedia Commons
|
|
