DESCRIPTION
Rennes driverless metro line (Line A) opened on March 2002 along a radial north/weststern-south/eastern route from J.F. Kennedy to La Poterie. Its track is mostly underground, except for two short viaduct sections approaching La Poterie eastern terminal and Pontchaillou intermediate stop.
Line A runs underground (superficial gallery) from J.F.Kennedy (north-western terminal) to Villejean, then it procedes on viaduct up to Pontchaillou, where it starts a deep tunnel below the historical city centre. The deep tunnel continues up to Clemenceau (underpassing some typical wooden old buildings), where it begins a superficial gallery up to Le Blosne; then, it finally reaches (on viaduct) La Poterie south-eastern terminal.
Line A serves the railway station (Gares); it also interchanges with many parking areas (at La Poterie - proximus to a motorway link road -, J.F. Kennedy, Triangle, Freville and Villejean-University).
(last modified February 19, 2017 )
HISTORY
datesection nameline
15-03-2002J.F. Kennedy-La PoiterieLine A
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
--
Single line stops
--
Single line avg. distance (km)
--
Total track length (km)
9.4
Total network stops
13
Avg. stop net distance (km)
0.6
Type
rubber tyres
Current/Voltage
750 V DC from third rail
Type of guide/gauge
standard gauge (1435 mm) steel tracks with lateral guide bars
Vehicles builder
SIEMENS
Model
VAL 208
Operator
STAR
(last modified February 19, 2017 )

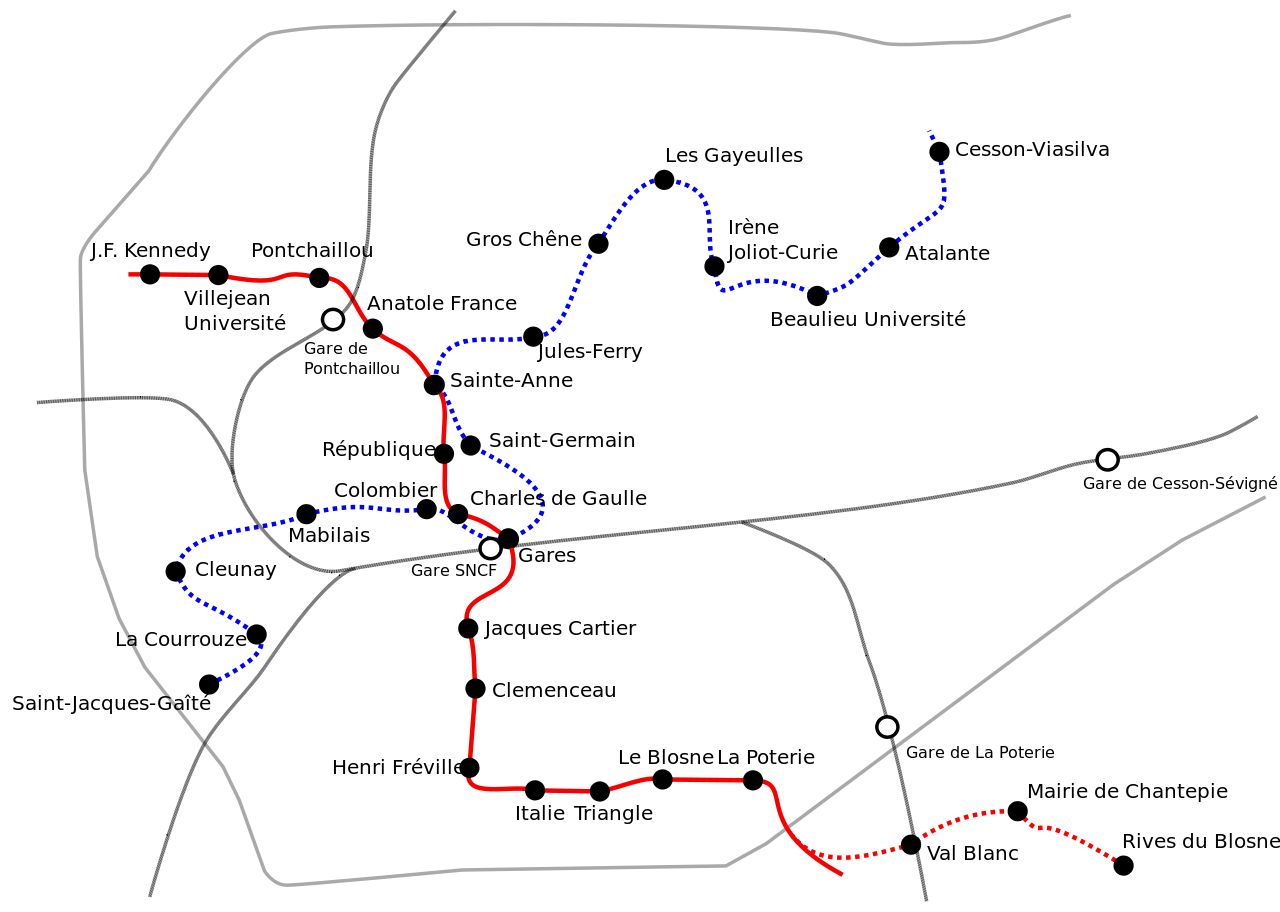

This image is shown smaller (800 x 571 pixels) than its maximum size (1280 x 912 pixels)
Please click on the map to enlarge it to its maximum size


metro - rennes; By Olivier92 (Own work) [CC BY 3.0 (http://creativecommons.org/licenses/by/3.0)], via Wikimedia Commons
report an error

search a city

LATEST UPDATES TO THIS SITE
apm19-02-2017
lrt-tram02-03-2017
metro19-02-2017
funicular20-02-2017
news20-02-2017

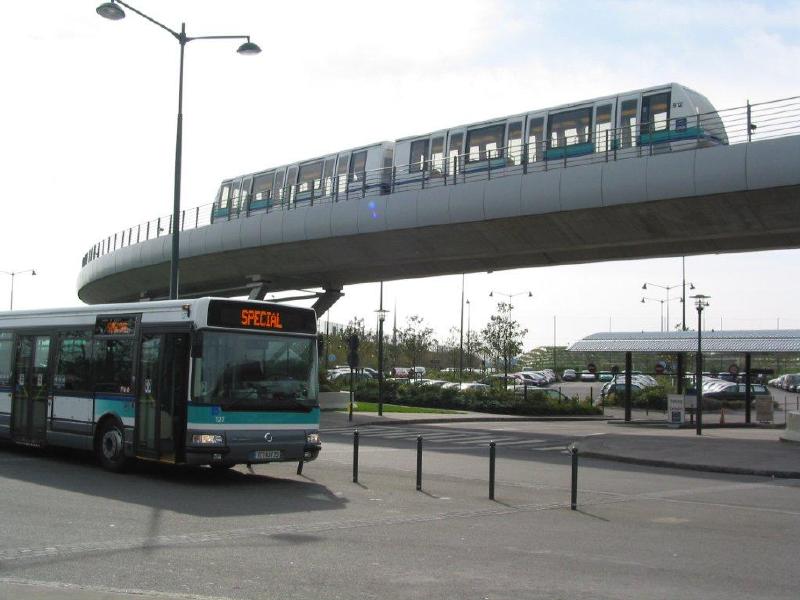

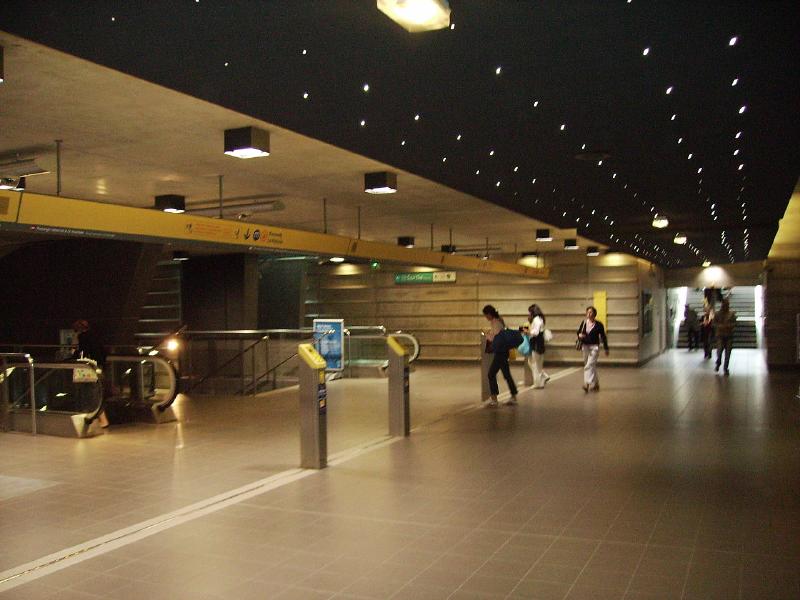

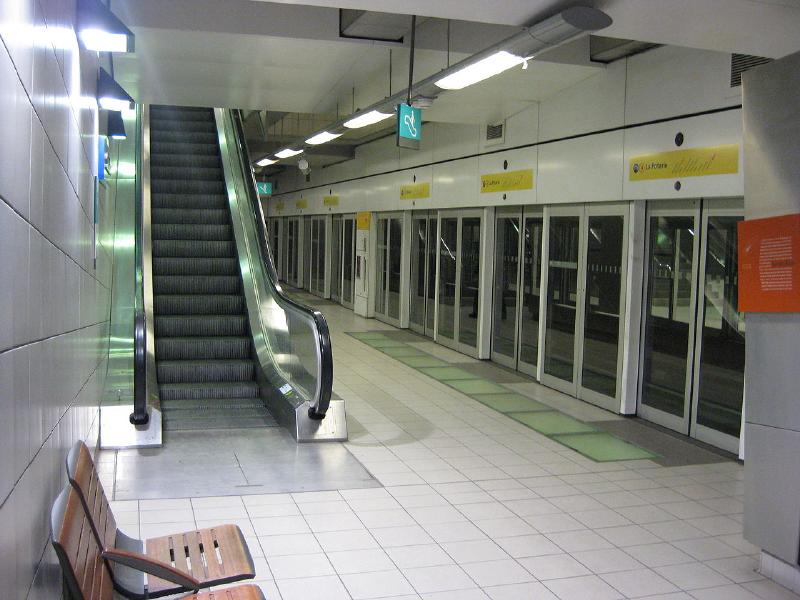

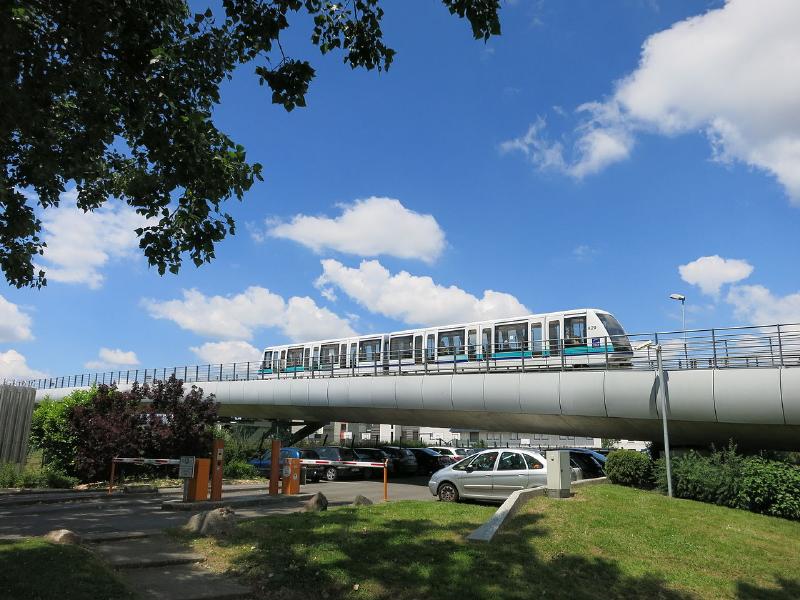

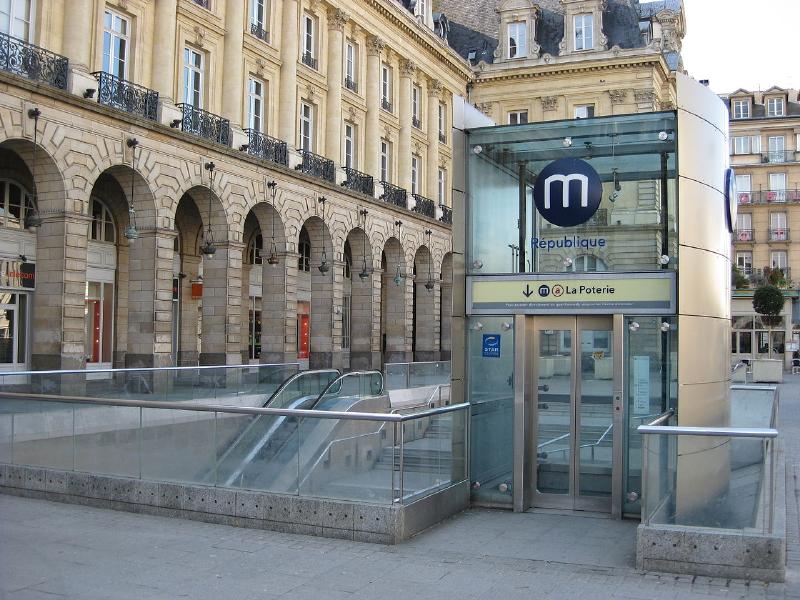

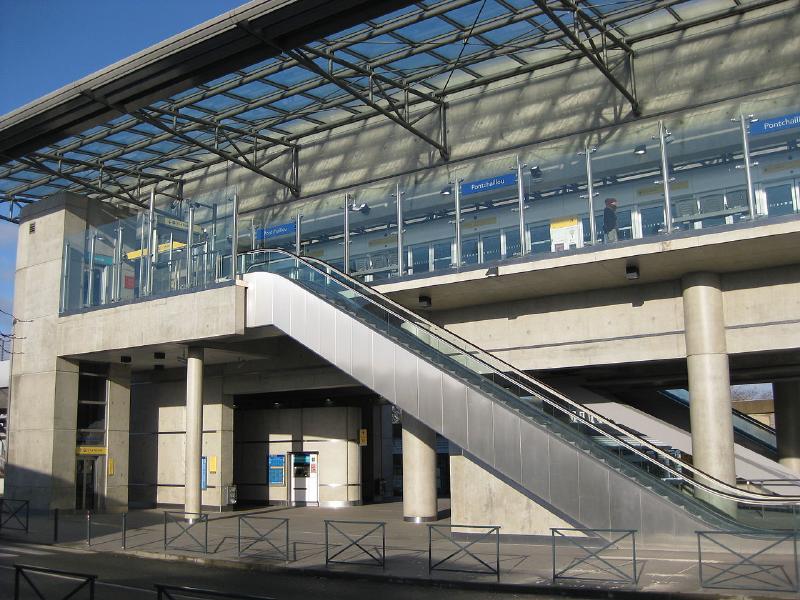

METRO Rennes PHOTO
