Porto [metro]
Country: Portugal
Line: Line A, Line B, Line C, Line D, Line E, Line F
Inhabitants: City 240000, District 1760000

DESCRIPTION
In the years '90s Porto municipality decided to reduce the heavy congestion of road traffic introducing a new transit network (Metro do Porto, light metro system). Metro do Porto is similar to premetro/stadtbahn systems, combining underground sections through the city centre and ground level segments obtained by the conversion to metro opetration of some elder metric gauge local railways.
Metro do Porto first line (Line A) opened in 2002 (Senhor de Matosinhos-Trindade) and it was extended in 2004 (Trindade-Estadio do Dragao).
The second metro line (Line B) opened in 2005 (Senhora da Hora-Pedras Rubras) and it was extended in 2006 (Pedras Rubras-Povoa de Varzim).
Line C opened in 2005 (Fonte do Cuco-Forum Maia) and was extended in 2006 (Forum Maia-ISMAI).
Line D opened in 2005 (Polo Universitario-Camara de Gaia, Camara de Gaia-Joao de Deus) and it was extended in 2006 (Polo Universitario-Hospital Sao Joao), 2008 (Joao de Deus-D. Joao II) and 2011 (D. Joao II-Santo Ov�dio).
Line E opened in 2006 (Verdes-Aeroporto); Line F opened in 2011 (Estadio do Dragao-Fanzeres).
Lines A, B, E and F share part of their tracks (Senhora de Hora-Estadio do Dragao); relevant network interchange points are located af Trinidade stop (served by Lines A, B, D, E, F) and Sao Bento stop (railway station, served by Line B).

(last modified February 19, 2017 )

HISTORY

date	section name	line

07-12-2002	Senhor de Matosinhos-Trindade	Line A
06-06-2004	Trindade-Estadio do Dragao	Line A
13-03-2005	Senhora da Hora-Pedras Rubras	Line B
18-03-2006	Pedras Rubras-Povoa de Varzim	Line B
30-07-2005	Fonte do Cuco-Forum Maia	Line C
31-03-2006	Forum Maia-ISMAI	Line C
17-09-2005	Polo Universitario-Camara de Gaia	Line D
10-12-2005	Camara de Gaia-Joao de Deus	Line D
31-03-2006	Polo Universitario-Hospital Sao Joao	Line D
27-05-2008	Joao de Deus-D. Joao II	Line D
15-10-2011	D. Joao II-Santo Ovídio	Line D
27-05-2006	Verdes-Aeroporto	Line E
02-01-2011	Estadio do Dragao-Fanzeres	Line F

(last modified February 19, 2017 )

TECHNICAL DATA
Single line length (Km)
Line A:15.6
Line B:33.6
Line C:19.6
Line D:9.2
Line E:16.7
Line F:17.4
Single line stops
Line A:23
Line B:35
Line C:24
Line D:16
Line E:21
Line F:24
Single line avg. distance (km)
Line A:0.7
Line B:1.0
Line C:0.85
Line D:0.6
Line E:0.85
Line F:0.75
Total track length (km)
68
Total network stops
81
Avg. stop net distance (km)
0.85
Type
steel wheels
Current/Voltage
750 V DC overhead
Type of guide/gauge
standard gauge rails (1435 mm)

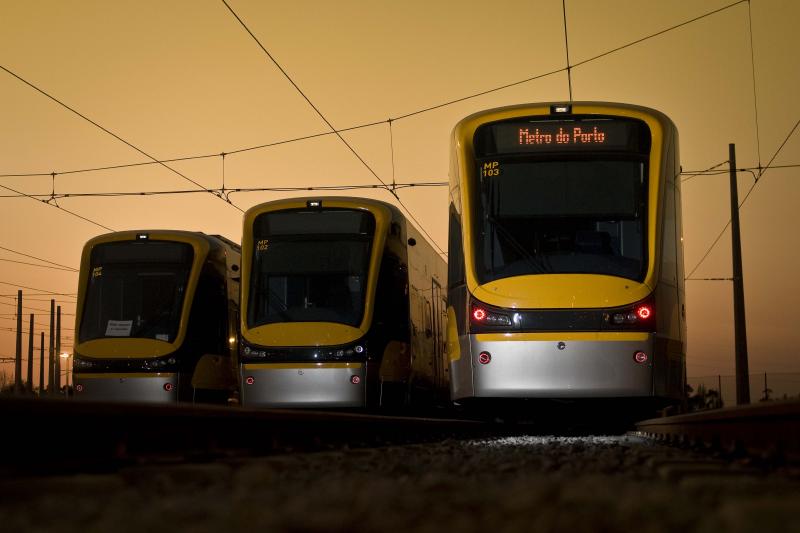

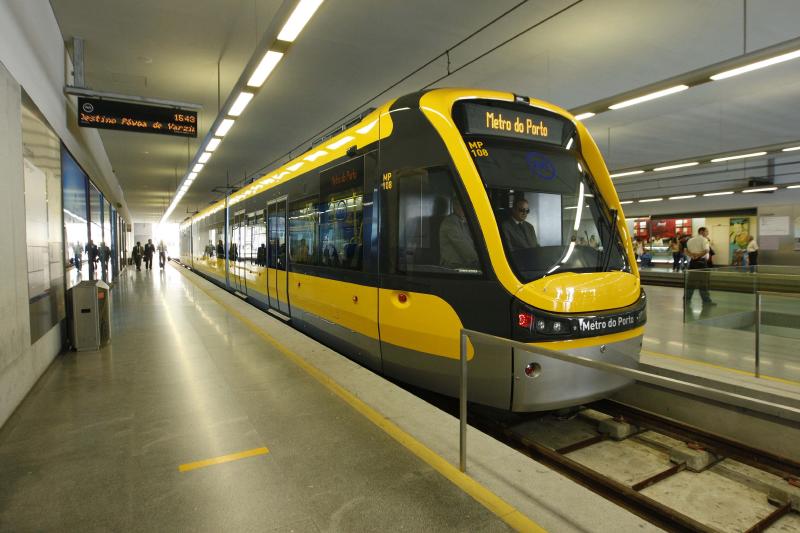

Vehicles builder
BOMBARDIER

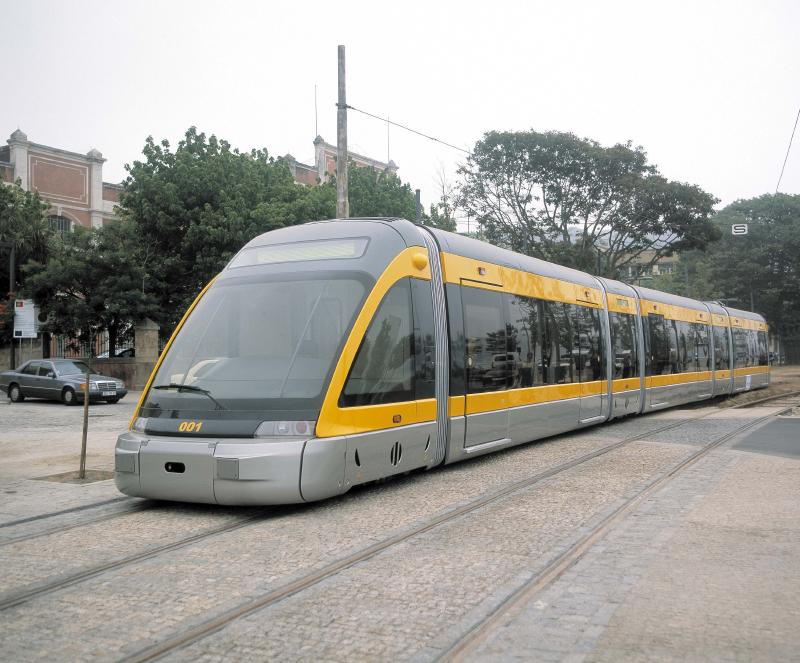

Model
Eurotram,Flexity Swift
Operator
VIAPORTO

(last modified February 19, 2017 )

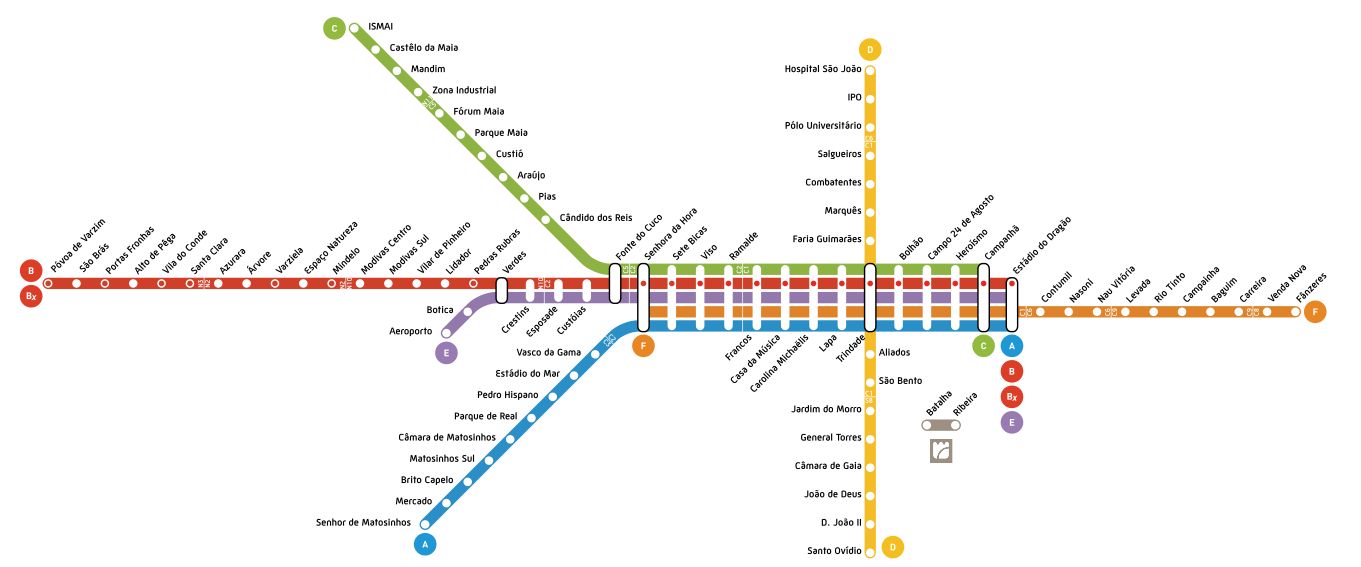

This image is shown smaller (800 x 333 pixels) than its maximum size (1361 x 567 pixels)
Please click on the map to enlarge it to its maximum size
