please, hold the mouse on the logo | Volgograd [metro] Country: Russian Federation
Line: tram: fast tram: Skorostnoy Tramvaj
Inhabitants: City 1010000, District --
|

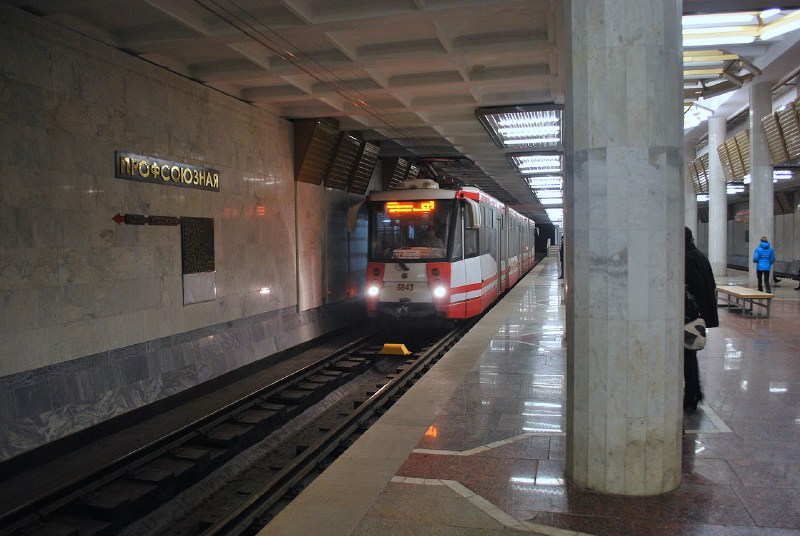

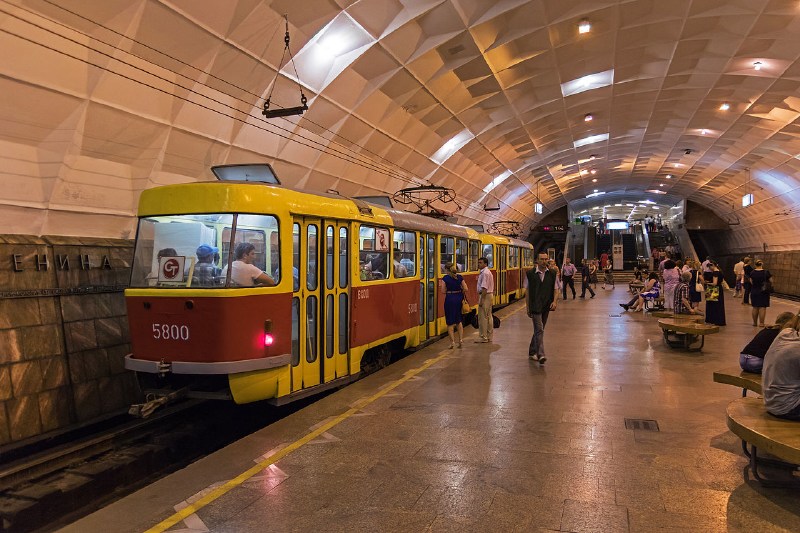

DESCRIPTION Volgograd (the former Stalingrad) manteins its original tram network (opened in 1913 and artculated in 3 sub-networks: northern, central, southern), which has been integrated by the so-called Skorostnoy Tramvaj, a LRT line with a relevant underground section (from north of Ploshad Lenina stop to Yelshanka southern terminal); the northern part of its track (from Traktorozavod to Stadion Monolit) is shared with some of the standard tram routes (similarly to a premetro system).
Volgograd Skorostnoy Tramvaj was planned in USSR (as well as Kryvyi Rih Metrotram, in Ukraine) during years '70s with the aim to develope an efficient rapid urban mass transport system to be applied in other middle-rank urban agglomerations (less than 1 million of inhabitants) responding better than traditional trams to the needs of rapid desplacements.
Skorostnoy Tramvaj connects the northern and the central tram sub-networks. The first section of Skorostnoy Tramvaj opened in 1984 (Traktorniy Zavod-Pionerskaya) and it was extended in 2011 (Pionerskaya-Yelshanka).
(last modified February 19, 2017 )
HISTORYdate | section name | line | | 1913 | electric tram opening | -- | 05-11-1984 | VGTZ-Pl. Chekistov | Skorostnoy Tramvaj | 29-12-2008 | TRK Europa City Mall stop | Skorostnoy Tramvaj | 01-12-2011 | Pionerskaya - Yelshanka | Skorostnoy Tramvaj |
(last modified February 19, 2017 )
| TECHNICAL DATA Single line length (Km) tram:27.5 fast tram:17.3
Single line stops tram:64 fast tram:22
Single line avg. distance (km) tram:0.45 fast tram:0.75
Total track length (km) 44.8
Total network stops 86
Avg. stop net distance (km) 0.50
Type steel wheels
Current/Voltage 600 V DC overhead
Type of guide/gauge 1524 mm gauge rails
Vehicles builder TATRA,UVKZ,PTMF
Model T3SU,KT8D5,T6B5SU,T3R.PV,71-409-01,LWS-2009
Operator METROELEKTROTRANS
| (last modified February 19, 2017 ) |
This image is shown smaller (800 x 1.127 pixels) than its maximum size (1000 x 1414 pixels)
Please click on the map to enlarge it to its maximum size metro - volgograd; Source: skyscrapercity.com website
|
