Official Logo | Charleroi [metro] Country: Belgium
Line: M1, M2, M3, M4 [premetro/stadtbahn]
Inhabitants: City 200000, District --
|
DESCRIPTION Charleroi light metro network (MLC, Metro Leger Charleroi) is a typical premetro system (trams on reserved lanes, with underground sections in the central areas).
The initial ambitious plan (52 km long premetro network) was elaborated in the years '70s; it was based on a central ring (partially underground) surrounding the city centre, which had been the focus of 8 radial branches towards the main urban axis. Because of technical and economical difficulties (among them, the decline of the carboniferous industry), just a part of the central ring and only 2 radial branches have been initially completed (1983-1992); other infrastructures (some segments of the track and some stops) have been realized (partly or completely) without being operated.
In February 2012 the central ring was completed (Parc-Sud section, ground level and viaduct), while 3 new stops along Gilly branch (2 yet partially built: Marabout, Sart Culpart; 1 totally new: Soleimont) were activated. The opening of the Gosselies branch to the passengers traffic took place on June 2013 (it was before utilized as technical connection with the depot).
(last modified February 19, 2017 )
HISTORYdate | section name | line | | 24-05-1983 | Sud-Beaux Arts-Dampremy;Morgnies-Paradis | -- | 28-08-1992 | Beaux Arts-Gilly;Providence-Moulin;Paradis-Fontaine | -- | 30-08-1996 | Waterloo-Parc | -- | 27-02-2012 | Parc-Sud; Gilly-Soleilmont | -- | 22-06-2013 | Piges-Gosselies | -- |
(last modified February 19, 2017 )
| TECHNICAL DATA Single line length (Km) M1:17.3 M2:17.3 M3:16.6 M4:8.3
Single line stops M1:24 M2:24 M3:27 M4:14
Single line avg. distance (km) M1:0.75 M2:0.75 M3:0.65 M4:0.65
Total track length (km) 33.3
Total network stops 48
Avg. stop net distance (km) 0.7
Type steel wheels
Current/Voltage 600 V DC overhead
Type of guide/gauge metric gauge rails (1000 mm)
Vehicles builder LA BRUGEOISE ET NIVELLES
Model LRV
Operator TEC CHARLEROI
| (last modified February 19, 2017 ) |
This image is shown smaller (800 x 584 pixels) than its maximum size (1280 x 936 pixels)

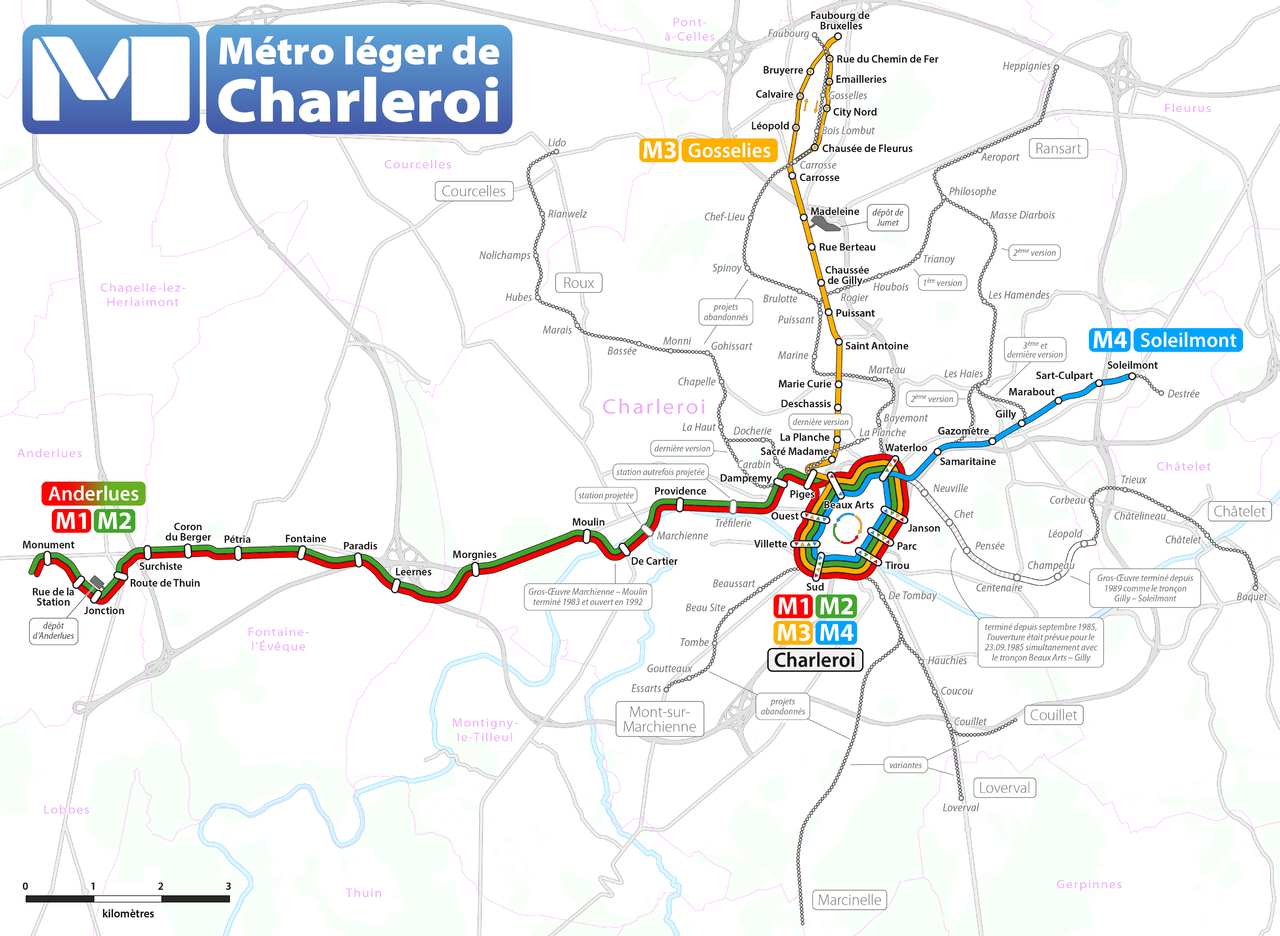

Please click on the map to enlarge it to its maximum size metro - charleroi; By Maximilian Dorrbecker (Chumwa) [CC BY-SA 2.0 (http://creativecommons.org/licenses/by-sa/2.0)], via Wikimedia Commons
|
