DESCRIPTION
Prague metro system is articulated in 3 lines, with the typical eastern European scheme (3 radial lines forming a triangle in the city centre, with 3 interchange stops at the vertices); the decision in favor of a full metro instead of a premetro system was assumed only during the first phase of the construction works (years '60s).
The current Line C was the first to be opened in 1974 (Florenc-Kacerov) and it was extended in 1980 (Kacerov-Haje November), 1984 (Florenc-Nadrazi Holesovice), 2004 (Nadrazi Holesovice-Ladvi) and 2008: (Ladvi-Letnany).
The current Line A opened in 1978 (Dejvicka-Namesti Miru) and it was extended in 1980 (Namesti Miru-Zelivskeho), 1987 (Zelivskeho-Strasnicka), 1990 (Strasnicka-Skalka), 2006 (Skalka-Depo Hostivar) and 2015 (Dejvicka-Nemocnice Motol).
The current Line B was the last to be opened in 1985 (Florenc-Smichovske Nadrazia); it was extended in 1988 (Smichovske Nadrazi-Nove Butovice), 1990 (Florenc-Ceskomoravska), 1994 (Nove Butovice-Zlicin) and 1998 (Ceskomoravska-Cerny Most).
(last modified February 19, 2017 )
HISTORY
datesection nameline
12-08-1978Dejvicka-Namesti MiruLine A
19-12-1980Namesti Miru-ZelivskehoLine A
11-11-1987Zelivskeho-StrasnickaLine A
04-11-1990Strasnicka-SkalkaLine A
26-05-2006Skalka-Depo HostivarLine A
06-04-2015Dejvicka-Nemocnice MotolLine A
02-11-1985Florenc-Smichovske NadraziLine B
26-10-1988Smichovske Nadrazi-Nove ButoviceLine B
22-11-1990Florenc-CeskomoravskaLine B
11-11-1994Nove Butovice-ZlicinLine B
08-11-1998Ceskomoravska-Cerny MostLine B
15-10-1999Hloubetin stopLine B
08-06-2001Kolbenova stopLine B
09-05-1974Florenc-KacerovLine C
11-11-1980Kacerov-HajeLine C
03-11-1984Florenc-Nadrazi HolesoviceLine C
26-06-2004Nadrazi Holesovice-LadviLine C
08-05-2008Ladvi-LetnanyLine C
(last modified February 19, 2017 )
TECHNICAL DATA
Under construction sections:
--
Single line length (Km)
Line A:17.1
Line B:25.7
Line C:22.4
Single line stops
Line A:17
Line B:24
Line C:20
Avg. distange (km)
Line A:1.1
Line B:1.1
Line C:1.2
Total track length (km)
65.2
Total network stops
58
Avg. stop net distance (km)
1.1
Type
steel wheels
Current/Voltage
750 V DC from third rail
Type of guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
METROWAGONMASH-SKODA TRANSPORTATION;BOMBARDIER-SIEMENS
Model
METROWAGONMASH:81-71M;BOMBARDIER-SIEMENS: M1
Operator
DOPRAVNI PODNIK HL. M. PRAHY
(last modified February 19, 2017 )

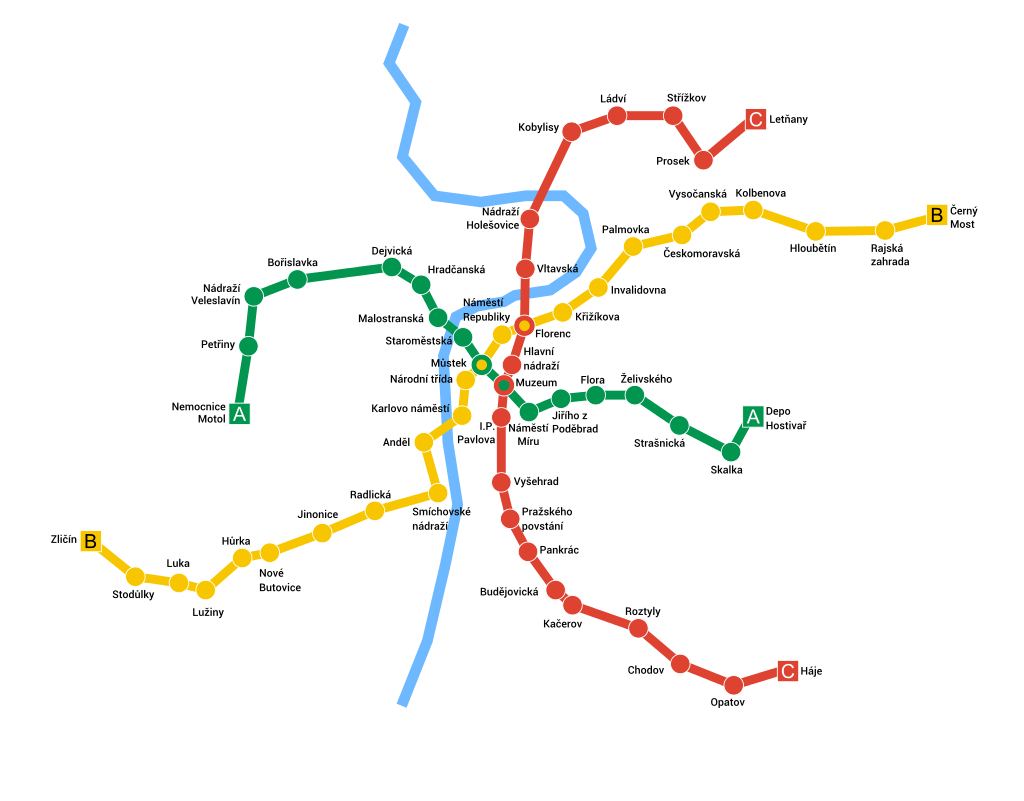

This image is shown smaller (800 x 625 pixels) than its maximum size (1024 x 801 pixels)
Please click on the map to enlarge it to its maximum size


metro - prague; By Zirland (Own work) [CC BY-SA 4.0 (http://creativecommons.org/licenses/by-sa/4.0)], via Wikimedia Commons
