DESCRIPTION
Palma light metro system is articulated in 2 lines: M1 (from UIB to Pl. d'Espanya/Estaciò Intermodal), M2 (from Marratxi to Pl. d'Espanya/Estaciò Intermodal), M1 and M2 share a common section (Son Costa/Son Fontesa-Pl. d'Espanya/Estaciò Intermodal).
The first line (M1) opened on 25 April 2007 (line M1: Plaza de Espana-UIB/Universitat de les Illes Balears); it was extended in 2013 (Pl. d'Espanya-Marratxi). M1 connects Pl. d'Espanya/Estaciò Intermodal (an intermodal stop, which is located close to the railway station and to the main bus terminal) with the university campus UIB (Universitat de les Illes Balears), passing through the city centre; UIB and Son Sardina stops (the latter located inside an old and fashinating downtown area) are the only ones to be ground level.
M2 derives from a former railway line that was bundled in to the metro's service in 2013.
(last modified February 19, 2017 )
HISTORY
datesection nameline
25-04-2007Plaza de Espana-UIB/Universitat de les Illes BalearsM1
24-09-2007temporaneous closureM1
28-07-2008re-opening of the lineM1
13-03-2013Pl. d'Espanya-MarratxíM2
16-06-2014Son Cladera/Es Vivero stopM2
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
M1:7.2
M2:8.4
Single line stops
M1:9
M2:9
Single line avg. distance (km)
M1:0.8
M2:1.05
Total track length (km)
15.6
Total network stops
15
Avg. stop net distance (km)
1.1
Type
steel wheels
Current/Voltage
1500 V DC
Guide/gauge
metric gauge rails (1000 mm)
Vehicles builder
CAF
Model
serie 71,serie 81
Operator
SERVEIS FERROVIARIS DE MALLORCA (SFM)
(last modified February 19, 2017 )

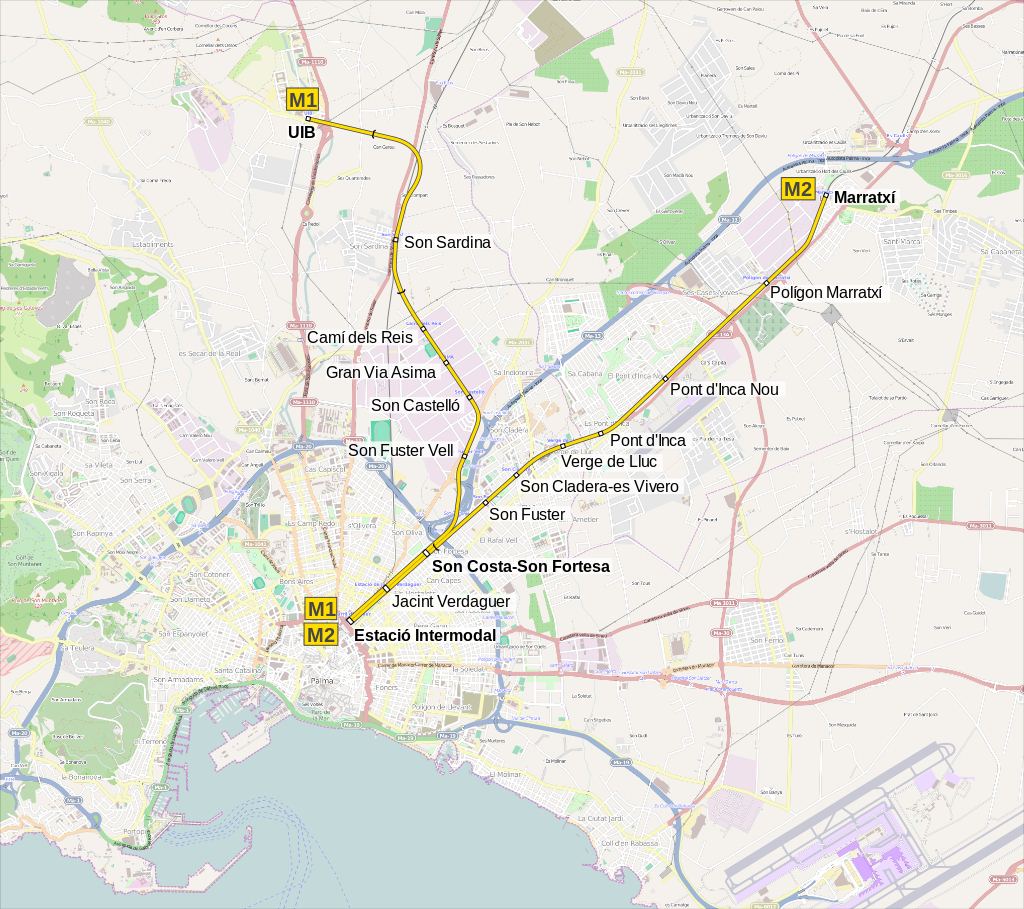

This image is shown smaller (800 x 708 pixels) than its maximum size (1024 x 909 pixels)
Please click on the map to enlarge it to its maximum size


metro - palma; By Friedrichstrasse [CC BY-SA 4.0 (http://creativecommons.org/licenses/by-sa/4.0)], via Wikimedia Commons
report an error

search a city

LATEST UPDATES TO THIS SITE
apm19-02-2017
lrt-tram02-03-2017
metro19-02-2017
funicular20-02-2017
news20-02-2017

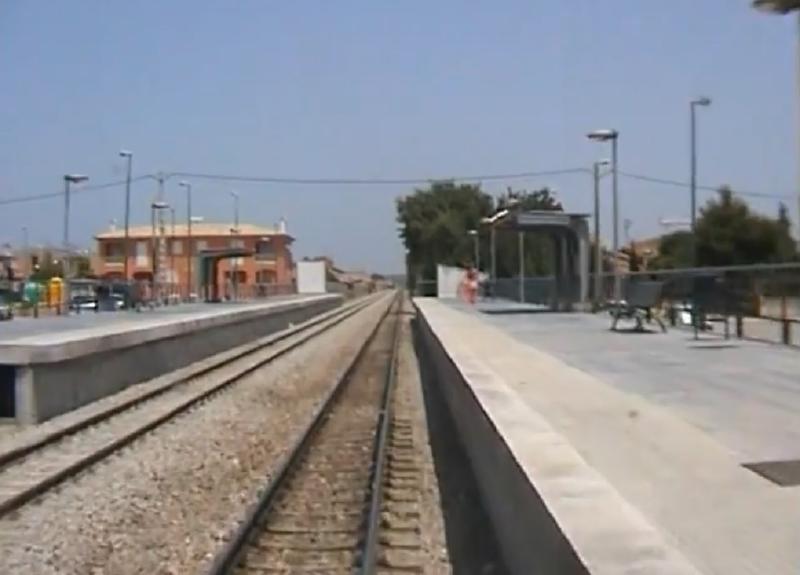

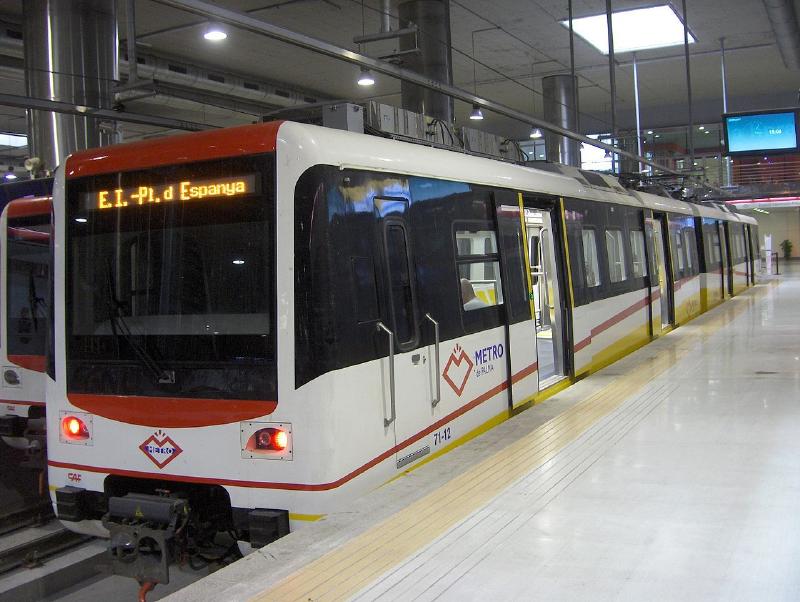

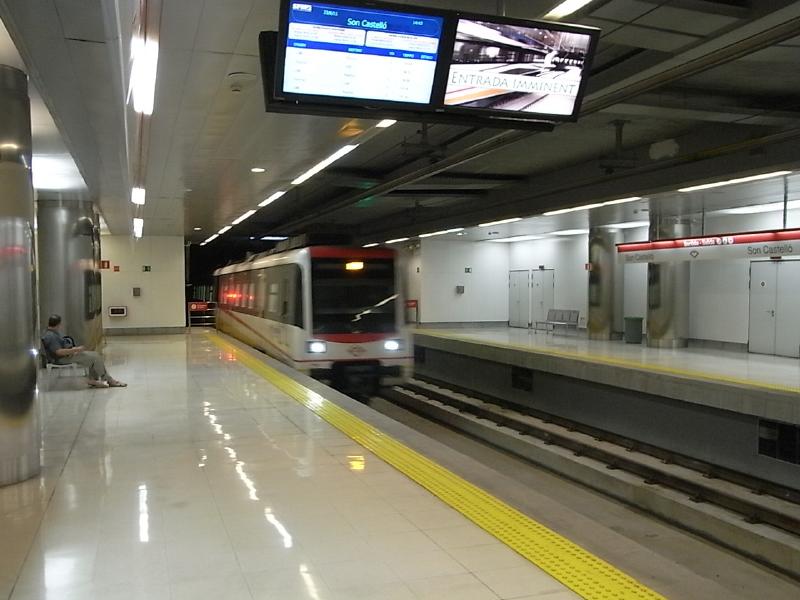

METRO Palma PHOTO
pictures found on server: 3
click on a picture to enlarge it
