Minsk [metro]
Country: Belarus
Line: Line 1 (Moskovskaya), Line 2 (Avtozavodskaya)
Inhabitants: City 1900000, District 2100000

DESCRIPTION
Minsk has been the eighth Soviet town provided with an underground metro system. Metro plans where approved after that Minsk population overtook 1 million of inhabitants during years '50s and '60s; works started in 1977.
Minsk first metro line (Line 1/Moskovskaya) opened in 1984 running from Institut Kultury to Moskovskaya. The initial section was extended in 1986 (Moskovskaya-Vostok), 2007 (Vostok-Uruchye), 2012 (Institut Kultury-Petrovshchina) and 2014 (Petrovshchina-Malinovka).
The second metro line (Line 2/Avtozavodskaya) opened in 1990 running from from Traktorniy Zavod to Frunzenskaya. During years '90s (despite the Soviet crisis and thanks to the autonomy achieved by Belarus) Avtozavodskaya was extended two times: in 1995 (Frunzenskaya-Pushkinskaya) and 1997 (Traktorniy Zavod-Avtozavodskaya). Further extensions were completed in 2001 (Avtozavodskaya-Mogilyovskaya) and 2005 (Pushkinskaya-Kamennaya Gorka).
Moskovskaya and Avtozavodskaya interchange at Oktyabrskaya/Kupalovskaya stop (in the city centre).

(last modified February 19, 2017 )

HISTORY

date	section name	line

26-06-1984	Institut Kultury-Moskovskaya	Line 1/Moskovskaya
30-12-1986	Moskovskaya-Vostok	Line 1/Moskovskaya
07-11-2007	Vostok-Uruchye	Line 1/Moskovskaya
07-11-2012	Institut Kultury - Petrovshchina	Line 1/Moskovskaya
03-06-2014	Petrovshchina-Malinovka	Line 1/Moskovskaya
31-12-1990	Traktorniy Zavod-Frunzenskaya	Line 2/Avtozavodskaya
1991	Pervomayskaya stop	Line 2/Avtozavodskaya
03-07-1995	Frunzenskaya-Pushkinskaya	Line 2/Avtozavodskaya
07-11-1997	Traktorniy Zavod-Avtozavodskaya	Line 2/Avtozavodskaya
05-09-2001	Avtozavodskaya-Mogilyovskaya	Line 2/Avtozavodskaya
07-11-2005	Pushkinskaya-Kamennaya Gorka	Line 2/Avtozavodskaya

(last modified February 19, 2017 )

TECHNICAL DATA
Single line length (Km)
Line 1:19.1
Line 2:18.1
Single line stops
Line 1:15
Line 2:14
Single line avg. distance (km)
Line 1:1.4
Line 2:1.4
Total track length (km)
37.2
Total network stops
29
Avg. stop net distance (km)
1.3
Type
steel wheels
Current/Voltage
825 V DC by third rail
Type of guide/gauge
1524 mm gauge rails
Vehicles builder
VAGONMASH, METROWAGONMASH
Model
81-717/714,81-717.5M/714.5M
Operator
MINSK METRO

(last modified February 19, 2017 )

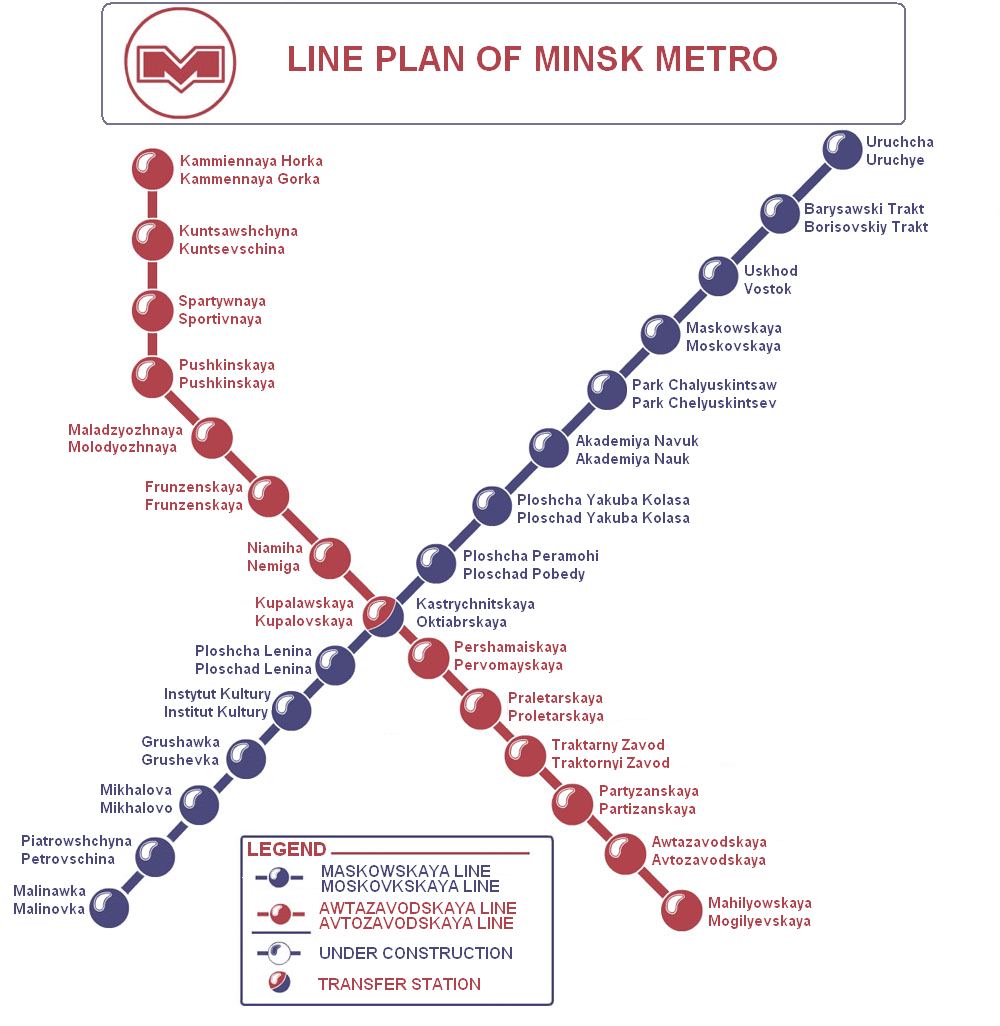

This image is shown smaller (800 x 825 pixels) than its maximum size (1000 x 1026 pixels)
Please click on the map to enlarge it to its maximum size
