DESCRIPTION
Naples metro network consists in 2 lines (Line 1 and Line 6) and it's integrated by 2 suburban underground railway lines (Line 2, Linea Arcobaleno: Napoli-Giugliano).
Line 1 opened in 1993 (Vanvitelli-Colli Aminei) and it was extended in 1995 (Colli Aminei-Piscinola) 2001 (Vanvitelli-Museo), 2002 (Museo-Dante), 2011 (Dante-Università) and 2013 (Università-Garibaldi). Vanvitelli-Salvator Rosa section runs in a curved gallery (with an average vertical gradient of 5.5%).
Line 6 (light metro) connects the agglomerations of Fuorigrotta and Mergellina; its first section (Museo-Mergellina) opened in 2007. This line was built re-using part of the former infrastructures of the so-called Linea Tranviaria Rapida (LRT line) which had to be opened in occasion of Italia '90 Football Worldcup but was never completed.
Line 2 (15 km, 12 stops) isn't a properly said metro line, being a suburban underground railway track passing through the city; it was opened in 1925 and electrified in 1935. Line 2 interchanges with Line 1 (at Museo/Piazza Cavour and at Garibaldi) and with Line 6 (at Mostra and Mergellina stops).
Linea Arcobaleno (Napoli-Giugliano-Aversa) is another suburban underground railway track (10.5 km, 5 stops) connecting part of the the northern territory of Naples metropolitan area. It interchanges with metro Line 1 at Piscinola stop.
(last modified February 19, 2017 )
HISTORY
datesection nameline
28-03-1993Vanvitelli-Colli AmineiLine 1
19-07-1995Colli Aminei-PiscinolaLine 1
14-04-2001Vanvitelli-MuseoLine 1
27-03-2002Museo-DanteLine 1
05-07-2003Materdei intermediate stopLine 1
26-03-2011Dante-UniversitàLine 1
17-09-2012Toledo intermediate stopLine 1
31-12-2013Università-GaribaldiLine 1
02-06-2015Municipio intermediate stopLine 1
04-02-2007Musei-MergellinaLine 6
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
Line 1:18
Line 6:2.3
Single line stops
Line 1:19
Line 6:4
Single line avg. distance (km)
Line 1:1.0
Line 6:0.8
Total track length (km)
20.3
Total network stops
23
Avg. stop net distance (km)
0.90
Type
steel wheels
Current/Voltage
Line 1:1500 V DC overhead
Line 6:750 V DC overhead
Guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
Line 1:OFFICINE FIORE/ANSALDO
Line 6:ANSALDO
Model
Line 1:--
Line 6:MN L.6
Operator
AZIENDA NAPOLETANA MOBILITA' (ANM)
(last modified February 19, 2017 )

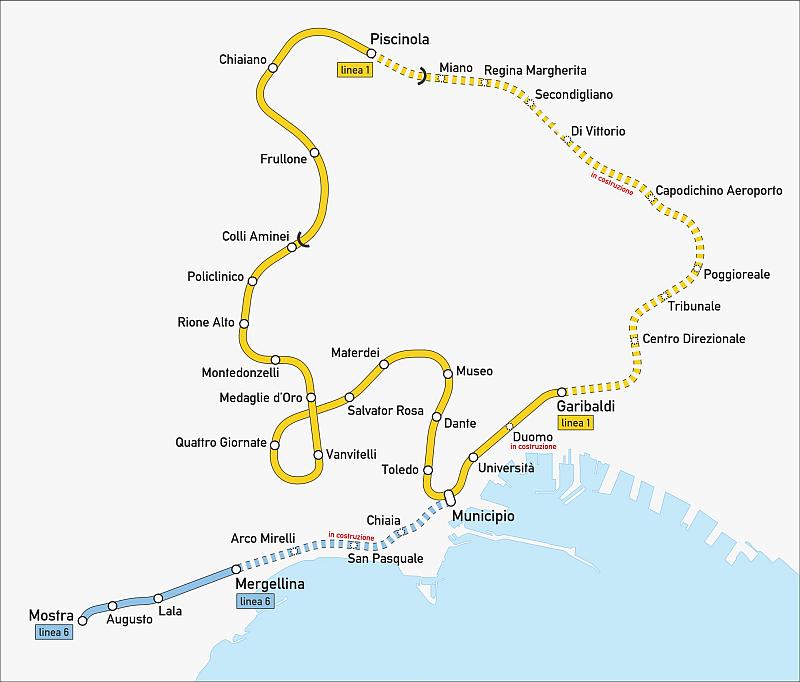

this map is shown here at its maximum resolution (800 x 682)


metro - naples; By Friedrichstrasse (Own work) [CC BY-SA 4.0 (http://creativecommons.org/licenses/by-sa/4.0)], via Wikimedia Commons
