Official Logo | Kharkiv [metro] Country: Ukraine
Line: Line 1 (Kholodnohirsko-Zavodska Line), Line 2 (Saltivska Line), Line 3 (Oleksiivska Line)
Inhabitants: City 1465000, District 1675000
|
DESCRIPTION Plans for a metro system in Kharkiv have been considered since the beginning of XX century; however they couldn't be completely developed after 1934 (that time the capital moved from Kharkiv to Kiev) and they were furthermore delayed by the world war II and its heavy damages. Metro plans were recovered only during years '60s, when a remarkable demographic growt brought the old surface tram network near to the saturation.
Kholodnogorsko-Zavodskaya line (now simply named Kholodnogorskaya or Line 1) opened in 1975, after 7 years of works; Line 1 was extended in 1978.
In two decades, the first line was followed by other two lines (Saltovskaya or Line 2: opened in 1984, extended in 1986; Alekseevskaya or Line 3: opened in 1995, extended in 2010 and 2016) giving the network its current asset (a typhical eastern Europe metro morphology: radial lines forming a ring around the city centre).
(last modified February 19, 2017 )
HISTORYdate | section name | line | | 23-08-1975 | Kholodna Hora-Moskovskyi Prospekt | Line 1/Kholodnohirsko-Zavodska Line | 11-08-1978 | Marshala Zhukova-Proletarska | Line 1/Kholodnohirsko-Zavodska Line | 11-08-1984 | Istorychnyi Muzey-Barabashova | Line 2/Saltivska Line | 26-10-1986 | Barabashova-Heroiv Pratsi | Line 2/Saltivska Line | 06-05-1995 | Metrobudivnykiv-Naukova | Line 3/Oleksiivska Line | 21-08-2004 | Naukova-23 Serpnia | Line 3/Oleksiivska Line | 21-12-2010 | 23 Serpnia-Oleksiivska | Line 3/Oleksiivska Line | 2014 | Peremoha stop | Line 3/Oleksiivska Line | 25-08-2016 | Oleksiivska-Peremoha | Line 3/Oleksiivska Line |
(last modified February 19, 2017 )
| TECHNICAL DATA Single line length (Km) Line 1:17.3 Line 2:10.2 Line 3:11
Single line stops Line 1:13 Line 2:8 Line 3:9
Single line avg. distance (km) Line 1:1.4 Line 2:1.4 Line 3:1.4
Total track length (km) 38.5
Total network stops 30
Avg. stop net distance (km) 1.3
Type steel wheels
Current/Voltage 825 V DC from third rail
Guide/gauge 1524 mm gauge rails
Vehicles builder VAGONMASH
Model Line 1:81-714/717,EM-508T,Ex3 Line 2:81-714/717 Line 3:81-714/717,81-718/719
Operator --
| (last modified February 19, 2017 ) |

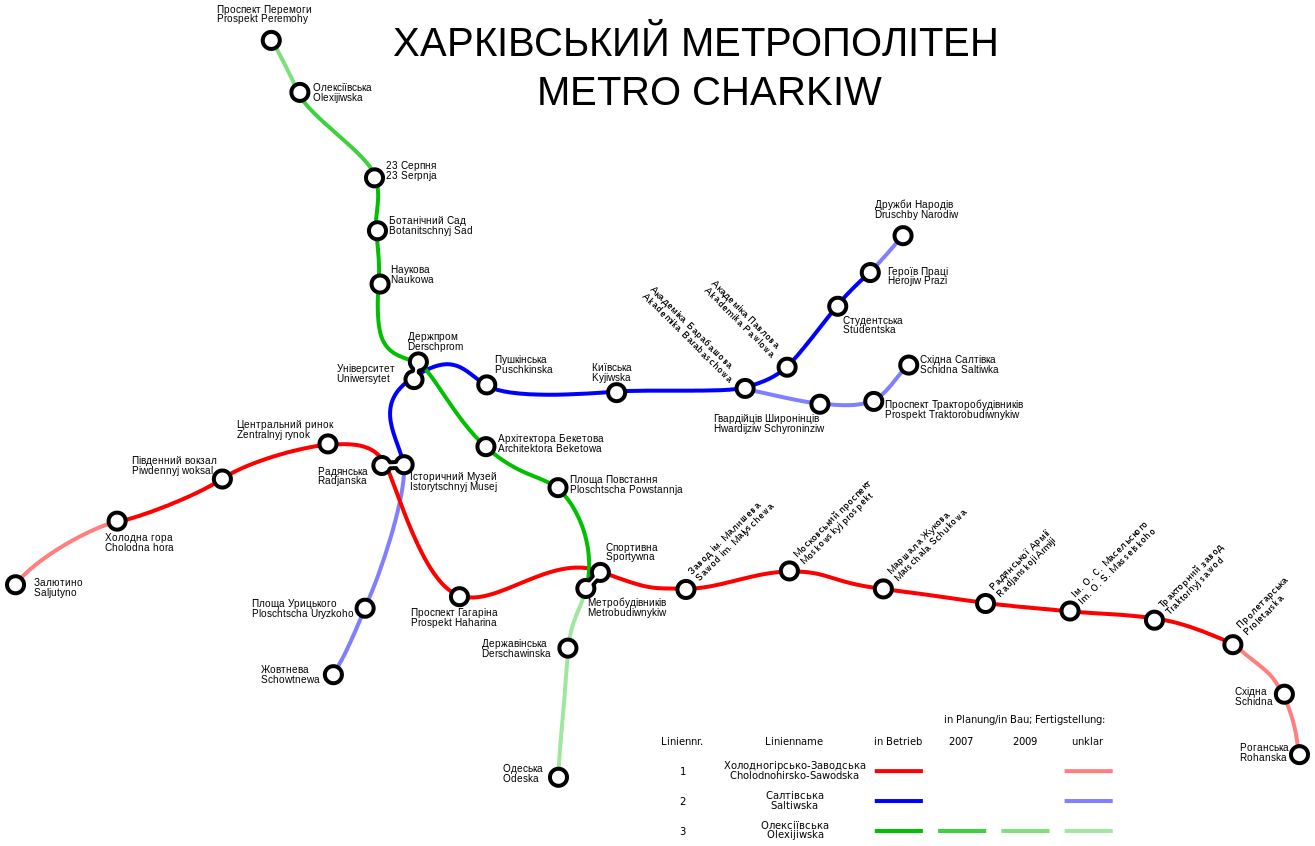

This image is shown smaller (800 x 516 pixels) than its maximum size (1315 x 846 pixels)
Please click on the map to enlarge it to its maximum size metro - kharkiv; By L.m.k (Own work) [GFDL (http://www.gnu.org/copyleft/fdl.html), CC-BY-SA-3.0 (http://creativecommons.org/licenses/by-sa/3.0/) or CC BY-SA 2.5-2.0-1.0 (http://creativecommons.org/licenses/by-sa/2.5-2.0-1.0)], via Wikimedia Commons
|
|
