DESCRIPTION
Milan bases its public transport network on 3 heavy metro lines, integrated by ground level trams and modern LRT lines.

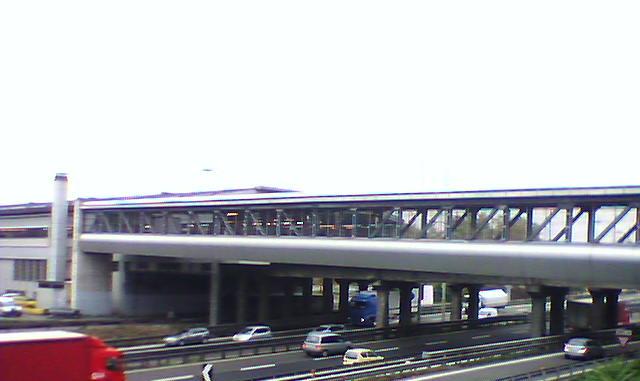

In addition to these main lines, there's also a complementary cable people-mover connecting S. Raffaele Hospital with metro M2 (Cascina Gobba stop), in the north-eastern part of the town. This automated single track people-mover (total track length: 700 m) is strictly integrated with metro M2 thanks to a direct footway (above the motorway) connecting the two systems. Both of the 2 stops (Cascina Gobba - ground level - and S. Raffaele -underground -) are located close to parking facilities, offering interesting modal interchange (metro/car) opportunities.
(last modified February 19, 2017 )
HISTORY
datesection nameline
12-07-1999San Raffaele-Cascina GobbaMeLA
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
--
Single line stops
--
Single line avg. distance (km)
--
Total track length (km)
0.68
Total network stops
2
Avg. stop net distance (km)
0.68
Type
rubber tyres (fixed grip cabins)
Current/Voltage
cable moved by an electric winch (MT)
Type of guide/gauge
-- mm gauge rails (Note: single rail track)
Vehicles builder
POMA
Model
--
Operator
AZIENDA TRASPORTI MILANESI (ATM)
(last modified February 19, 2017 )

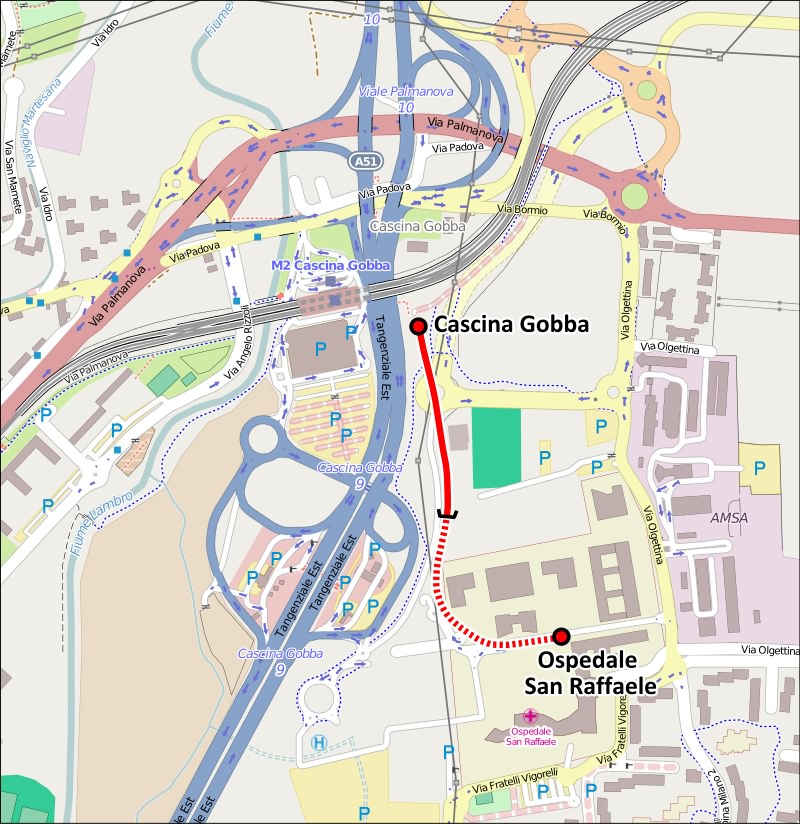

this map is shown here at its maximum resolution (800 x 824)


apm - milan; By Friedrichstrasse (openstreetmap.org) [ODbL (http://opendatacommons.org/licenses/odbl/1.0/) or CC BY-SA 2.0 (http://creativecommons.org/licenses/by-sa/2.0)], via Wikimedia Commons
