DESCRIPTION

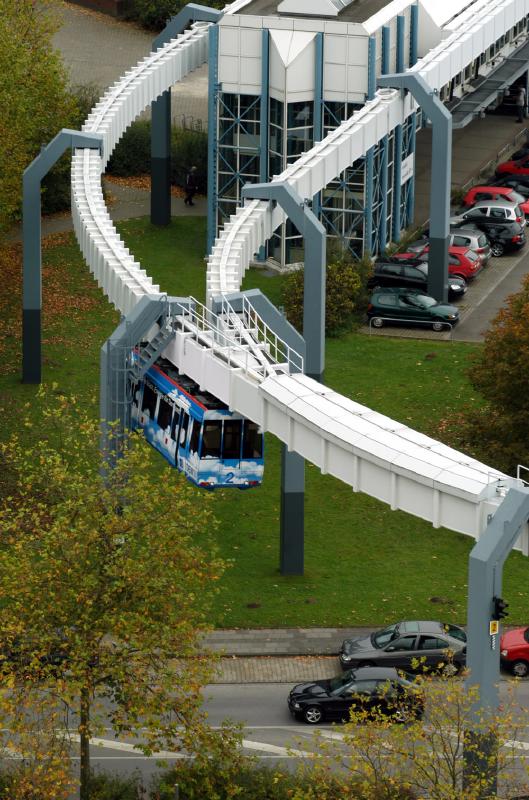

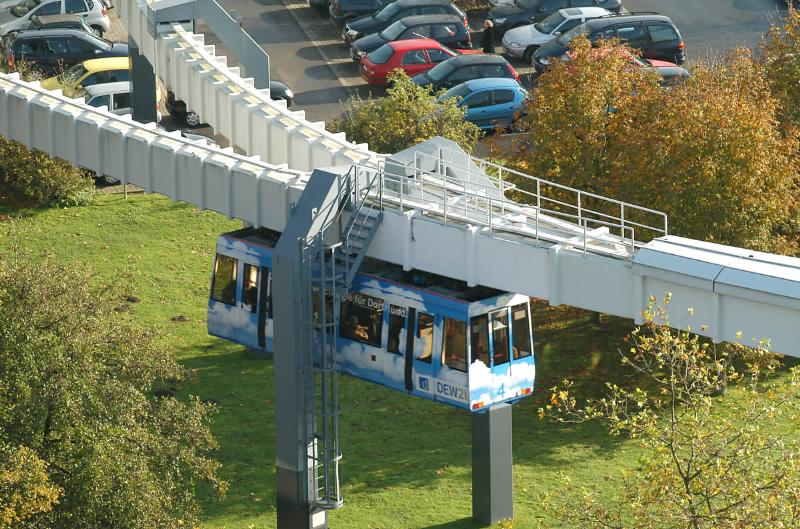

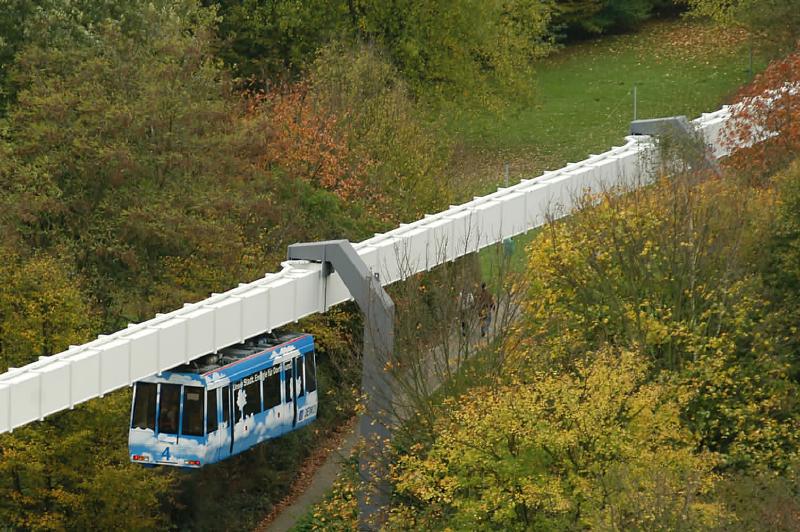

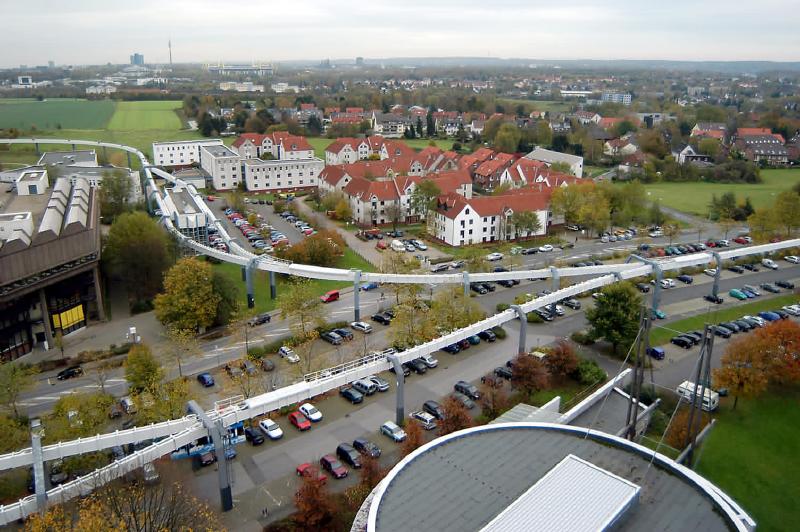

A suspended monorail system (the so-called H-Bahn, SAFEGE monorail type) opened in Dortmund in 1984. This system is articulated in 2 lines: the first one connects Eichlinghofen district with Technologiezentrum (with an intermediate stop at Do-Universitat, where H-Bahn interchanges with Bochum-Dusseldorf suburban railway line), the second one connects the 2 university campus (Campus North, Campus South) mostly running along the same alignement of the first line. H-Bahn system is completely driverless.
(last modified February 19, 2017 )
HISTORY
datesection nameline
02-05-1984Campus Nord-Campus SudH-Bahn
1993Campus Sud-Eichlinghofen;Campus Nord-TechnologiezentrumH-Bahn
(last modified February 19, 2017 )
TECHNICAL DATA
Single line length (Km)
--
Single line stops
--
Single line avg. distance (km)
--
Total track length (km)
3
Total network stops
5
Avg. stop net distance (km)
0.75
Type
dual axle rubber wheels
Current/Voltage
400 V AC
Type of guide/gauge

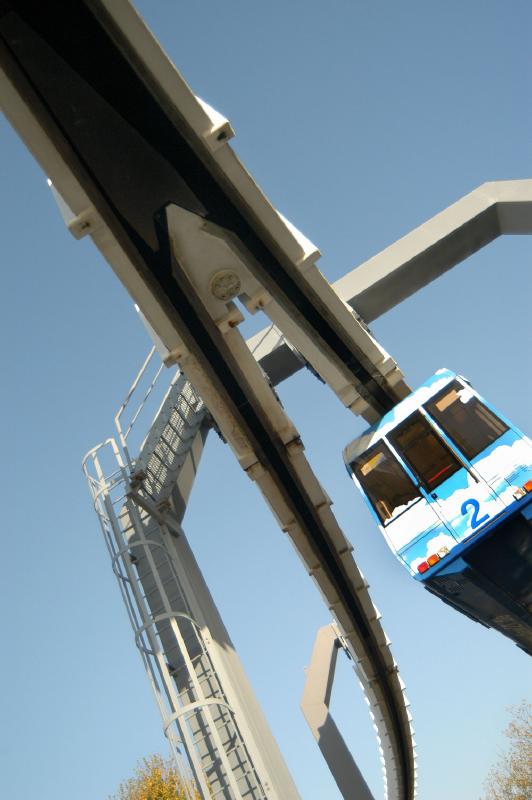

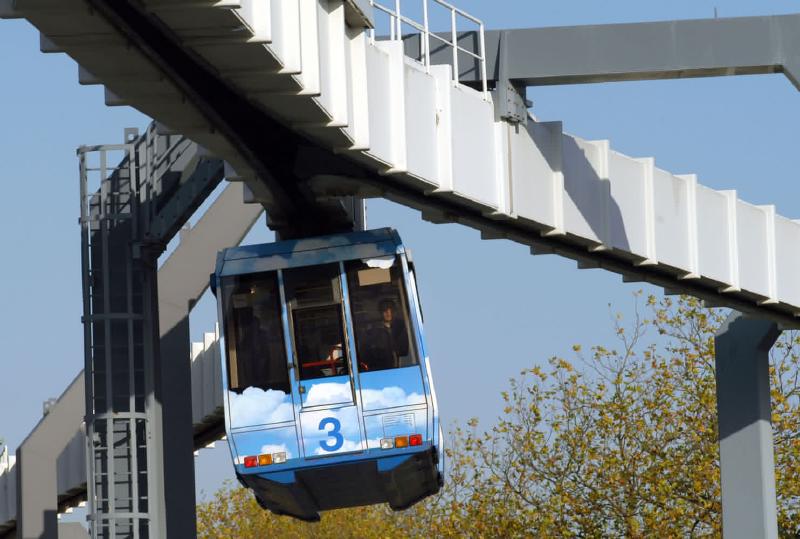

suspended steel-box monorail (SAFEGE type)
Vehicles builder
SIEMENS
Model
Siemens People Mover (SIPEM) type
Operator
DORTMUNDER ENERGIE UND WASSERVERSORGUNG GMBH (DEW21)
(last modified February 19, 2017 )

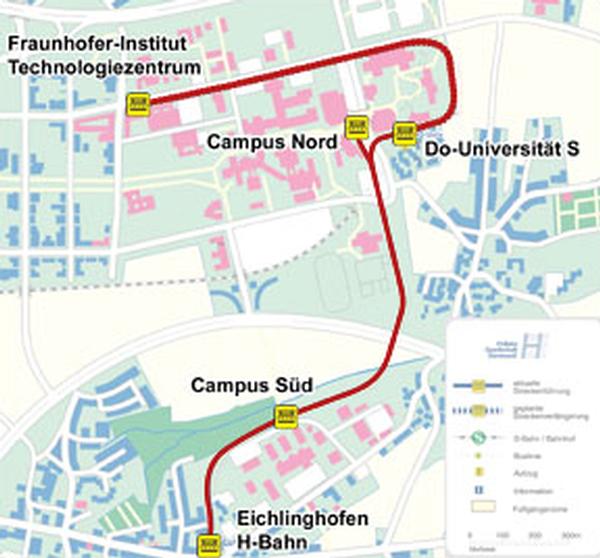

this map is shown here at its maximum resolution (600 x 558)


apm - dortmund; By H-BAHN 21
