please, hold the mouse on the logo | Frankfurt Airport [apm]
Country: Germany
Line: SkyLine [Frankfurt Main Airport]
Inhabitants: City 640000, District 1900000
|
DESCRIPTION
A new link between Terminals 1 (Gate A, Gate B) and 2 (Gates D/E) was realized at Frankfurt Airport, after the construction of a second airport terminal. This fully automated transport system adopts Bombardier CX-100 technology.
The 3.8 km track was opened in 1994 and it was expanded in 1996 in order to allow a future possible extension, which could involve Terminal 1 Gate C (interchanging with railways) and the future Terminal 3.
(last modified February 19, 2017 )
HISTORY| date | section name | line | | | 1994 | Station A-Station D&E | SkyLine | | 1996 | Station A reconfiguration | SkyLine |
(last modified February 19, 2017 )
| TECHNICAL DATA
Single line length (Km)
--
Single line stops
--
Single line avg. distance (km)
--
Total track length (km)
3.8
Total network stops
3
Avg. stop net distance (km)
1.9
Type
rubber tyres
Current/Voltage
--
Type of guide/gauge
concrete lane with single central guidance
Vehicles builder
BOMBARDIER
Model
CX-100
Operator
FLUGHAFEN FRANKFURT AM MAIN
|
(last modified February 19, 2017 ) |

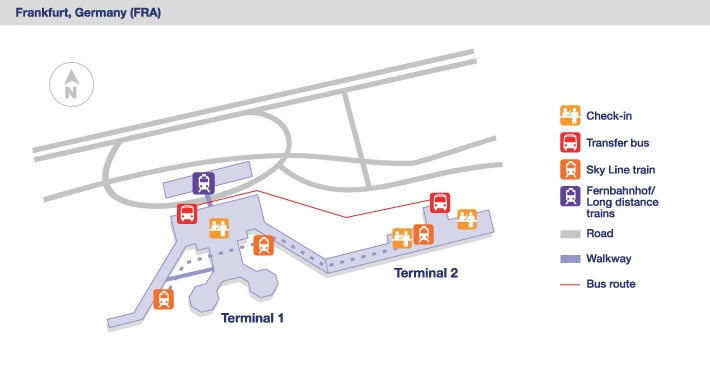

this map is shown here at its maximum resolution (710 x 366)
apm - frankfurt airport; Source: it.oneworld.com (see "Mappe dei terminal" section)
|
|
